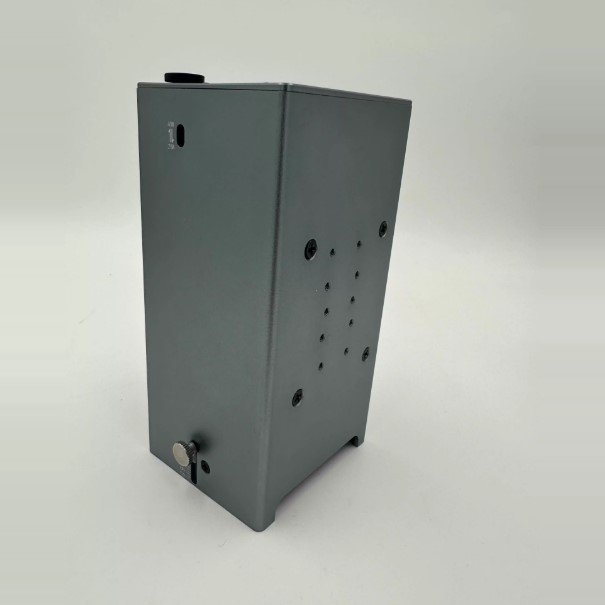

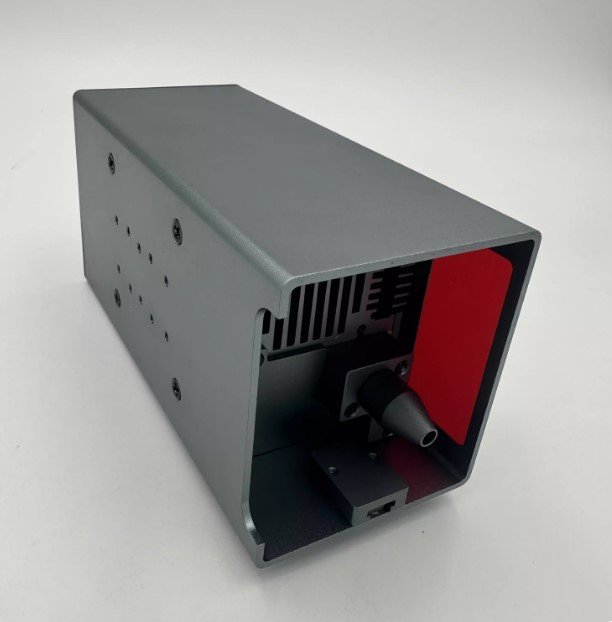

180W Engraving & Cutting Laser Head Overview
Introducing the NICHIA 450nm / 455nm 40W High Power Blue Laser Module with Air Assist, designed for precise engraving and cutting. Equipped with dual cooling fans and an air-assist nozzle, it ensures clean cuts, minimal burn marks, and extended diode lifespan. Its robust aluminum alloy housing (6063, sandblasted & black anodized) offers superior durability and heat dissipation.
Technical Specifications
| Item | Specification |
|---|---|
| Dimensions | 71 × 62 × 142 mm |
| Interface | 3 PIN DC MR3 |
| Cooling Method | Dual Cooling Fans |
| Material & Finish | Aluminum 6063, sandblasted & anodized (black) |
| Beam Spot Size | Rectangular 110 × 140 μm |
| Focal Distance | 8 mm |
| Control Mode | 0~5V PWM |
| Frequency Range | 100 Hz – 5 kHz |
| Operating Temperature | 0°C – 70°C |
| Storage Temperature | -40°C – 85°C |
| Service Life | 10,000 hours @25°C (decay <50%) |
Key Features
- High Optical Output: True 40W 450–455nm blue laser power for precision cutting.
- Air Assist Nozzle: Reduces carbonization and improves engraving quality.
- Efficient Cooling: Dual fan system ensures stable operation and long-term durability.
- Precision Beam: Rectangular 110 × 140 μm spot size, 8mm focal length for fine details.
- Industrial Design: CNC aluminum housing with black anodized finish.
- Flexible Control: 0–5V PWM, 100Hz–5kHz frequency range.
- Long Lifespan: Up to 10,000 hours of service life.
Applications
- Engraving on wood, bamboo, and leather
- Cutting acrylic and resin
- Surface marking on metals
- PCB prototyping and precision cutting
- Crystal and glass surface engraving
Warning
Professional use only. The laser driver is a high-power laser diode module. Improper use may result in serious injury or permanent eye damage. We are not responsible for damages caused by incorrect handling or installation.
