ACER H6810 projector color wheel | Genuine Replacement part

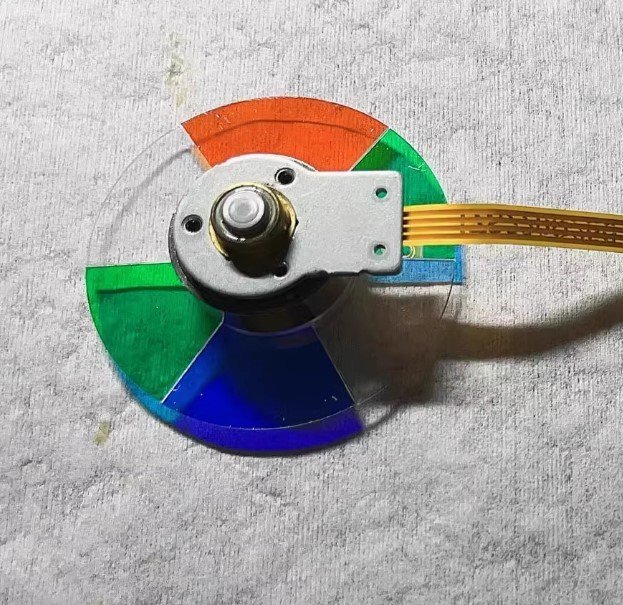

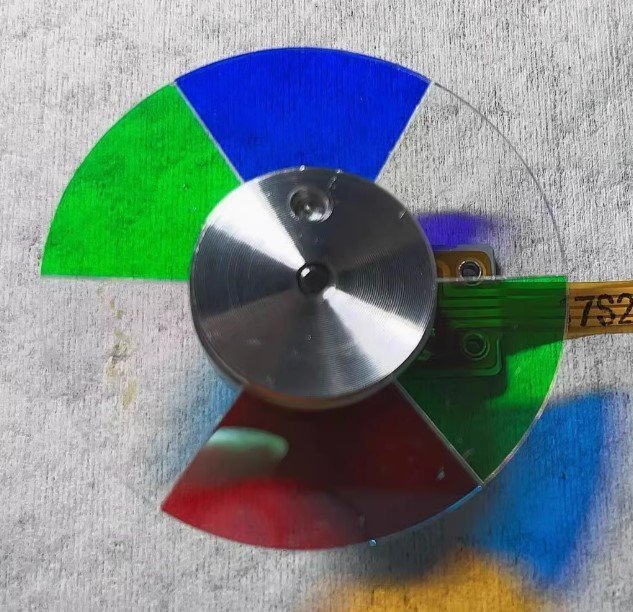

Acer H6810 Replacement Color Wheel  – Delta Motor, 6x Speed, RGWBGW 6‑Segment

Overview

This color wheel replacement is designed for the Acer H6810 DLP projector and related optical engine configurations. It is used in repair and maintenance scenarios where the original color wheel has failed due to bearing wear, dust contamination, or long-term high-speed operation fatigue.

The unit includes an Acer Authenticity Verification Barcode Label for part traceability. It features a 6‑segment RGWBGW configuration, which prioritizes brightness enhancement through multiple white segments while maintaining basic RGB color reproduction.

Technical Background (How This Part Works)

A DLP projector color wheel synchronizes color separation with the DMD chip at high rotational speeds. In the H6810 system, the RGWBGW segment sequence (Red, Green, White, Blue, Green, White) uses two white segments and two green segments to maximize luminous output and perceived brightness – a common design for home theater projectors that need to balance color performance with high lumen output.

The wheel is driven by a Delta high‑speed motor at 6x rotation speed, which helps reduce color breakup (rainbow effect) and ensures smooth, flicker‑free images.

Common Failure Symptoms in Real Repairs

• High-pitched spinning or ticking noise during startup (bearing wear)
• Random color shifting or incorrect RGB balance during projection
• Projector starts but shuts down after a few seconds (optical sync failure)
• Visible flickering or unusually strong rainbow effect

In field repairs, these symptoms are often traced back to mechanical imbalance or aging bearings inside the color wheel assembly.

Compatibility Notes

This part is designed specifically for Acer H6810. DLP optical engines may share similar assemblies across related models, but always verify:

• Connector type and mounting structure
• Wheel diameter and housing alignment
• Motor control signal compatibility

Important: Even small differences in RPM calibration or segment timing can cause color distortion or startup failure.

Technical Specifications

Why Color Wheels Fail Over Time

In long-term projector usage, color wheel failures are typically caused by mechanical and thermal stress rather than electronic failure.

• Bearing degradation due to continuous high-speed rotation
• Heat exposure inside sealed optical chambers
• Dust accumulation affecting balance and optical timing
• Long-term vibration leading to phase instability

Installation Notes

Replacement requires access to the projector’s optical engine. This process involves disassembly of sensitive optical components.

Professional installation is recommended because improper alignment may result in:

• Color misalignment or ghosting
• Startup failure due to sensor mismatch
• Excess vibration or noise

ESD protection and dust-free handling are strongly recommended during installation. A service manual may be available on request.

FAQ

Q: How do I confirm the color wheel is faulty?
A: Noise during startup combined with abnormal color output is the most common indicator. If the projector shuts down after a few seconds with a color wheel error, replacement is typically needed.

Q: Will this fix flickering or washed-out colors?
A: Yes, if the root cause is a worn or unbalanced color wheel. However, other optical issues (like a failing DMD or lamp) can produce similar symptoms – diagnostic verification is recommended.

Q: Does this part come with the authenticity barcode?
A: Yes, each unit includes the Acer Authenticity Verification Barcode Label for verification.

Shipping & Warranty

• Ships within 24‑72 hours
• Worldwide tracked delivery
• Anti‑static, shock‑resistant packaging
• 12‑month replacement warranty

✔ Restore bright, accurate colors on your Acer H6810
✔ Delta 6x motor + RGWBGW 6‑segment design
✔ Fast global shipping + 12‑month coverage

👉 Order your Acer H6810 color wheel replacement today – eliminate noise and color distortion
