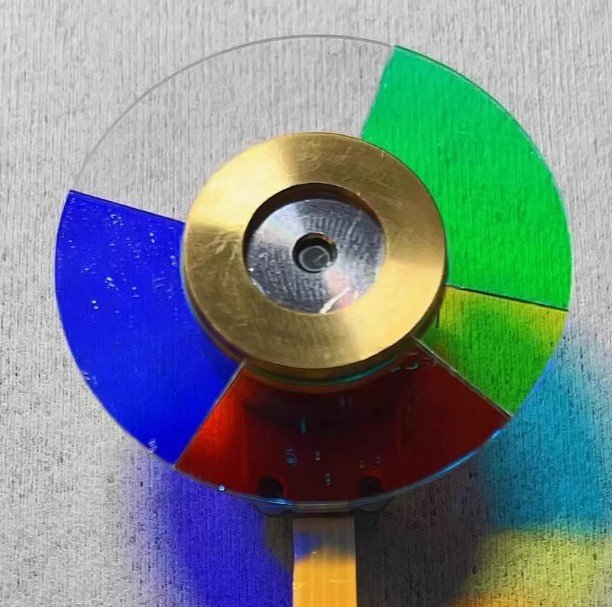

Acer P1383W Color Wheel Replacement – Nidec Motor, 4x Speed, RYGWB 5‑Segment
Overview
This color wheel replacement is designed for the Acer P1383W DLP projector and related optical engine configurations. It is used in repair and maintenance scenarios where the original color wheel has failed due to bearing wear, dust contamination, or long-term high-speed operation fatigue.
The unit includes an Acer Authenticity Verification Barcode Label for part traceability. It is built for RYGWB 5‑segment optical systems that balance brightness and color accuracy, commonly found in business and education projectors.
Technical Background (How This Part Works)
A DLP projector color wheel synchronizes color separation with the DMD chip at high rotational speeds. In the P1383W system, a 5‑segment RYGWB configuration (Red, Yellow, Green, White, Blue) is used. The white segment boosts overall lumen output for brighter presentations, while the yellow segment expands the color gamut in the red-green region. The absence of a separate cyan segment reduces cost while maintaining acceptable color performance for typical office environments.
The wheel is driven by a Nidec precision motor at 4x rotation speed, which provides reliable, quiet operation and helps minimize color breakup (rainbow effect).
Common Failure Symptoms in Real Repairs
- High-pitched spinning or ticking noise during startup (bearing wear)
- Random color shifting or incorrect RGB balance during projection
- Projector starts but shuts down after a few seconds (optical sync failure)
- Visible flickering or unusually strong rainbow effect
In field repairs, these symptoms are often traced back to mechanical imbalance or aging bearings inside the color wheel assembly.
Compatibility Notes
This part is designed specifically for Acer P1383W. DLP optical engines may share similar assemblies across related models, but always verify:
- Connector type and mounting structure
- Wheel diameter and housing alignment
- Motor control signal compatibility
Important: Even small differences in RPM calibration or segment timing can cause color distortion or startup failure.
Technical Specifications
| Model Compatibility | Acer P1383W (verify with other models before purchase) |
|---|---|
| Configuration | RYGWB 5-segment (Red, Yellow, Green, White, Blue) – white segment for brightness boost |
| Motor Type | Nidec precision motor |
| Speed | 4x high-speed DLP color wheel |
| Authentication | Acer Authenticity Verification Barcode Label included |
| Condition | Brand new, factory replacement |
| Lifespan | Up to 20,000+ hours (depending on environment) |
| Warranty | 12 months |
Why Color Wheels Fail Over Time
In long-term projector usage, color wheel failures are typically caused by mechanical and thermal stress rather than electronic failure.
- Bearing degradation due to continuous high-speed rotation
- Heat exposure inside sealed optical chambers
- Dust accumulation affecting balance and optical timing
- Long-term vibration leading to phase instability
Installation Notes
Replacement requires access to the projector’s optical engine. This process involves disassembly of sensitive optical components.
Professional installation is recommended because improper alignment may result in:
- Color misalignment or ghosting
- Startup failure due to sensor mismatch
- Excess vibration or noise
ESD protection and dust-free handling are strongly recommended during installation. A service manual may be available on request.
FAQ
Q: How do I confirm the color wheel is faulty?
A: Noise during startup combined with abnormal color output is the most common indicator. If the projector shuts down after a few seconds with a color wheel error, replacement is typically needed.
Q: Will this fix flickering or washed-out colors?
A: Yes, if the root cause is a worn or unbalanced color wheel. However, other optical issues (like a failing DMD or lamp) can produce similar symptoms – diagnostic verification is recommended.
Q: Does this part come with the authenticity barcode?
A: Yes, each unit includes the Acer Authenticity Verification Barcode Label for verification.
Shipping & Warranty
- Ships within 24‑72 hours
- Worldwide tracked delivery
- Anti‑static, shock‑resistant packaging
- 12‑month replacement warranty
✔ Restore bright, accurate colors on your Acer P1383W
✔ Nidec 4x motor + RYGWB 5‑segment design
✔ Fast global shipping + 12‑month coverage
👉 Order your Acer P1383W color wheel replacement today – eliminate noise and color distortion
