Original ACER X1261 Projector Color Wheel Replacement
So your ACER H6517ABD projector is acting up. Maybe it shuts down a few seconds after the lamp lights. Maybe it makes a grinding or whining noise that gets louder with bright scenes. Or maybe the colors look wrong – skin tones appear muddy, whites have a yellow tint, or you see constant rainbow flashes. Before you throw it out, know this: that’s almost always the color wheel.

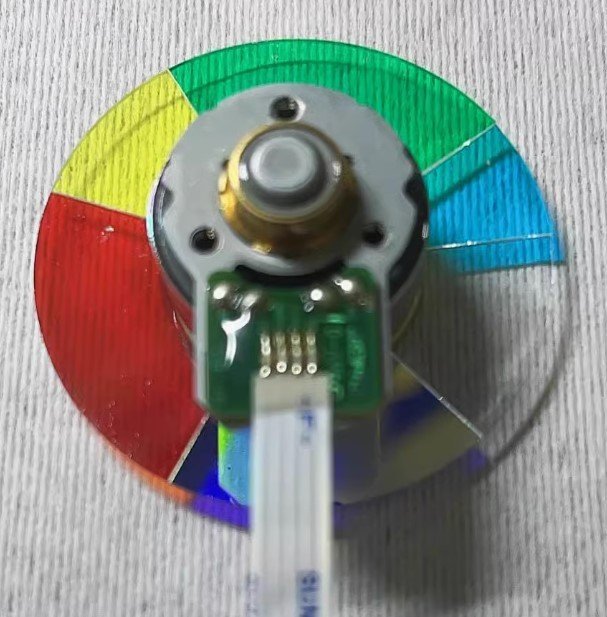

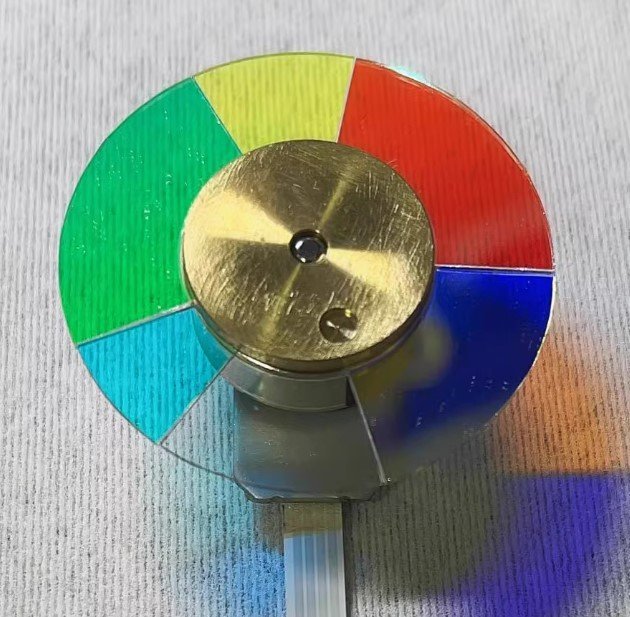

This is the genuine ACER H6517ABD projector color wheel. Not a refurbished pull from some other dead projector. Not a cheap copy with coatings that peel off after 50 hours. Factory fresh, 100% original ACER spare part, with the exact specs your H6517ABD needs: 5 segments, 4x speed, RYGWB sequence (Red, Yellow, Green, White, Blue).
| Compatible Models | ACER H6517ABD, ACER P6505 |
| Condition | Brand new, 100% Original & Genuine ACER Spare Part |
| Segment Configuration | 5 segments – RYGWB (Red, Yellow, Green, White, Blue) |
| Rotation Speed | 4x speed (balanced for brightness & rainbow reduction) |
| Motor | Nidec motor – high durability, low noise |
| Installation | Direct replacement – reuse original housing if needed |
Why the RYGWB sequence matters
ACER’s DLP timing on the H6517ABD and P6505 is specifically calibrated for the RYGWB color wheel sequence (Red, Yellow, Green, White, Blue). The white segment boosts brightness for presentations and well-lit rooms, while the yellow segment improves color saturation and skin tone accuracy. Using a different wheel (such as RGBRGB or RGBCMY) can cause startup failure, washed-out colors, or permanently incorrect white balance.
Common symptoms of a failing ACER H6517ABD color wheel
- Projector shuts down shortly after power‑on (often with a loud whine)
- Grinding or high‑pitched spinning noise
- Rainbow artifacts or flickering image
- Colors look dull, whites have a yellow/pink cast, or reds appear orange
Replacing the old unit with this genuine ACER H6517ABD color wheel restores proper operation, eliminates noise, and brings back accurate, bright colors – whether you’re watching movies or giving presentations.
Swapping the color wheel takes about 20 minutes if you’re comfortable opening a projector. The Nidec motor aligns perfectly with the original bracket, and the flex cable connects directly. Once installed, the fresh bearing eliminates noise, and the factory balance ensures smooth, stable operation.
Don’t scrap a good DLP chip and lamp. Replace the one part that actually wears out — and get back to crisp, bright projection in no time.
Tip: Match the segment pattern (RYGWB) and diameter with your old wheel. Contact us with a photo if unsure.
