Original Epson CB-L1200U Laser Driver Board Replacement

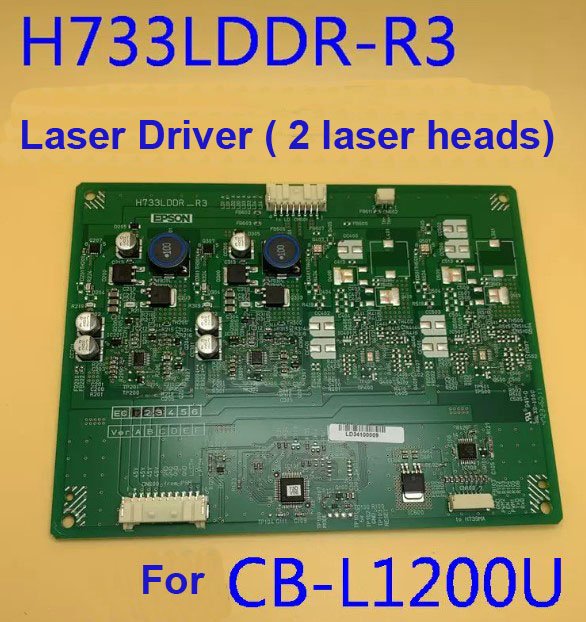

Genuine Epson laser driver board. This is a brand new, original Epson laser driver board (part number H733LDDR_R3) for the CB-L1200U high‑brightness laser projectors. The laser driver board controls the current and timing signals to the laser diodes. If your projector has laser related power issues, intermittent brightness, or fails to strike the laser array, this board is the correct factory replacement.
This board is not a refurbished pull. It is factory stock, with original Epson firmware and components. It is a direct mechanical and electrical replacement for the original board in supported models.
| Compatible Models | Epson CB‑L1200U |
|---|---|
| Part Number | H733LDDR_R3 (laser driver board) |
| Condition | Brand New – 100% Original Epson Spare Part |
| Included | Laser driver board only. Cables and mounting screws are reused from your original installation. |
Common signs of laser driver board failure
- Laser does not light – projector powers on, fans run, but no light output from the laser engine.
- Intermittent brightness or flickering – laser output varies or flashes unexpectedly.
- Uneven colour or brightness – one laser bank is not receiving correct current, causing colour imbalance.
- Error codes – projector displays laser module or driver related errors (e.g., “LD drive failure”).
- Projector shuts down during warm‑up – laser fails to stabilise and safety circuit trips.
Why the original Epson driver board matters
The H733LDDR_R3 is matched to the specific laser array in these high‑output Epson projectors. Generic or universal driver boards will not work – the timing and current profiles are unique to each model. This genuine board restores correct laser current control, protecting the laser diodes from over‑current and ensuring stable brightness over the life of the projector.
Installation notes
Laser safety – serious risk. This board connects directly to the laser diodes and capacitors that store high voltage even after the projector is unplugged. Only attempt replacement if you are trained in laser projector repair. The board is a direct swap:
- Remove the top cover and laser compartment shield.
- Discharge any residual charge as per the Epson service manual.
- Unplug all ribbon cables and wire harnesses from the old board.
- Unscrew the H733LDDR_R3 board and lift it out.
- Install the new board, reconnect all cables exactly as the original routing.
After replacement, some models may require a service reset or calibration using Epson’s service software. We do not provide the service manual or calibration tools.
Restore your large‑venue laser projector
CB‑L1715S, L1750U, L1755U and L25000U are very high value laser installation projectors (15,000+ lumens). Laser driver board failure is uncommon but not impossible. Replacing the driver board is far more economical than replacing the entire laser module or the projector itself. This genuine H733LDDR_R3 board brings your laser output back to factory specification.
Important: If you are not 100% sure this board matches your projector’s current board revision, send us a clear photo of your original board showing its part number. We can confirm compatibility before you order.
