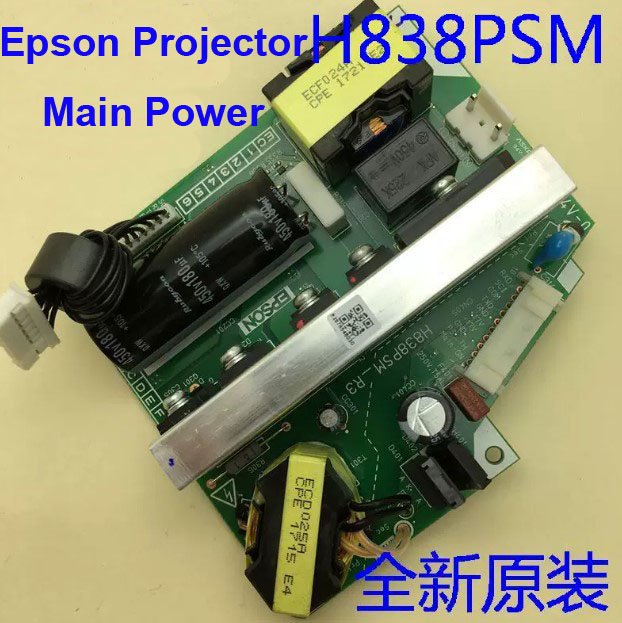

Epson H838PSM Power Supply Board – Genuine Replacement for CH‑TZ2100 / TW5400 / TW5600 / TW5650 / FH06
If your Epson CH‑TZ2100, TW5400, TW5600, TW5650, or FH06 projector won’t power on at all, fl ashes the power LED briefly and then goes dead, or shuts down randomly during use – the main power supply board is often the cause. This genuine Epson H838PSM power supply unit is the exact replacement that brings your home cinema projector back to life.
It’s not a refurbished pull from another projector and not a low‑cost imitation. Original Epson components, correct voltage rails, and proper isolation – exactly what your TW series expects. The board is labelled H838PSM; match it with your old one before ordering.
| Compatible Models | Epson CH‑TZ2100, EH‑TW5400, EH‑TW5600, EH‑TW5650, EH‑FH06 (also fits some regional variants – check your original board number) |
|---|---|
| Part Number | H838PSM (Epson service part) |
| Component Type | Main Power Supply Board / PSU (AC to DC converter for mainboard, lamp ballast, and cooling fans) |
| Condition | New, original Epson service part (not refurbished) |
| Installation | Direct replacement – original mounting holes and connectors (requires partial disassembly, service manual recommended) |
| Service Manual | Available upon request – ask for the download link for your specific model |
Why the power supply fails – and why you need the genuine H838PSM
After years of daily use or voltage fluctuations, the primary capacitors in the power supply degrade. Common failure points include the startup capacitor (no power at all) or the DC bus for the lamp ballast (lights up but shuts down when the lamp tries to ignite). A generic or universal power supply may fit the connectors but deliver incorrect voltage tolerances or lack proper surge protection. This original H838PSM is what Epson installed at the factory – it delivers clean, stable power to every board in your projector.
Common signs your power supply board needs replacement
- No power at all – projector is completely dead. No standby LED, no fan movement, nothing.
- Power LED flashes briefly then dies – you see a quick blink when plugging in, but the projector won’t stay on.
- Projector shuts down randomly – works for a few minutes or hours, then suddenly turns off. May restart later after cooling.
- Lamp won’t ignite but fans spin – the PSU provides power to the control board and fans, but the dedicated lamp rail is missing or unstable.
- Visible damage – bulging capacitors, burnt traces, or a burnt smell coming from the power supply area.
If your projector has the original power supply and is over 5‑7 years old, replacement is very often the fix. Don’t waste time troubleshooting mainboards or ballasts until you’ve ruled out the PSU.
Restore your TW / TZ series – not the whole projector
Swapping the H838PSM power supply is a medium‑difficulty repair. The board is accessible after removing the bottom cover and the lamp housing. Discharge the large capacitors before handling the old board. The new unit mounts with the original screws, and all connectors are keyed – they only fit one way. Once installed, your projector will power up normally, the lamp will ignite, and the image will be stable. No more random shut‑downs, no more dead silence when you press the power button. Keep your home cinema running for years.
Note: Always unplug the projector and wait at least 15 minutes for the capacitors to discharge before opening the case. Send us a photo of your original H838PSM board if you’re unsure about compatibility – some regional models use slightly different revisions.
