H585RA / H585LA LCD Panel & Assembly – For Epson TW9100W / TW9200 / 5030UB / TW7200 / TW9200W
The H585RA (Red/Blue) and H585LA (Green) are high‑quality 0.74‑inch HTPS LCD panels used in Epson’s premium 1080p home cinema projectors, including the EH‑TW9100W, CH‑TW9200, 5030UB, TW7200, and TW9200W. These panels feature C2Fine technology for high contrast and accurate color reproduction.
When these LCD panels degrade, symptoms include color casts (yellow/green/pink tint), uneven brightness, blurry patches, or a dim image that persists even after replacing the lamp – a well‑known issue in aging 3LCD optical blocks.
We offer two replacement options:
- Single LCD Panel (H585RA or H585LA) – Choose this if only one color channel has failed. Requires professional optical alignment (convergence) after installation. Not recommended for DIY beginners.

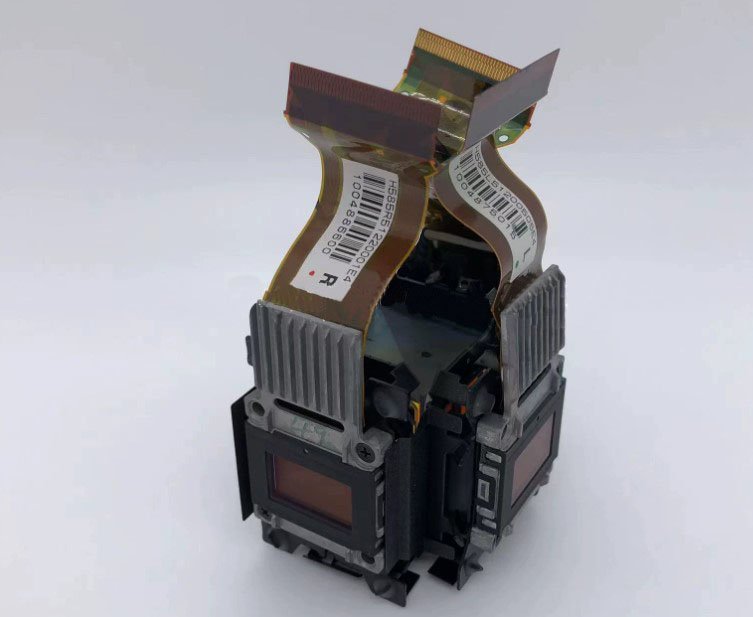

- Complete LCD Assembly (Prism + 3 Panels) – Includes all three panels (Red, Green, Blue) pre‑aligned on the prism block. Drop‑in replacement – no convergence adjustment needed. Ideal for quick, reliable restoration of original image quality.
If your Epson TW series projector suffers from persistent color or brightness issues, replacing the faulty LCD component – preferably the complete assembly – is the most cost‑effective solution.
Before ordering: Verify your projector model and the part numbers on your existing LCD panels or assembly. Send us a clear photo if you’re unsure – we will confirm compatibility for you.
