H710 LCD Panel / Assembly – For Epson TW Series Home Projectors
The H710 series LCD components are used in Epson’s high‑end 3LCD home theater projectors, including CH‑TW8300W, TW8400W, TW9300W, TW8200W, TW9200, and TW7400. These 0.74‑inch 4k Full HD HTPS panels with C2Fine technology deliver exceptional color accuracy and contrast.
Typical failure symptoms include color casts (yellow/green/pink tint), uneven brightness, blurry areas, or a dim image that a new lamp cannot fix – common in older 3LCD optical blocks due to polarizer degradation.
We offer two replacement options:

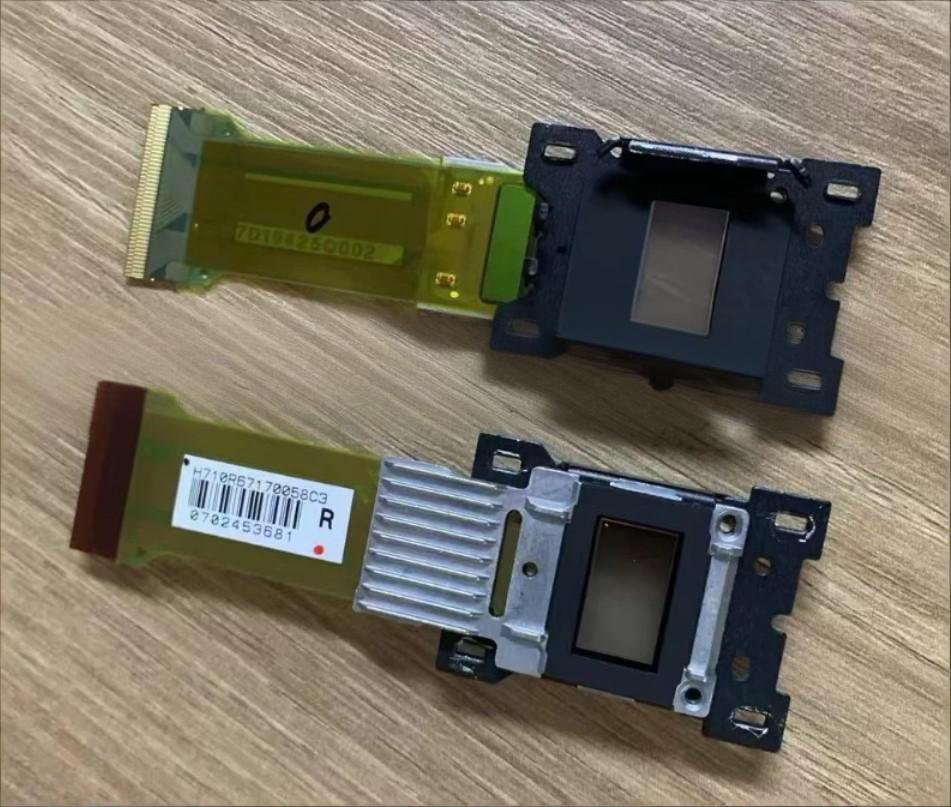

- Single LCD Panel – Bare panel for one color channel. Requires professional installation: after replacement, the panel must be optically aligned (convergence) to merge the RGB images correctly. Not for DIY users.

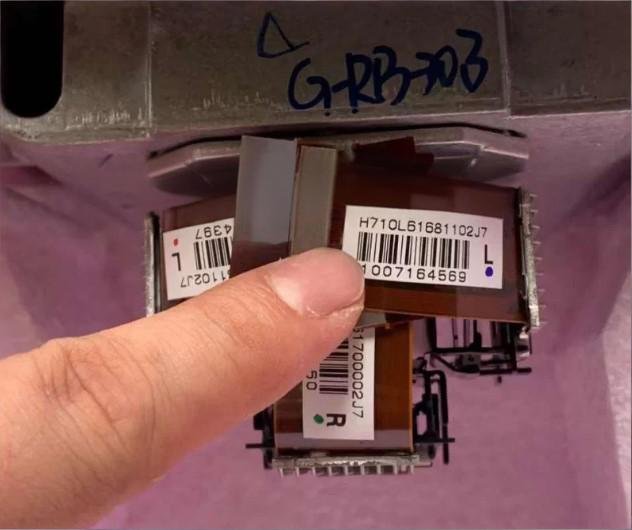

- Complete LCD Assembly – Includes all three panels pre‑mounted on the prism block, factory‑aligned. Drop‑in replacement – no calibration needed. Ideal for fast, reliable repair.
If your Epson TW series projector has developed persistent color or image issues, replacing the faulty component is the most cost‑effective solution. The complete assembly restores like‑new image quality without complex realignment work.
Before ordering: Confirm your projector model and the part numbers on your existing LCD or assembly. Send us a clear photo if unsure – we’ll verify compatibility for you.
