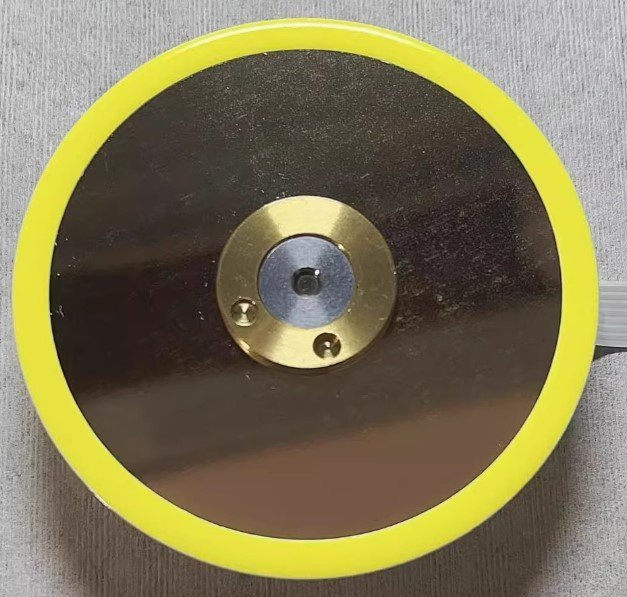

NEC NP-PA653UL+ Phosphor Color Wheel – Nidec Motor, Laser Phosphor Wheel with Authenticity Barcode
Overview
This phosphor color wheel replacement is designed for the NEC NP-PA653UL+ laser phosphor DLP projector and related laser optical engine configurations. It is used in repair and maintenance scenarios where the original phosphor wheel has failed due to bearing wear, phosphor degradation, dust contamination, or long-term high-speed operation fatigue.

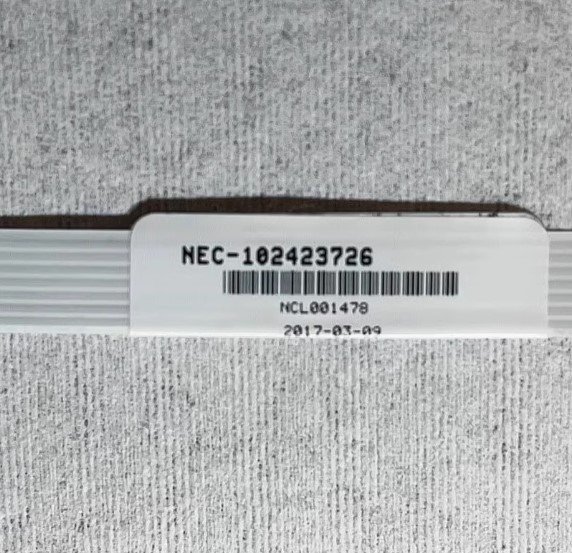

The unit includes an NEC Authenticity Verification Barcode Label for part traceability. This is a laser phosphor wheel – not a conventional DLP color wheel – and is specifically engineered for blue laser excitation systems.
Technical Background (How This Part Works)
In a laser phosphor DLP projector, a blue laser diode array serves as the light source. The phosphor color wheel rotates at high speed and serves two critical functions:
- Phosphor segment: Converts a portion of blue laser light into yellow/green light through photoluminescence.
- Filter segments (typically red, green, blue, or yellow): Further refine the converted light to produce pure primary colors for DLP modulation.

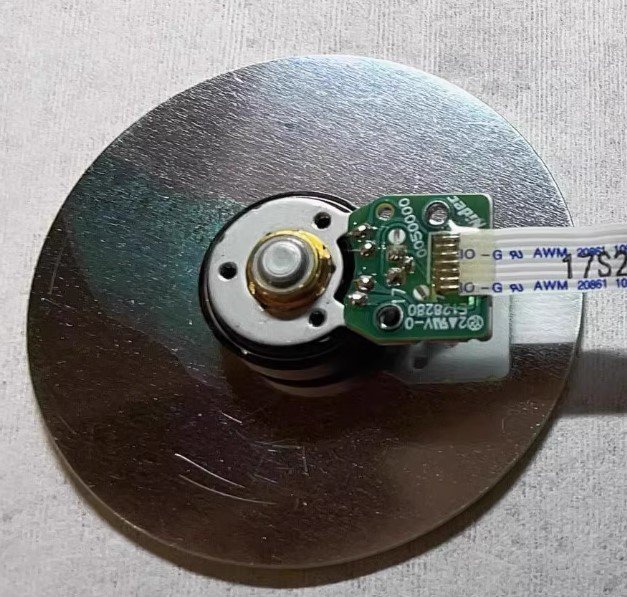

This specific wheel uses a Nidec precision motor and is designed for the NP-PA653UL+ laser platform. Unlike conventional lamp‑based color wheels, phosphor wheels must withstand higher thermal loads and maintain precise rotational sync with the laser modulation timing.
Common Failure Symptoms in Real Repairs
- Whining, grinding, or clicking noises during startup or operation (bearing wear)
- Color shift – images appear too yellow, magenta, or lack proper blue/red balance
- Projector starts but shuts down after a few seconds (phosphor wheel sensor / sync failure)
- Visible flickering or uneven brightness across the image
- Reduced overall brightness even with a new laser module
In field repairs, these symptoms are often traced back to worn motor bearings, phosphor coating degradation, or dust accumulation on the wheel surface – all of which require full phosphor wheel replacement.
Compatibility Notes
This part is designed specifically for NEC NP-PA653UL+ and compatible NEC laser projectors. Laser phosphor wheels are highly model‑specific – always verify:
- Connector type and mounting structure
- Wheel diameter and phosphor segment alignment
- Motor control signal and RPM calibration
Important: Using an incompatible phosphor wheel can cause color sync errors, overheating, or permanent damage to the laser optical engine.
Technical Specifications
| Compatible Models | NEC NP-PA653UL+ (primary) – verify compatibility with other NEC laser projectors before purchase |
|---|---|
| Type | Phosphor color wheel (laser light source – not conventional DLP color wheel) |
| Motor | Nidec precision high‑speed motor |
| Function | Blue laser excitation + color filtering (phosphor segment + filter segments) |
| Authentication | NEC Authenticity Verification Barcode Label included |
| Condition | Brand new, factory replacement |
| Lifespan | Up to 20,000+ hours (depending on laser power and environment) |
| Warranty | 12 months |
Why Phosphor Color Wheels Fail Over Time
Laser phosphor wheels experience unique failure modes compared to conventional lamp projector color wheels:
- Phosphor degradation: High‑intensity blue laser exposure gradually reduces phosphor conversion efficiency, causing yellowing or brightness loss.
- Bearing wear: Continuous high‑speed rotation (often 6x or higher) leads to mechanical noise and vibration.
- Dust contamination: Particles on the phosphor or filter segments create hot spots and color artifacts.
- Thermal stress: Laser systems generate significant heat, accelerating adhesive breakdown on the wheel substrate.
Installation Notes
Phosphor wheel replacement requires disassembly of the laser optical engine. This is a highly sensitive procedure – professional installation by a certified NEC technician is strongly recommended.
Improper handling may result in:
- Permanent damage to the phosphor coating (touching the yellow surface)
- Laser misalignment or reduced output
- Color calibration failure or persistent error codes
Always use ESD protection and work in a dust‑free environment. A service manual may be available on request for qualified repair centers.
FAQ
Q: How do I confirm the phosphor wheel is faulty on my NP-PA653UL+?
A: Unusual noises (grinding/whining) combined with color shift (e.g., overly yellow image) or shutdown errors are the most common indicators. Laser projectors often display a “color wheel error” or “light source error” message.
Q: Is this compatible with conventional lamp‑based NEC projectors?
A: No. This is a laser phosphor wheel designed specifically for NEC NP-PA653UL+ and similar laser models. It will not physically or electrically fit lamp‑based DLP projectors.
Q: Does this part come with the authenticity barcode?
A: Yes, each unit includes the NEC Authenticity Verification Barcode Label for verification.
Shipping & Warranty
- Ships within 24‑72 hours
- Worldwide tracked delivery
- Anti‑static, shock‑resistant packaging
- 12‑month replacement warranty
