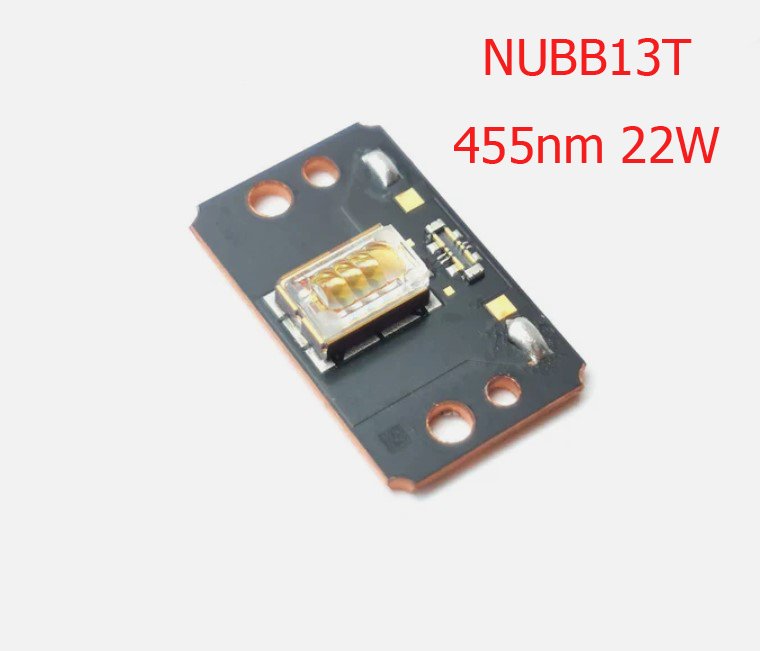

NICHIA NUBB13T | 455nm 22W Blue Laser Diode Array
Original price was: $107.00.$103.00Current price is: $103.00. & Free Shipping
- Original NUBB13T laser diode bank, ideal replacement light source for Panasonic, Sharp, Epson, NEC engineering projectors.
- Ships fast | Safety packing | 30 days returns | 180 days warranty
- Welcome bulk order.
NICHIA NUBB13T 455nm 22W Laser Diode Array
The NICHIA NUBB13T is a high-power blue laser diode array delivering 22W output at 455 nm. It features a 4x didoes configuration with collimated beams for precise optical performance, Such as high-intensity laser projection, engraving, stage lighting, and scientific applications.

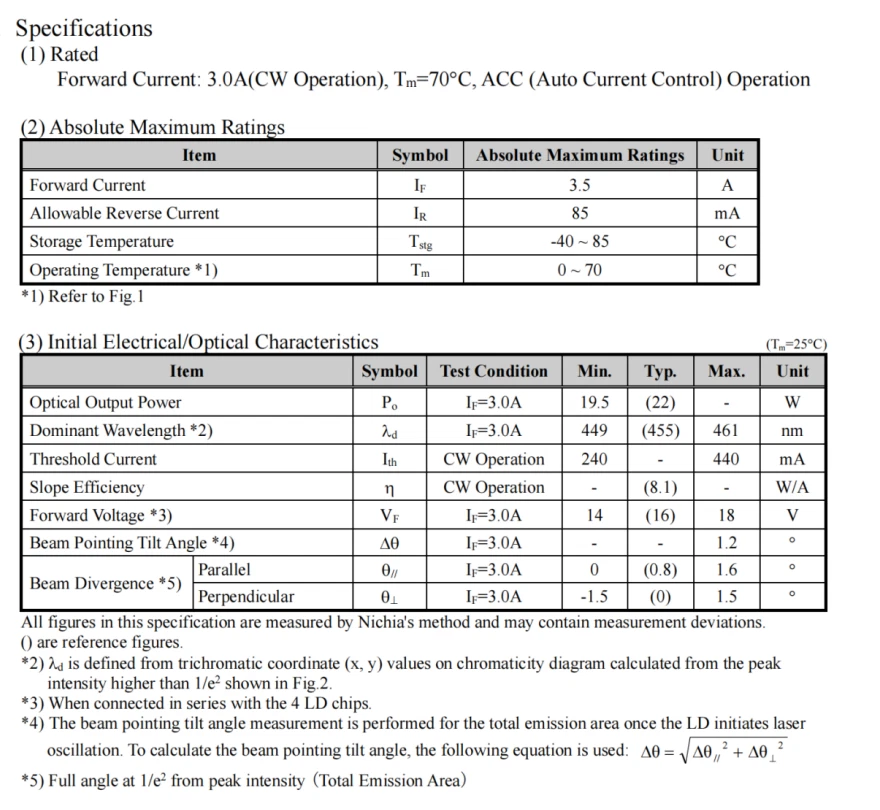

Specifications
| Product Name | Nichia Blue Laser Unit |
|---|---|
| Model | NUBB13T |
| Beams | 4 collimated beams |
| Configuration | |
| Drive Current | < 3.5 A |
| Storage Temperature | −40 °C to 85 °C |
| Operating Temperature | 0 °C to 70°C |
| Optical Output Power | 22W |
| Wavelength | 455 nm |
| Voltage | 14V to 18V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Applications
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
Optional Driver Circuit
We provide a custom-designed driver for the NUBB13T laser diode.
Click here to purchase the compatible driver.
Why Choose NICHIA NUBB13T?
Engineered by NICHIA for exceptional optical stability, NUBB13T ensures reliable performance under demanding conditions. Its robust packaging and precision optics make it suitable for both industrial and entertainment applications.
Shipping & Warranty
- 🚚 Ships within 24–72 hours
- 🌍 Global tracked delivery (est. 14 business days)
- 📦 Shockproof protective packaging
- 🔄 30-Day worry-free returns
- 🛡️ 365-day warranty included
