NICHIA NUBB24 Laser Diode Array Bank | 8x455nm 44W

NUBB24 Laser Diode Array – Product Overview

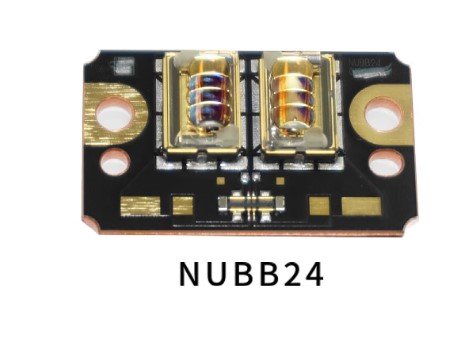

The NICHIA NUBB24 Laser Diode Array Bank is a high-power blue laser source module, delivering 44W output at 455nm. It features a 4 series x 2 parallel configuration with 8 collimator beams. It’s ideal for precise optical performance, such as high-intensity laser projectors & TVs, engraving, stage lighting, and scientific applications.

NUBB24 Specifications

Nichia Laser Light Source Applications

• Laser projectors & laser TVs
• Laser positioning systems
• Stage & event lighting
• Laser engraving & marking
• Automotive fog lamps
• Laser landmarks & beam shows
• High-power flashlights
• Fingerprint forensic analysis
• Medical & beauty devices

Optional Driver Circuit

We provide a custom-designed driver for the NUBB24 laser diode.
Click here to purchase the compatible driver.

Why Choose NICHIA NUBB24?

Engineered by NICHIA for exceptional optical stability, NUBB24 ensures reliable performance under demanding conditions. Its robust packaging and precision optics make it suitable for both industrial and entertainment applications.

Shipping & Warranty

• 🚚 Ships within 24–72 hours
• 🌍 Global tracked delivery (est. 7–14 days)
• 📦 Shockproof protective packaging
• 🔁 30-Day Worry-Free Returns
• 🛡️ Backed by a 180-day warranty
