NICHIA NUBB33 | 455nm 23W Blue Laser Diode Array
Original price was: $94.00.$89.00Current price is: $89.00. & Free Shipping
- Original NUBB33 laser diode bank, ideal replacement light source for Panasonic, Sharp, Epson, NEC engineering projectors.
- Ships fast | Safety packing | 30 days returns | 180 days warranty
- Welcome bulk order.

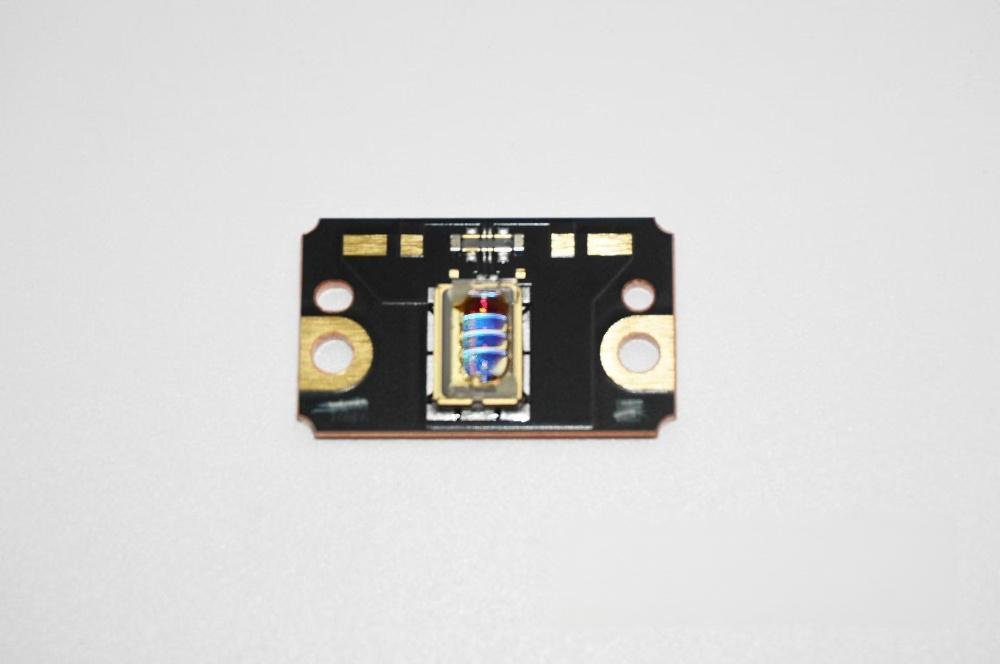

NICHIA NUBB33 455nm 23W Laser Diode Array
The NICHIA NUBB33 is a high-power blue laser diode array delivering 23W output at 455 nm. It features a 1 Series configuration with 4 collimated beams for precise optical performance, Such as high-intensity laser projection, engraving, stage lighting, and scientific applications.

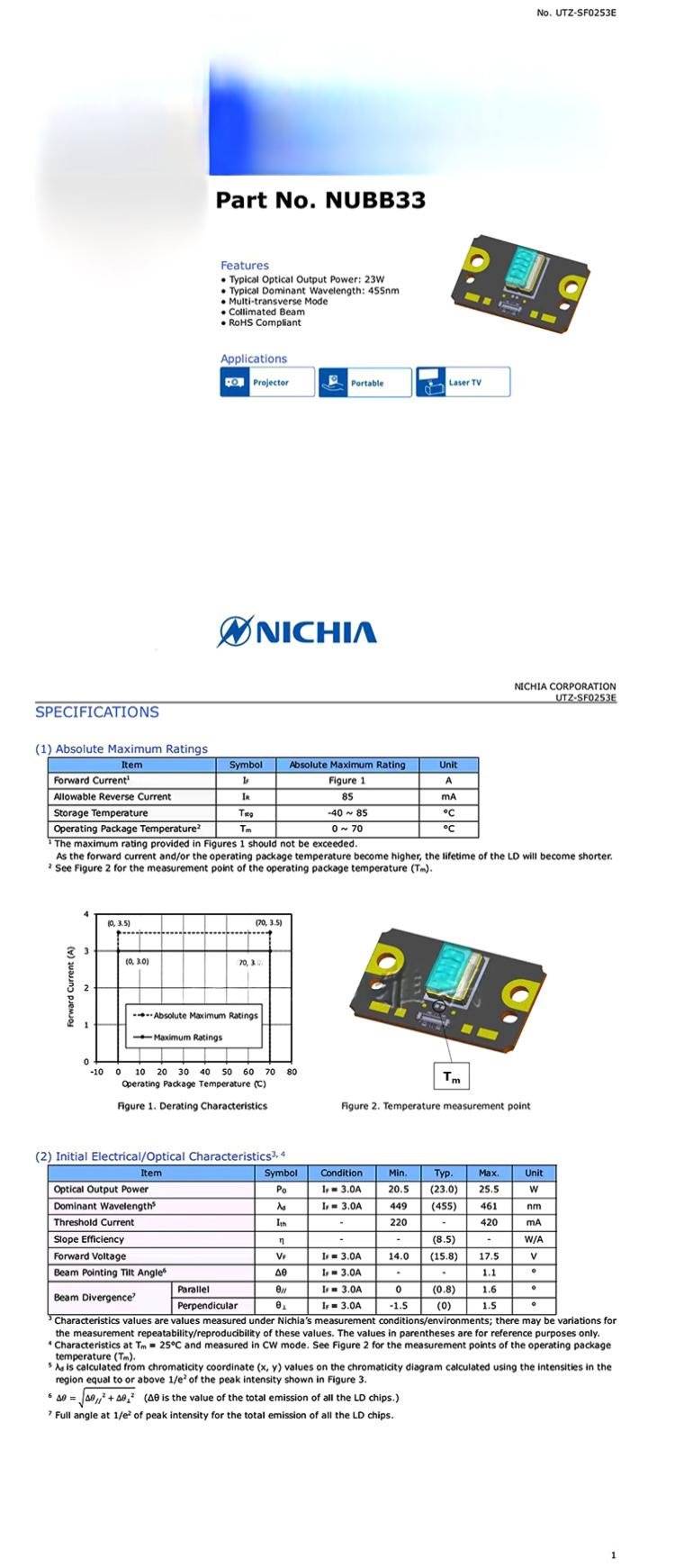

Specifications
| Product Name | Nichia Blue Laser Unit |
|---|---|
| Model | NUBB33 |
| Beams4 | 4 collimated beams |
| Configuration | 1-series × 4 didoe |
| Drive Current | < 3.5 A |
| Storage Temperature | −40 °C to 85 °C |
| Operating Temperature | 0 °C to 70°C |
| Optical Output Power | 23W |
| Wavelength | 455 nm |
| Voltage | 14V to 17.5V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Applications
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
Optional Driver Circuit
We provide a custom-designed driver for the NUBB33 laser diode.
Click here to purchase the compatible driver.
Why Choose NICHIA NUBB33?
Engineered by NICHIA for exceptional optical stability, NUBB33 ensures reliable performance under demanding conditions. Its robust packaging and precision optics make it suitable for both industrial and entertainment applications.
Shipping & Warranty
- 🚚 Ships within 24–72 hours
- 🌍 Global tracked delivery (est. 14 business days)
- 📦 Shockproof protective packaging
- 🔄 30-Day worry-free returns
- 🛡️ 365-day warranty included
