NICHIA NUBM0E Laser Diode Bank Module | 8x455nm Diodes Module 41W
Original price was: $197.00.$189.00Current price is: $189.00. & Free Shipping
- NICHIA NUBM0E laser module special for laser projectors & TVs.
- Ships fast | Safety packing | 30 days returns | 180 days warranty
- Welcome bulk order.

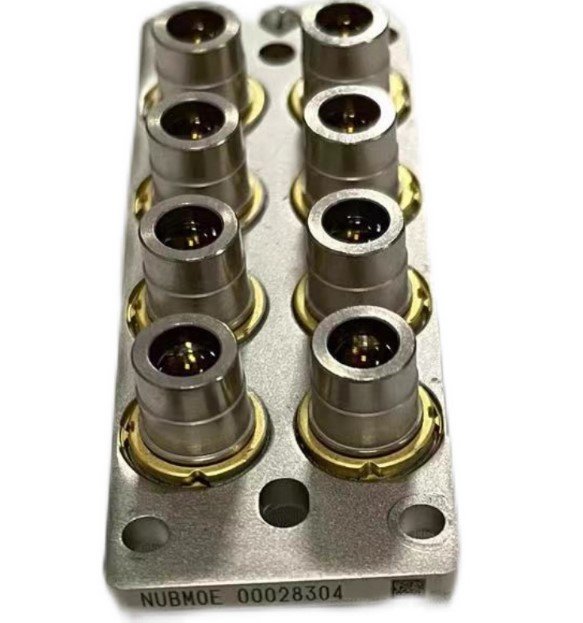

NUBM0E Laser Array Bank – Product Overview
The NICHIA NUBM0E Laser Diode Bank is a high-power blue laser array module, delivering 41W output at 455nm. It features a 8 series configuration with 8 collimator beams. It’s ideal for precise optical performance, such as high-intensity laser projectors & TVs, engraving, stage lighting, and scientific applications.

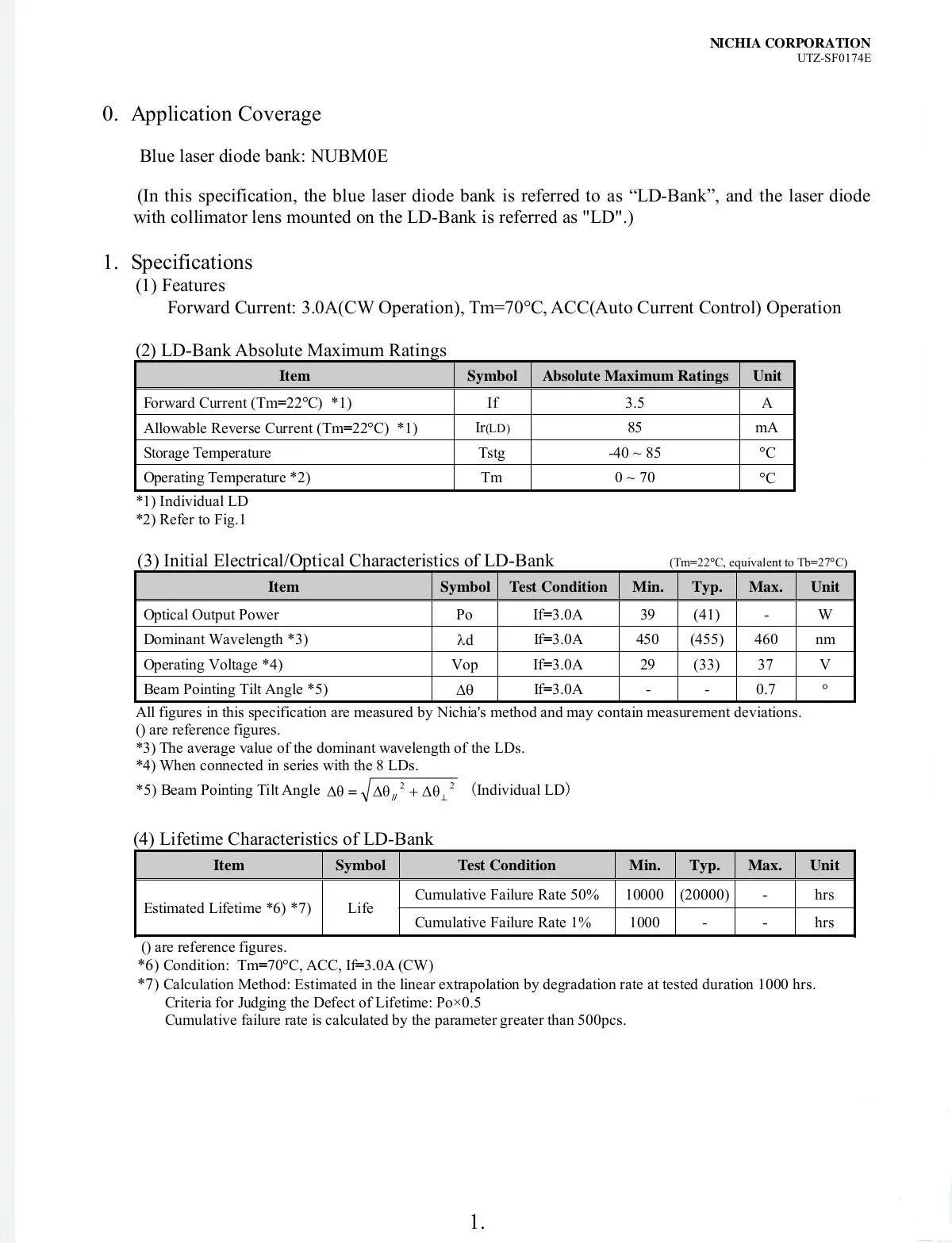

NUBM0E Specifications
| Product Name and Model | Nichia NUBM0E Laser Diode Bank |
|---|---|
| Beams | 8 collimated beams |
| Configuration | |
| Drive Current | < 3.5A |
| Storage Temperature | −40 °C to 85 °C |
| Operating Temperature | 0 °C to 70°C |
| Optical Output Power | 41W |
| Wavelength | 455nm |
| Voltage | 29V to 37V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Nichia Laser Diode Applications
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
Optional Driver Circuit
We provide a custom-designed driver for the NUBM0E laser diode.
Click here to purchase the compatible driver.
Why Choose NICHIA NUBM0E?
Engineered by NICHIA for exceptional optical stability, NUBM0E ensures reliable performance under demanding conditions. Its robust packaging and precision optics make it suitable for both industrial and entertainment applications.
Shipping & Warranty
- 🚚 Ships within 24–72 hours
- 🌍 Global tracked delivery (est. 7–14 days)
- 📦 Shockproof protective packaging
- 🔁 30-Day Worry-Free Returns
- 🛡️ Backed by a 180-day warranty
