NICHIA NUBM3A Laser Diode Module | 465nm 58W Blue Laser Diode Array
Original price was: $135.00.$131.00Current price is: $131.00. & Free Shipping
- Original NUBM3A laser diode bank, ideal replacement light source for Panasonic, Sharp, Epson, NEC engineering projectors.
- Ships fast | Safety packing | 30 days returns | 180 days warranty
- Welcome bulk order.

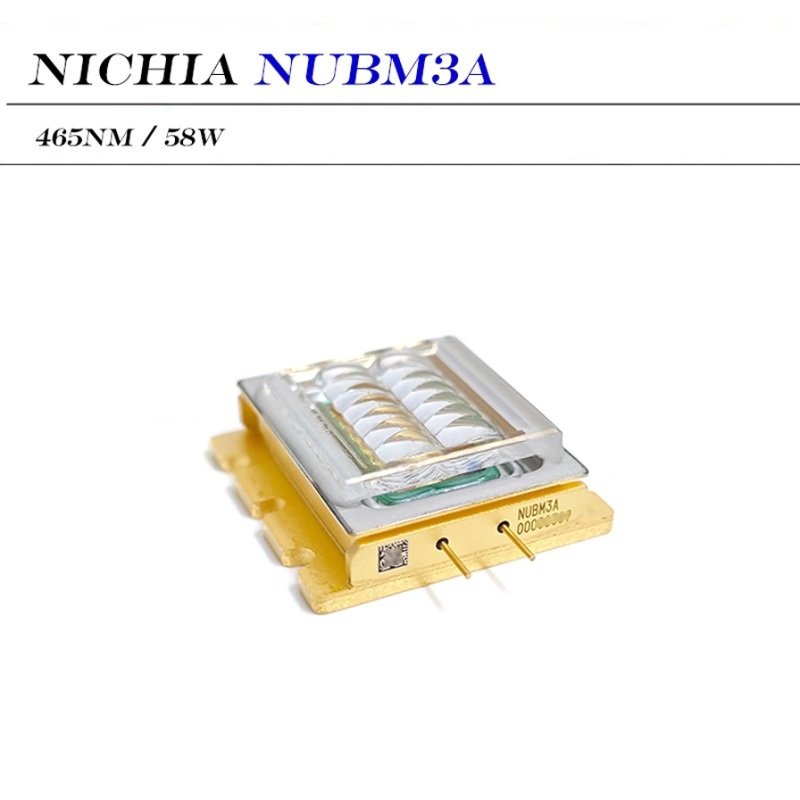

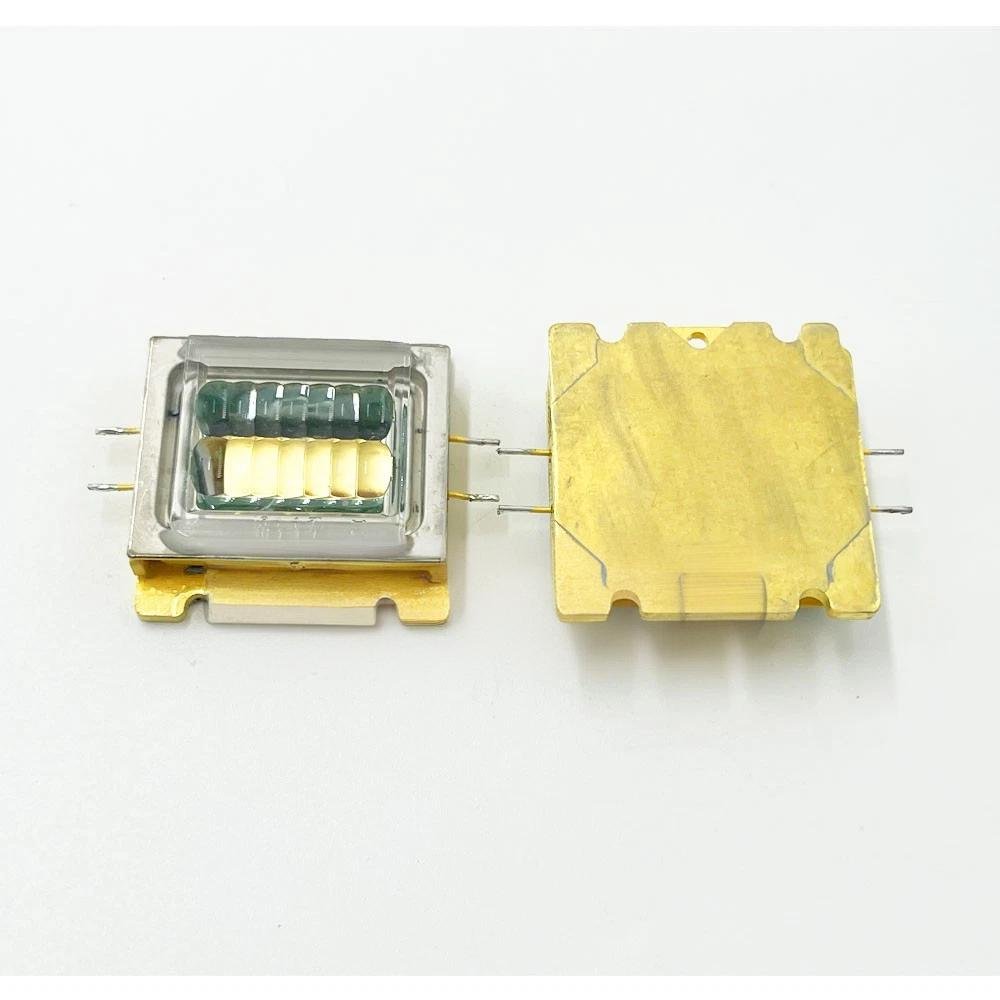

NICHIA NUBM3A 465nm 58W Laser Diode Array
The NICHIA NUBM3A is a high-power blue laser diode array delivering 58W output at 465 nm. It features a 7 Series x 2 Parallel configuration with collimated beams for precise optical performance, Such as high-intensity laser projection, engraving, stage lighting, and scientific applications.

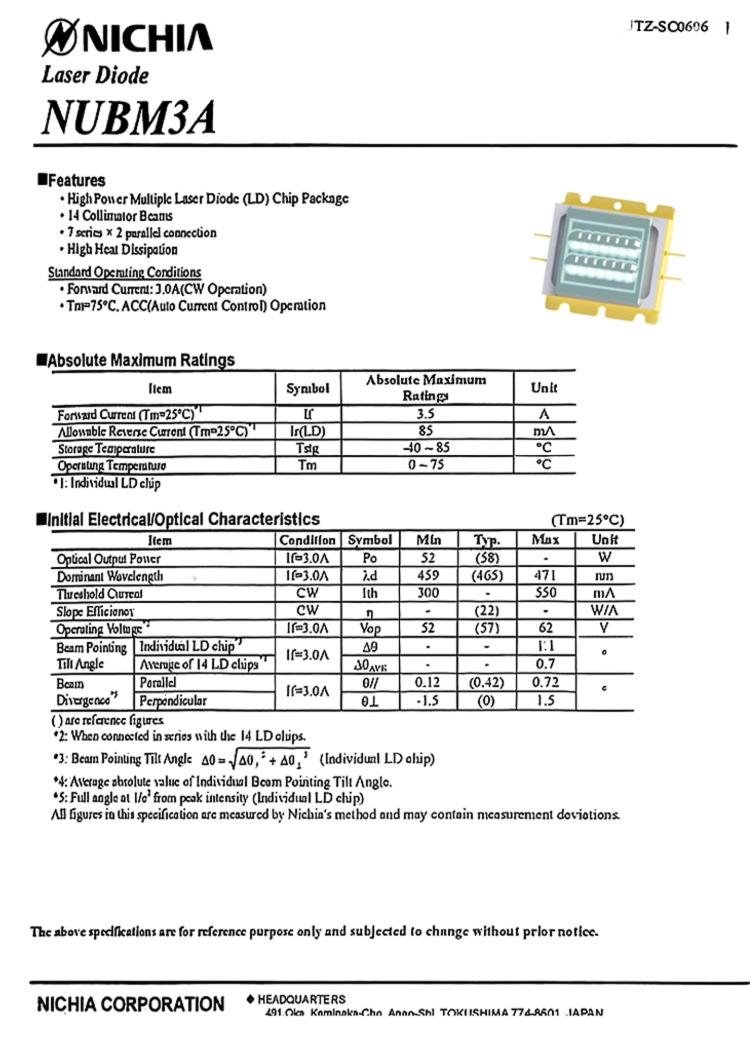

Specifications
| Product Name | Nichia Blue Laser Unit |
|---|---|
| Model | NUBM3A |
| Beams | 14 collimated beams |
| Configuration | 7-series × 2-parallel |
| Drive Current | < 3.5 A |
| Storage Temperature | −40 °C to 85 °C |
| Operating Temperature | 0 °C to 75°C |
| Optical Output Power | 58W |
| Wavelength | 465 nm |
| Voltage | 52V to 62V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Applications
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
Optional Driver Circuit
We provide a custom-designed driver for the NUBM3A laser diode.
Click here to purchase the compatible driver.
Why Choose NICHIA NUBM3A?
Engineered by NICHIA for exceptional optical stability, NUBM3A ensures reliable performance under demanding conditions. Its robust packaging and precision optics make it suitable for both industrial and entertainment applications.
Shipping & Warranty
- 🚚 Ships within 24–72 hours
- 🌍 Global tracked delivery (est. 14 business days)
- 📦 Shockproof protective packaging
- 🔄 30-Day worry-free returns
- 🛡️ 365-day warranty included
