NICHIA NUBM3F | 465nm 146W Blue Laser Diode Bank
Original price was: $747.00.$741.00Current price is: $741.00. & Free Shipping
- Original NUBM3F Laser diode bank, ideal replacement light source for Panasonic, Sharp, Epson, NEC engineering projectors.
- Ships fast | Safety packing | 30 days returns | 180 days warranty
- Welcome bulk order.

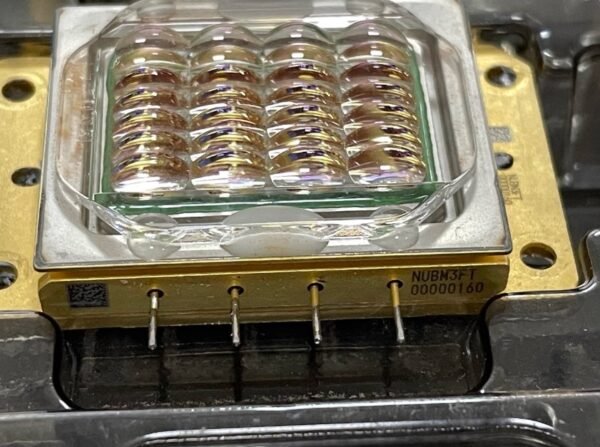

NICHIA NUBM3F 465nm 146W Laser Diode Bank
The NICHIA NUBM3F is a high-power blue laser diode array delivering 146W output at 465 nm. It features a 28x didoes configuration with collimated beams for precise optical performance, Such as high-intensity laser projection, engraving, stage lighting, and scientific applications.

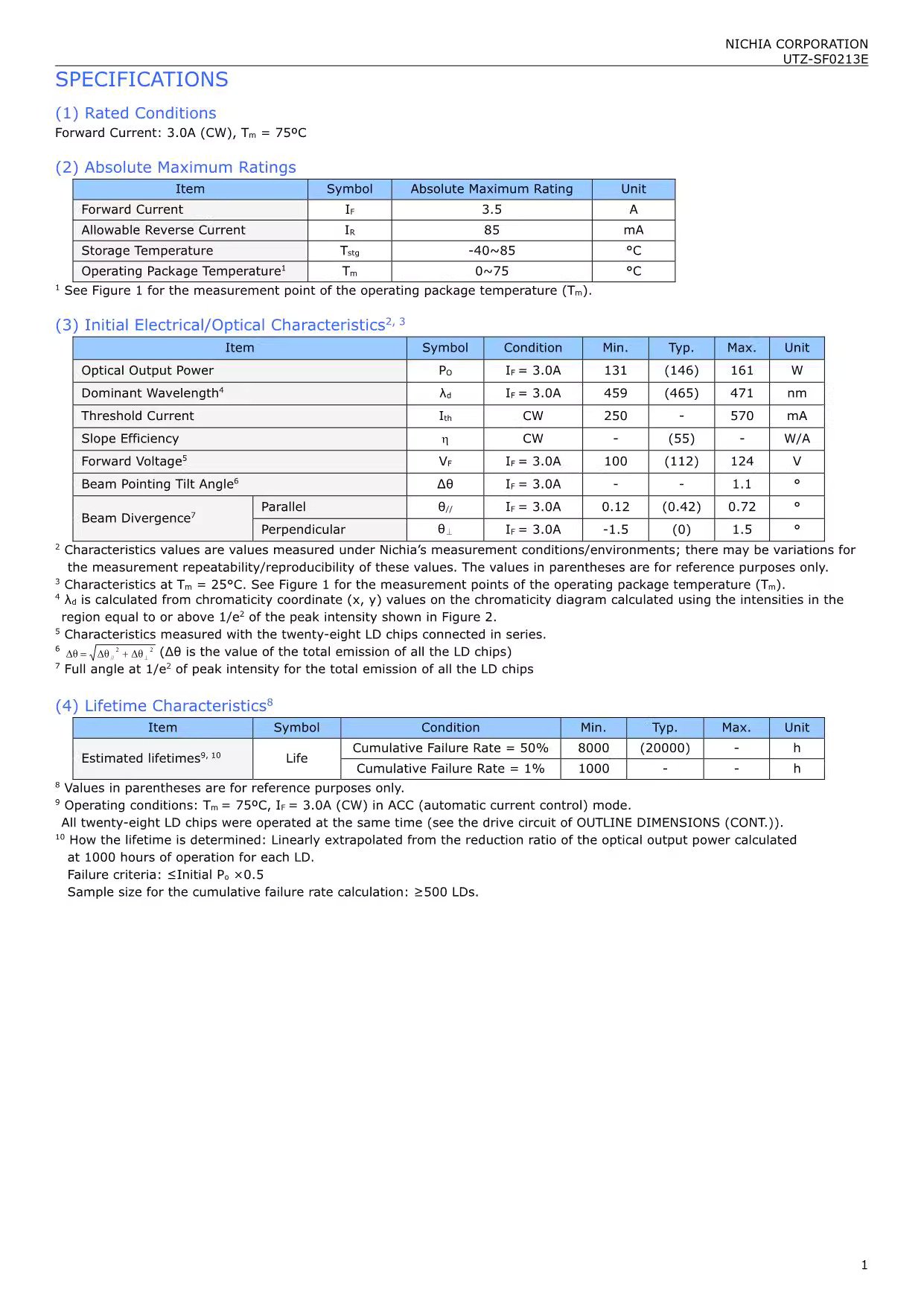

Specifications
| Product Name | Nichia Blue Laser Unit |
|---|---|
| Model | NUBM3F |
| Beams | 28 collimated beams |
| Configuration | 8-series X 4 Parallel |
| Drive Current | < 3.5 A |
| Storage Temperature | −40 °C to 85 °C |
| Operating Temperature | 0 °C to 75°C |
| Optical Output Power | 146W |
| Wavelength | 465 nm |
| Voltage | 100V to 124V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Applications
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
Optional Driver Circuit
We provide a custom-designed driver for the NUBM3F laser diode.
Click here to purchase the compatible driver.
Why Choose NICHIA NUBM3F?
Engineered by NICHIA for exceptional optical stability, NUBM3F ensures reliable performance under demanding conditions. Its robust packaging and precision optics make it suitable for both industrial and entertainment applications.
Shipping & Warranty
- 🚚 Ships within 24–72 hours
- 🌍 Global tracked delivery (est. 14 business days)
- 📦 Shockproof protective packaging
- 🔄 30-Day worry-free returns
- 🛡️ 365-day warranty included
