NICHIA NUMB12 Multiple Laser Diode Module
Price range: $97.00 through $189.00 & Free Shipping
- NICHIA NUMB12 multiple laser diode package with 9-chip RGB array. High heat dissipation and pulse operation.
- Ships fast | Safety packing | 30 days returns | 180 days warranty
- Welcome bulk order.
NICHIA NUMB12 Multiple Laser Diode Module
The NICHIA NUMB12 is a high-power R,G,B laser matrix, Blue 2 series, 465nm 8.3W; Green 3 series,525nm 4.8W; Red 4 series, 643nm,10W. 8x collimated beams, Special for laser projector and Hession Vidda C1 pro or C2 pro laser tv.

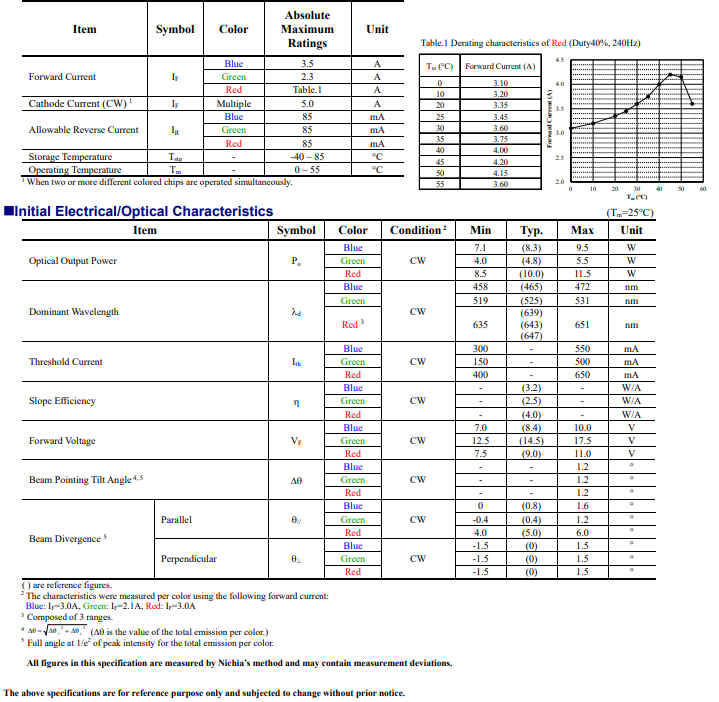

Specifications
| Product Name | Nichia Multiple Laser diode matrix |
|---|---|
| Model | NUMB12 |
| Beams | 9 collimated beams |
| Configuration | Blue 2 series, 465nm 8.3W; Green 3 series,525nm 4.8W; Red 4 series, 643nm,10W |
| Drive Current | < 5 A (Multiple) |
| Storage Temperature | −40 °C to 85 °C |
| Operating Temperature | 0 °C to 55°C |
| Optical Output Power | R: 10W, G: 4.8W, B: 8.3W |
| Wavelength | R: 643nm, G: 525nm, B: 465nm |
| Voltage | |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Applications
- Laser projectors & Hession laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
Optional Driver Circuit
We provide a custom-designed driver for the NUMB12 laser diode.
Click here to purchase the compatible driver.
Why Choose NICHIA NUMB12?
Engineered by NICHIA for exceptional optical stability, NUMB12 ensures reliable performance under demanding conditions. Its robust packaging and precision optics make it suitable for both Laser Projector and TV.
Shipping & Warranty
- 🚚 Ships within 24–72 hours
- 🌍 Global tracked delivery (est. 14 business days)
- 📦 Shockproof protective packaging
- 🔄 30-Day worry-free returns
- 🛡️ 365-day warranty included
