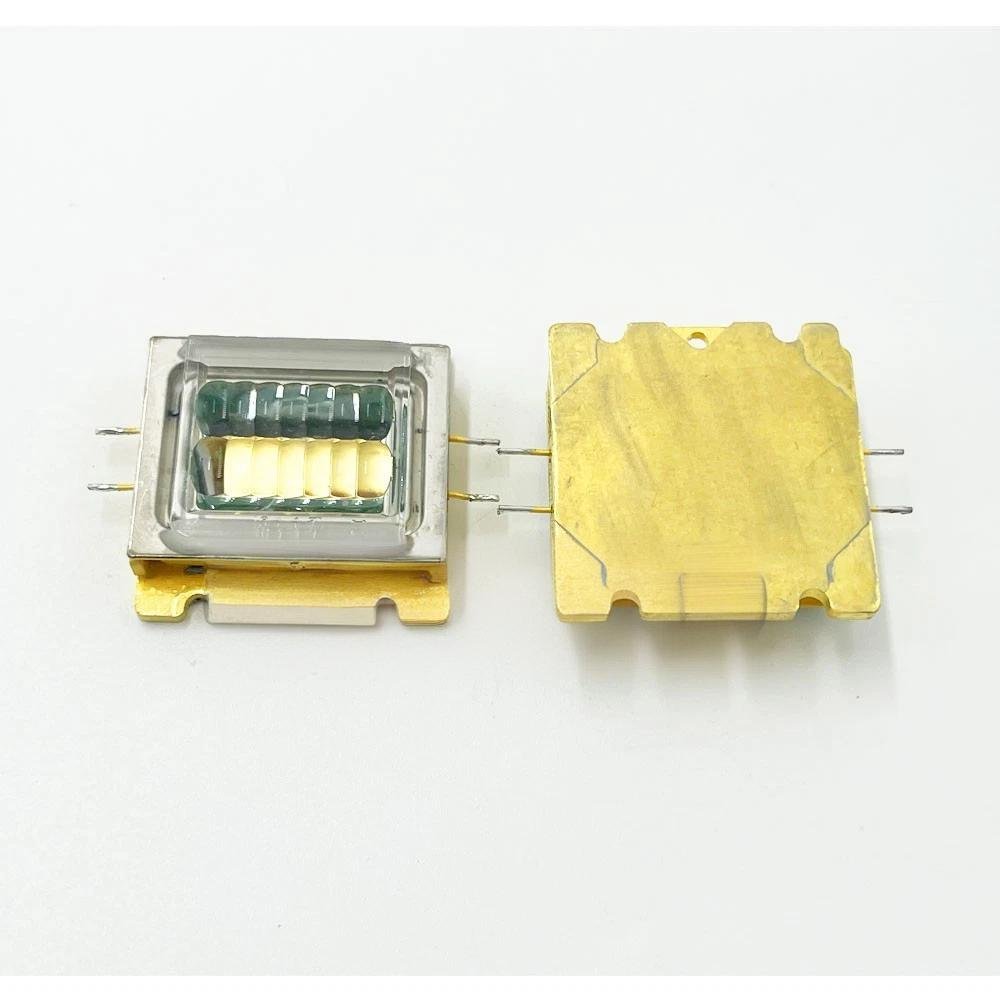

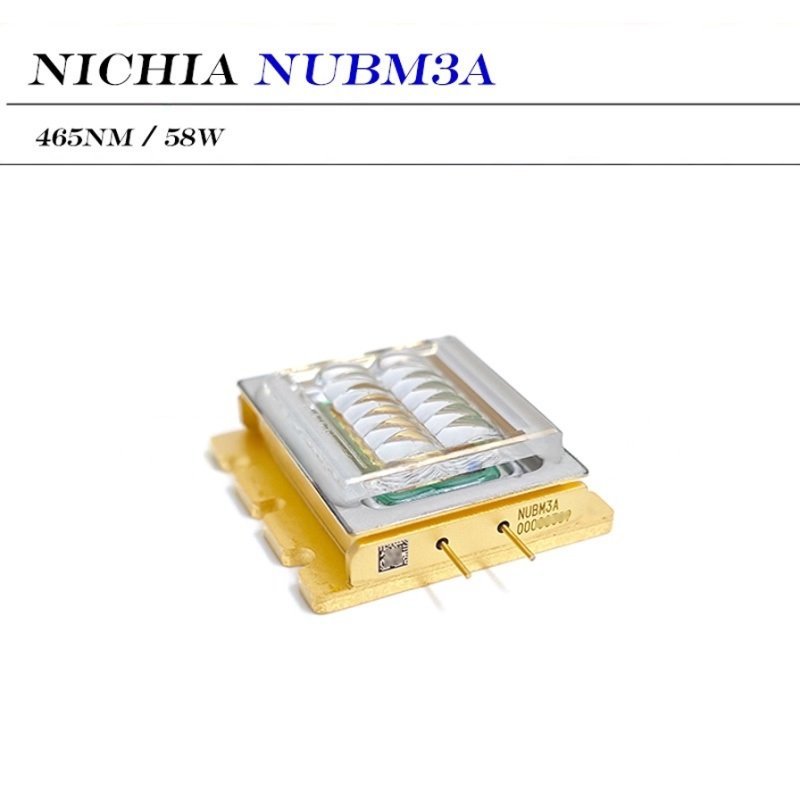

NICHIA NUBM3A Laser Diode Array Product Overview
The NICHIA NUBM3A is a high-power blue laser diode array delivering 58W output at 465nm. It features a 7-series x 2-parallel configuration with 14 collimated beams for precise optical performance, such as high-intensity laser projection, engraving, stage lighting, and scientific applications.

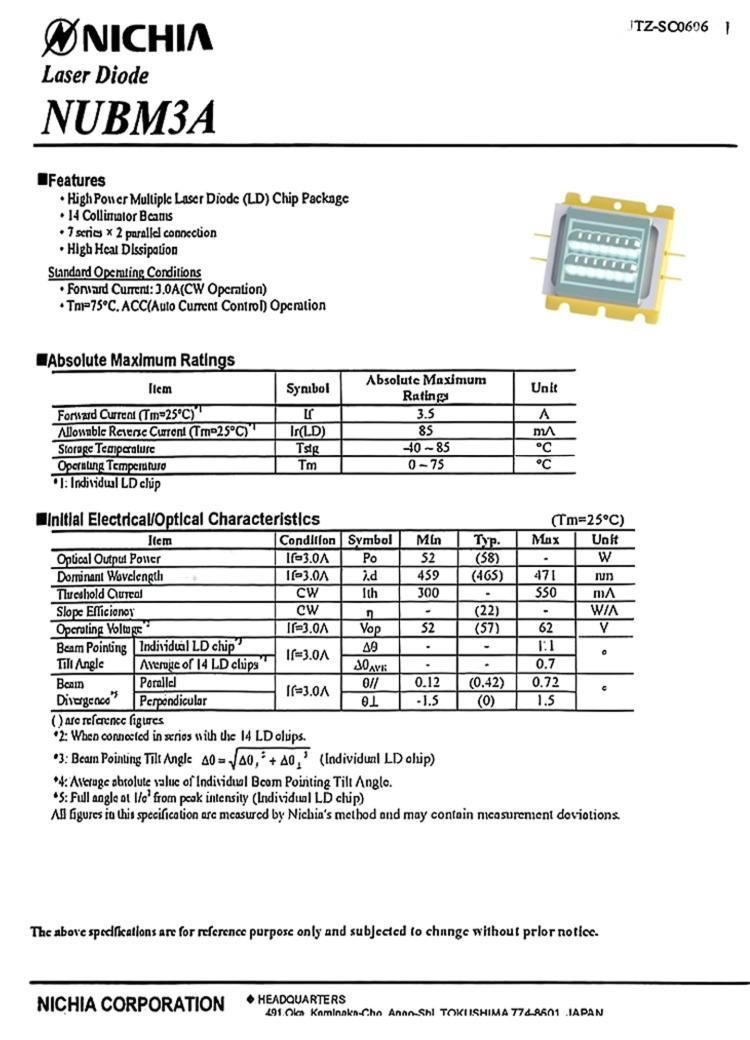

NUBM3A Specifications
| Product Name and Model | Nichia NUBM3A Blue Laser Array |
|---|---|
| Beams | 14 collimated beams |

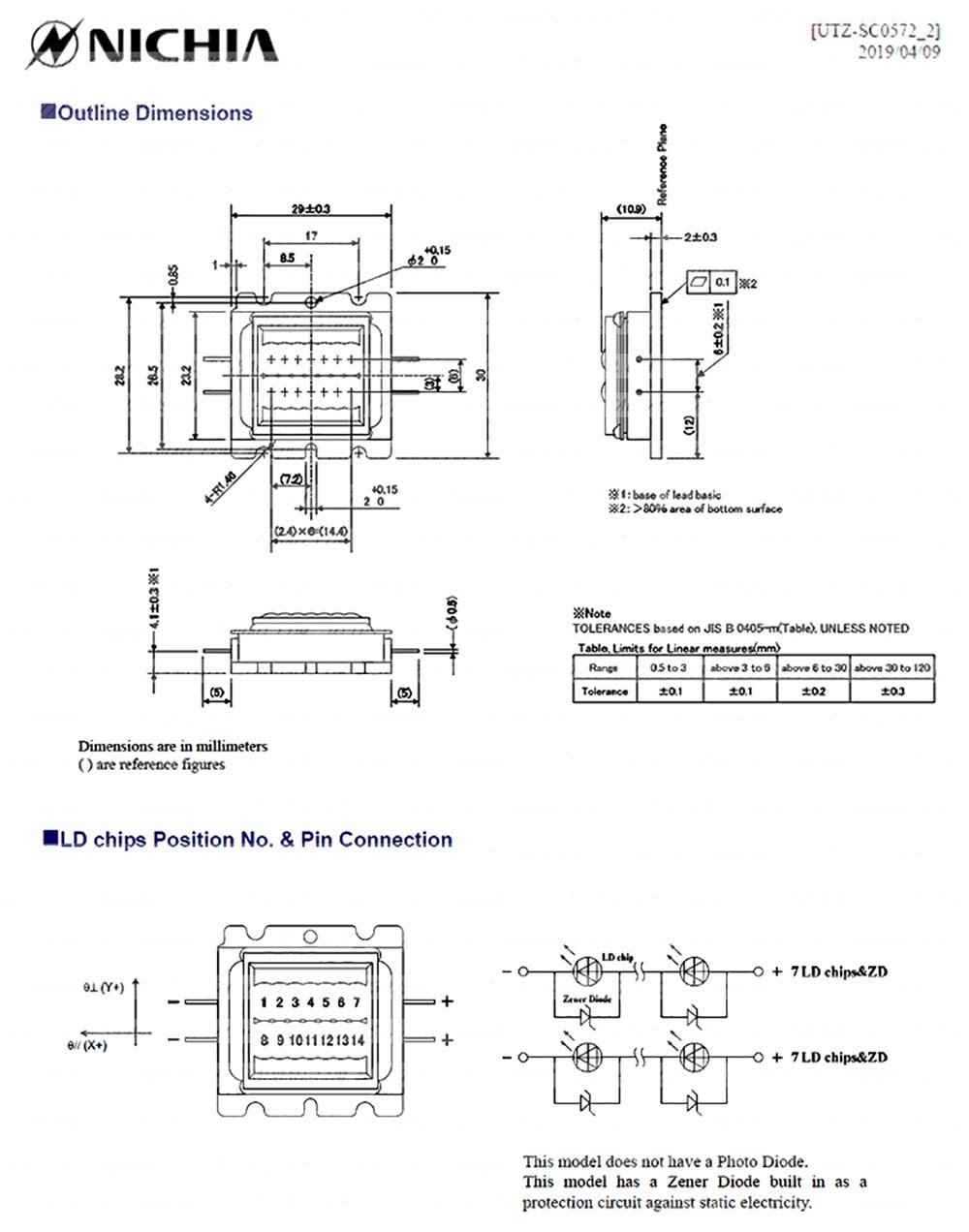

| Configuration | 7-series x 2-parallel |
| Drive Current | < 3.5 A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 75°C |
| Optical Output Power | 58W |
| Wavelength | 465nm |
| Voltage | 52V to 62V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Applications
The NICHIA NUBM3A is ideal for:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
Compatible driver: A custom-designed driver for the NUBM3A is available. Click here for driver details.
