NICHIA NUMM34 RGB Laser Matrix – 465nm/525nm/639-647nm, 65.5W Total

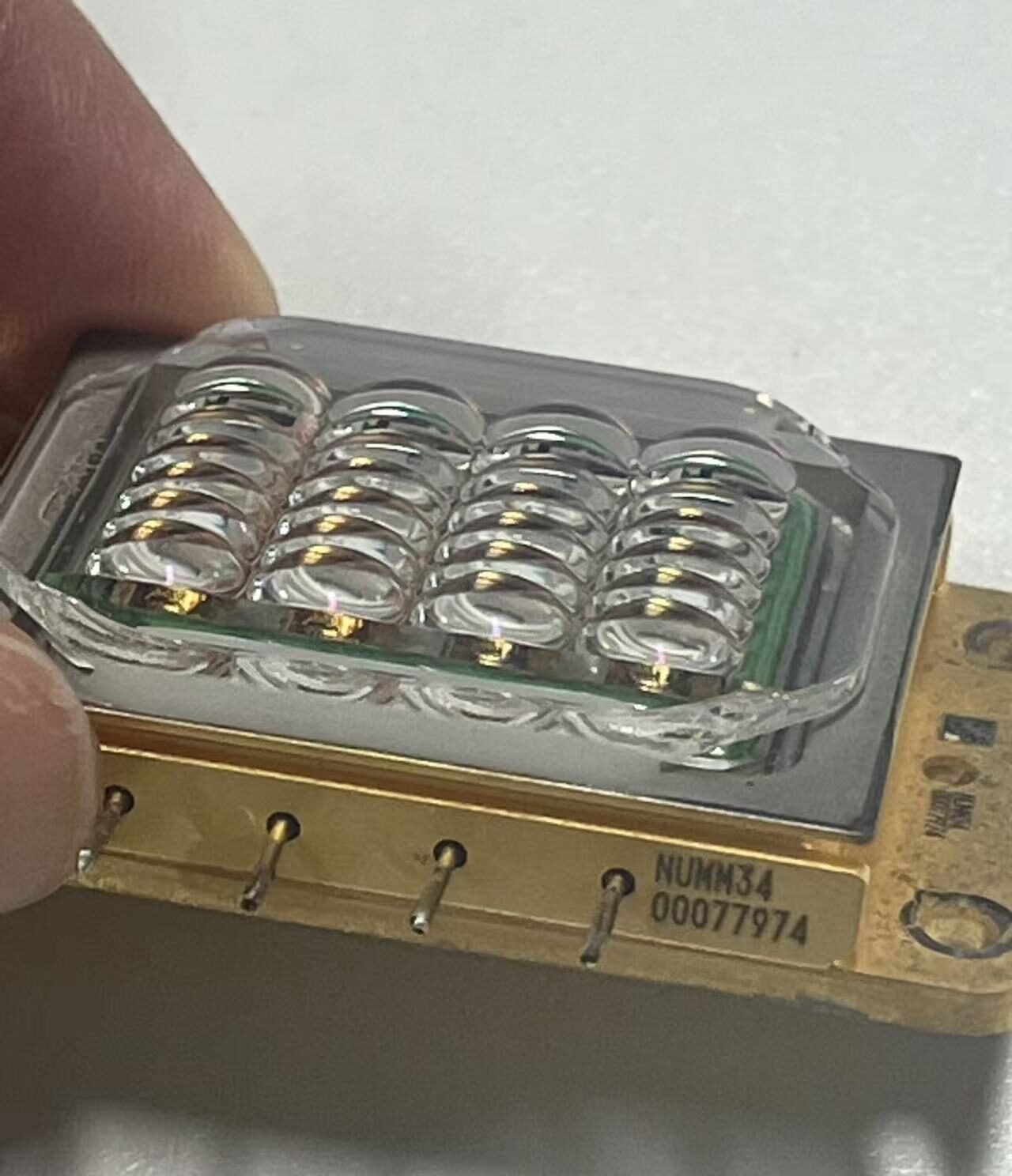

The NICHIA NUMM34 is a high-power RGB laser matrix delivering Blue: 29W at 465nm, Green: 11.5W at 525nm, and Red: 25W at 639/643/647nm. It features a 7-series x 4-parallel configuration with 28 collimated beams, specially designed for laser projectors and laser TVs.
NUMM34 Specifications
| Product Name and Model | Nichia NUMM34 RGB Laser Matrix |
|---|---|

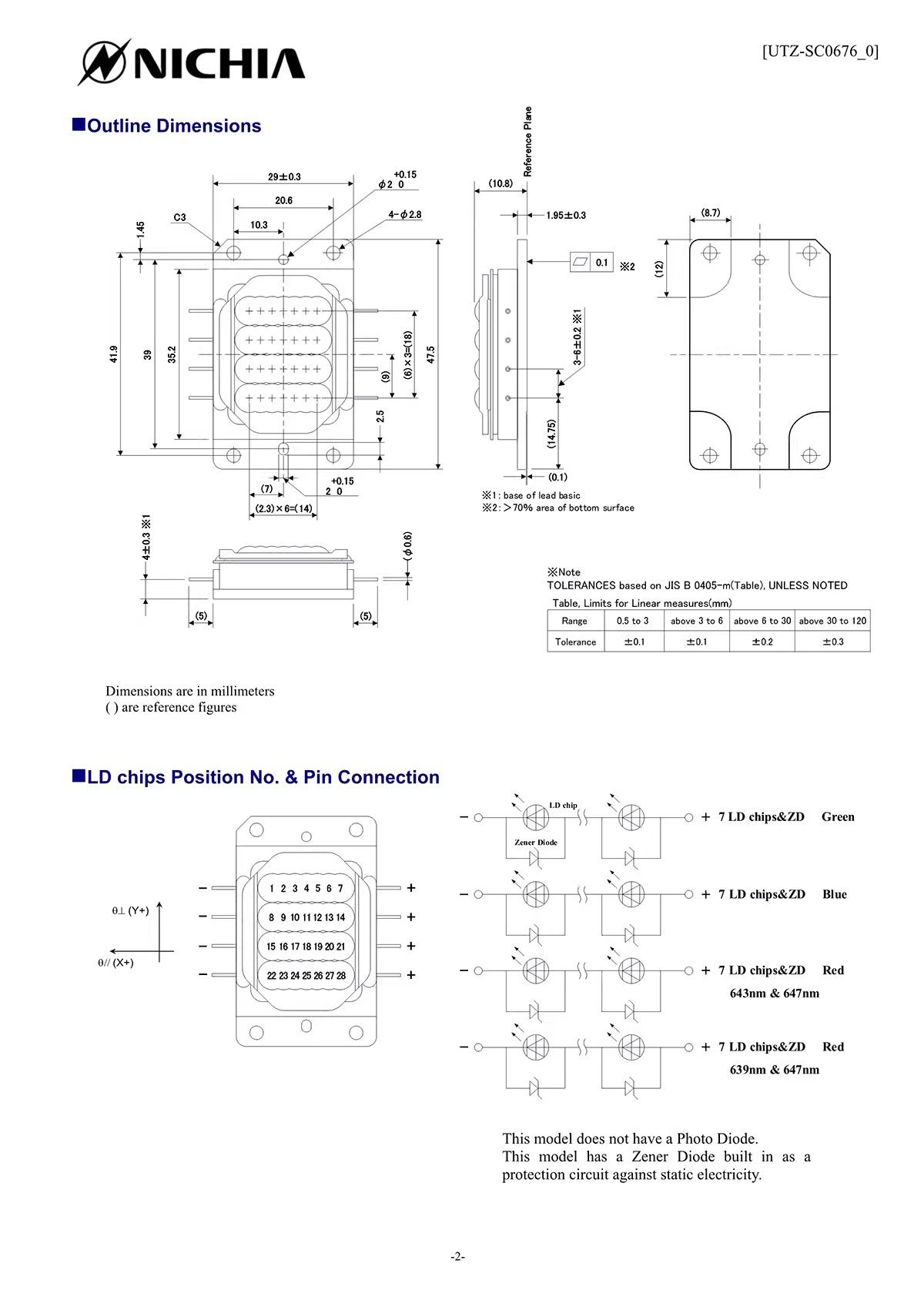

| Beams | 28 collimated beams (7-series x 4-parallel) |
| Configuration | RGB independent laser diodes |
| Drive Current (total) | < 5 A (all channels combined) |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 55°C |
| Optical Output Power | Blue: 29W, Green: 11.5W, Red: 25W |
| Wavelength | Blue: 465nm, Green: 525nm, Red: 639/643/647nm |
| Voltage (per channel) | Blue: 28.5V, Green: 32.5V, Red: 29.5V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Applications
The NICHIA NUMM34 is ideal for:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
Compatible driver: A custom-designed driver for the NUMM34 is available. Click here for driver details.
