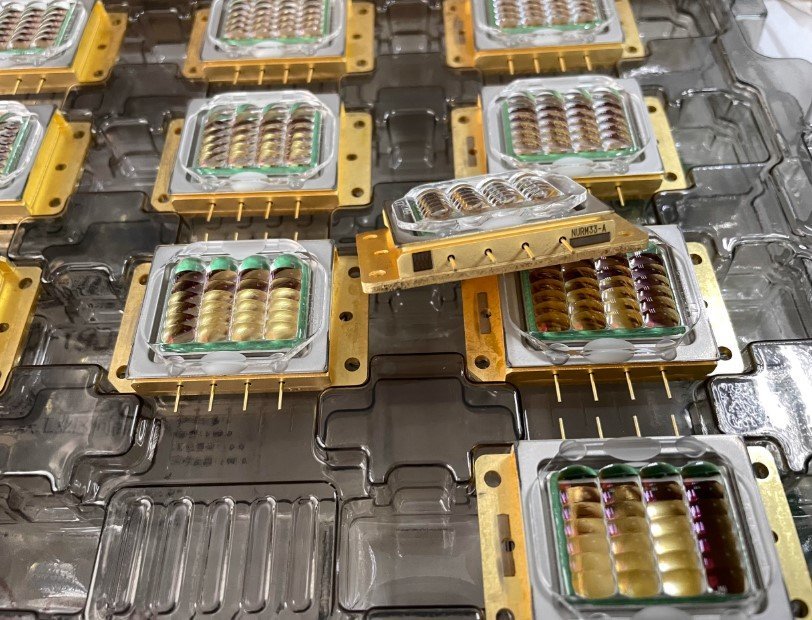

NICHIA NURM33A Laser Diode Array – Product Overview
The NICHIA NURM33A laser diode array is a high-power red laser bank module, delivering 72W output at 639nm, 643nm, and 647nm. It features a 7-series x 4-parallel configuration with 28 collimated beams for precise optical performance, such as high-intensity laser projection, engraving, stage lighting, and scientific applications.

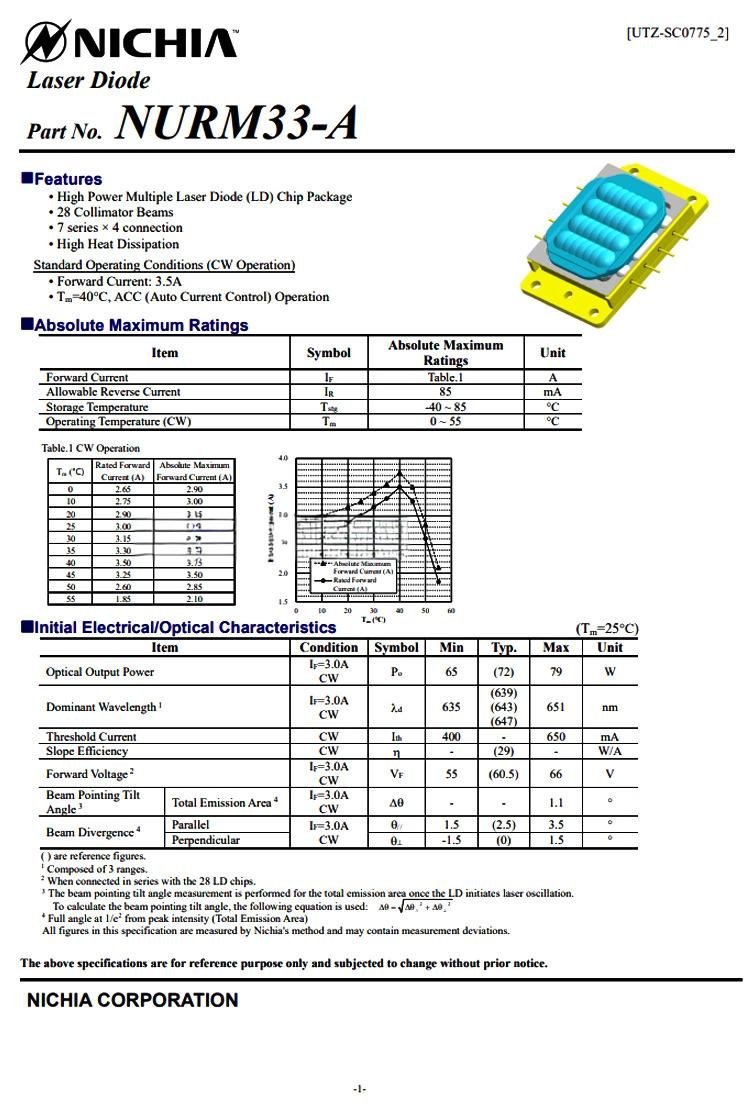

NURM33A Specifications
| Product Name and Model | Nichia NURM33A Laser Array (Red) |
|---|---|
| Beams | 28 collimated beams |
| Configuration | 7-series x 4-parallel |
| Drive Current | < 3.5 A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 55°C |
| Optical Output Power | 72W |
| Wavelength | 639nm, 643nm, 647nm |
| Voltage | 55V to 66V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Nichia Laser Diode Applications
The NICHIA NURM33A is widely used in:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
