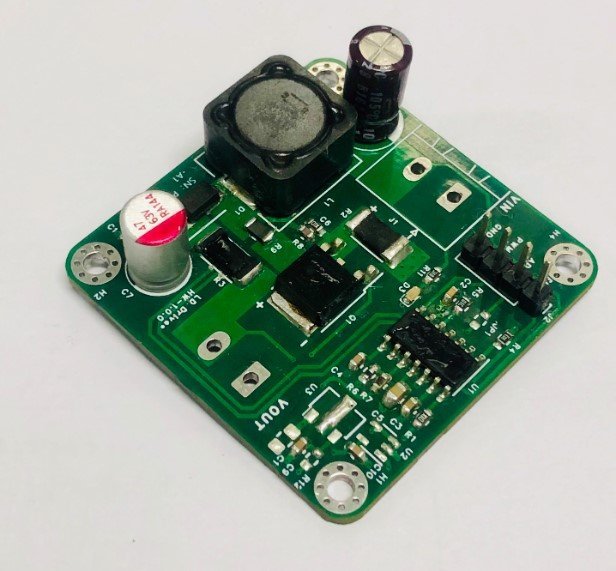

NUBX-TLG High-Efficiency Laser Diode Driver Overview
The NUBX-TLG Series Laser Diode Driver is a high-performance constant current driver module, designed specifically for solid-state laser diodes (LDs).
Built with a BOOST power architecture, it provides high voltage step-up efficiency up to 96.5%, compact size, and superior power density.
This driver board is ideal for applications requiring stable and reliable laser diode power supplies, including projectors, biomedical devices, and UV curing systems.
Key Features
- High Efficiency: Up to 96.5% power conversion
- Wide Compatibility: Supports 5–8 blue LDs (customizable for more)
- Constant Current Output: Ensures stable laser performance
- Dual Brightness Control: Analog ADJ input (0–1.2V) + PWM digital input (5–20kHz)
- Compact & High Power Density: Easy system integration
- Multiple Models Available: Adjustable current up to 3.5A
Available Models
| Model | Input Voltage | Output Current | Output Voltage | Brightness Control |
|---|---|---|---|---|
| NUBX-TLG-1.6A0 | 12V | 1.6A | 45.5V | PWM / ADJ (Digital + Analog) |
| NUBX-TLG-2.3A0 | 12V | 2.3A | 45.5V | PWM / ADJ (Digital + Analog) |
| NUBX-TLG-3.0A0 | 12V | 3.0A | 45.5V | PWM / ADJ (Digital + Analog) |
| NUBX-TLG-ADJA0 | 12V | 0–3.5A | 45.5V | On-board Adjustment Knob + PWM / ADJ |
Technical Specifications
- Input Voltage: 12V DC (custom input voltages available)
- Input Current: 8A typical (depends on laser power & efficiency)
- Output Voltage: Supports 5–8 LDs (higher count customizable)
- Output Current: Up to 3A (max; higher current on request)
- Efficiency: Up to 96.5%
- Control Options: Analog (0–1.2V) + PWM digital (0–100%, 5–20kHz)
Pin Definition
| Pin | Function | Voltage Range | Notes |
|---|---|---|---|
| EN | Enable (High = ON) | 3.3–5V | For emergency/test use only; series resistor 5–10K required |
| ADJ | Analog Brightness Control | 0–1.2V | Do not exceed 1.2V; minimum 0.2V required to turn on |
| PWM | Digital Brightness Control | 3.3V / 5V logic | Supports 0–100% duty cycle, 5–20kHz frequency |
| GND | Signal Ground | 0V Reference | Must be connected to controller ground |
Applications
- Mini laser projectors & light engines
- Biomedical laser excitation & sample detection
- UV curing LED & laser light sources
- Automotive laser headlights
- High-power LED lighting (RV, industrial, outdoor)
Safety Notes
- Apply 3.3–5.5V DC or GPIO high level to the EN pin.
- Start from ADJ = 0V / PWM = 0%, then gradually increase brightness.
- Do not reverse polarity or short output; may cause permanent damage.
- Always wear certified laser safety goggles during operation.
- Ensure proper cooling: 40×40mm fan or heatsink with thermal pads.
Warning
Professional use only. The NUBX-TLG laser driver is a high-power laser diode power supply module.
Improper use may result in serious injury or permanent eye damage.
We are not responsible for damages caused by incorrect handling or installation.
