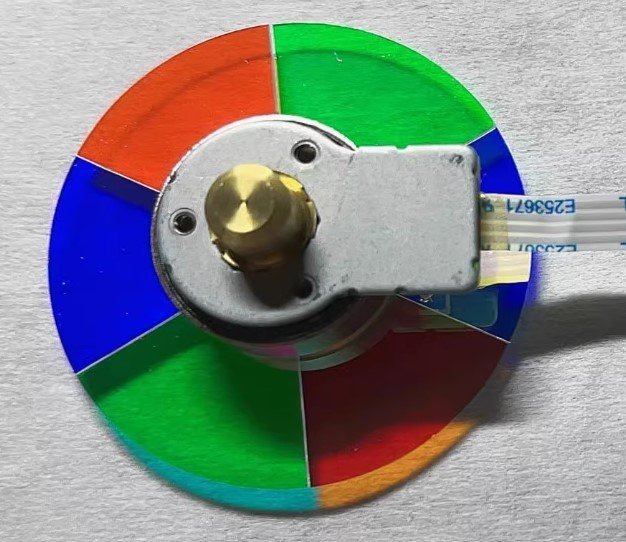

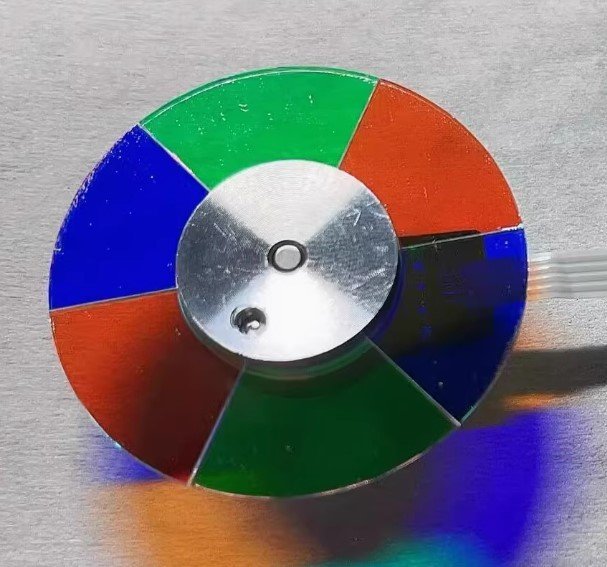

ViewSonic pro7827HD Color Wheel Replacement – P/N 102421853 (RGBRGB 6‑Segment)
Overview
This color wheel replacement (part number 102421853) is designed for the ViewSonic pro7827HD DLP projector and related optical engine configurations. It is used in repair and maintenance scenarios where the original color wheel has failed due to bearing wear, dust contamination, or long-term high-speed operation fatigue.
The unit is built for compatibility with RGBRGB 6-segment optical systems commonly used in home theater-grade DLP projectors.
Technical Background (How This Part Works)
A DLP projector color wheel synchronizes color separation with the DMD chip at high rotational speeds. In the pro7827HD system, a 6-segment RGBRGB configuration is used to improve color accuracy by eliminating white segments, which typically increase brightness but reduce color precision.
This design is commonly found in home theater-oriented DLP projectors where color accuracy is prioritized over maximum lumen output.
Common Failure Symptoms in Real Repairs
- High-pitched spinning or ticking noise during startup (bearing wear)
- Random color shifting or incorrect RGB balance during projection
- Projector starts but shuts down after a few seconds (optical sync failure)
- Visible flickering or “rainbow effect” becoming unusually strong
In field repairs, these symptoms are often traced back to mechanical imbalance or aging bearings inside the color wheel assembly.
Compatibility Notes
This part is designed specifically for ViewSonic pro7827HD. However, DLP optical engines may share similar assemblies across related models. Always verify:
- Connector type and mounting structure
- Wheel diameter and housing alignment
- Motor control signal compatibility
Important: Even small differences in RPM calibration or segment timing can cause color distortion or startup failure.
Technical Specifications
| Model Compatibility | ViewSonic pro7827HD |
|---|---|
| Configuration | RGBRGB 6-segment (no white segment) |
| Motor Type | High-speed balanced DLP motor |
| Part Number | 102421853 |
| Condition | Brand new, factory replacement |
| Service Life | Up to 20,000+ hours (depending on environment) |
Why Color Wheels Fail Over Time
In long-term projector usage, color wheel failures are typically caused by mechanical and thermal stress rather than electronic failure.
- Bearing degradation due to continuous high-speed rotation
- Heat exposure inside sealed optical chambers
- Dust accumulation affecting balance and optical timing
- Long-term vibration leading to phase instability
Installation Notes
Replacement requires access to the projector’s optical engine. This process involves disassembly of sensitive optical components.
Professional installation is recommended because improper alignment may result in:
- Color misalignment or ghosting
- Startup failure due to sensor mismatch
- Excess vibration or noise
ESD protection and dust-free handling are strongly recommended during installation. A service manual may be available on request.
FAQ
Q: How do I confirm the color wheel is faulty?
A: Noise during startup combined with abnormal color output is the most common indicator.
Q: Will this fix flickering or washed-out colors?
A: Yes, if the root cause is a worn or unbalanced color wheel. However, other optical issues (like a failing DMD or light source) can produce similar symptoms – diagnostic verification is recommended.
Shipping & Warranty
- Ships within 24‑72 hours
- Worldwide tracked delivery
- Anti‑static, shock‑resistant packaging
- 12‑month replacement warranty
✔ Restore accurate RGBRGB color on your pro7827HD
✔ Original factory part with barcode 102421853
✔ Fast global shipping + 12‑month coverage
👉 Order your ViewSonic pro7827HD color wheel replacement today – eliminate noise and color distortion
