Quick Reference

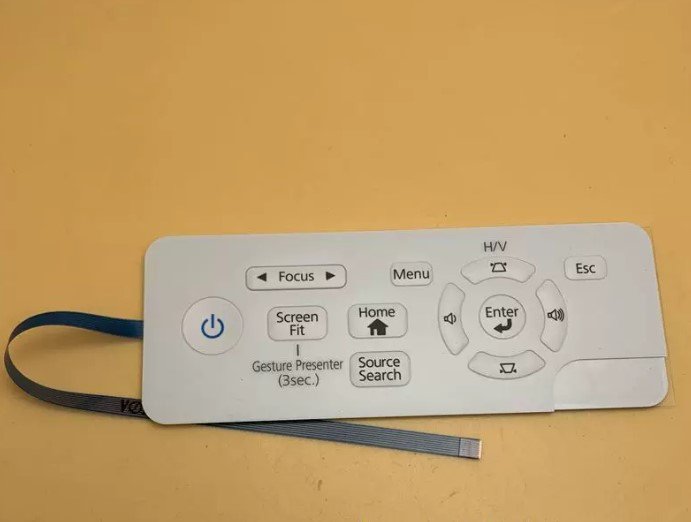

This is the original specification control panel (button board) for the Epson EB-1785W and EB-1795F series. If your projector’s top panel keys are unresponsive, sticky, or the board is cracked, this replacement restores full functionality. Compatible with North American PowerLite 1785W and 1795F models as well.
Model Compatibility
This control panel is designed for the following Epson portable projector models. All share the same button board layout and connector type.
- Epson EB-1785W – WXGA portable business projector
- Epson EB-1795F – Full HD 1080p wireless portable projector
- Epson PowerLite 1785W – North American variant
- Epson PowerLite 1795F – North American variant
- Epson EB-1781W – Shares the same control panel assembly
Source: Epson PowerLite 1785W / 1795F User Manual (Control Panel Parts Diagram). The manual explicitly lists PowerLite 1781W, 1785W and 1795F as sharing identical control panel components. The EB-1785W and EB-1795F user documentation confirms the same part is used across the EB and PowerLite series.
Control Panel Functions
The button board includes the complete keypad assembly. Below is the full layout based on the official Epson parts reference.
| Button | Function |
|---|---|
| Power | Turns the projector on or off |
| Screen Fit | Auto corrects shape and position; hold 3 sec for Gesture Presenter |
| Home | Displays and closes the home screen |
| Source Search | Switches to the next input source |
| Enter + Arrow Buttons | Selects menu options and confirms selections |
| Keystone (Vertical/Horizontal) | Corrects trapezoid distortion |
| Esc | Cancels or exits current function |
| Volume +/- | Adjusts speaker volume |
| Menu | Accesses projector settings and adjustments |
| Focus | Adjusts image focus clarity |
The table above reflects the factory button layout as documented in Epson’s official service reference for the PowerLite 1780W/1781W/1785W/1795F series.
Product Specifications
| Specification | Details |
|---|---|
| Part Reference | Epson Control Panel Assembly (full button board) |
| Compatible Models (Global) | EB-1785W, EB-1795F, EB-1781W |
| Compatible Models (North America) | PowerLite 1785W, PowerLite 1795F |
| Condition | New, original manufacturer specification |
| Installation | Direct replacement for top control panel cover |
| Warranty | 12 months against manufacturing defects |
Quality & Support
- Condition: New, unused. No refurbished units. No aftermarket clones.
- Return policy: 90-day hassle-free returns. Changed your mind? No problem.
- Warranty: 1 year. If it fails due to a manufacturing defect, we replace it.
- Shipping: Dispatched within 24 hours on business days. Tracking number provided.
Installation Note
This is a direct plug-and-play replacement for the original control panel. Installation requires opening the projector’s top housing and disconnecting the ribbon cable. If you are not comfortable with internal repairs, professional installation is recommended. For reference, the official Epson service manual provides step-by-step disassembly instructions.
