Epson H838R Red Polarizer – Genuine Replacement for S05 / S05E / X05 / U05 / W05 / X39 / S41 / X41 Projectors
If your Epson business projector is showing a red color cast across the entire image, uneven red tinting (one side of the screen looks redder than the other), or the red channel appears washed out with poor contrast – the red polarizer inside the optical engine has likely degraded. This genuine Epson H838R red polarizer plate is the exact replacement part that restores proper red channel performance.

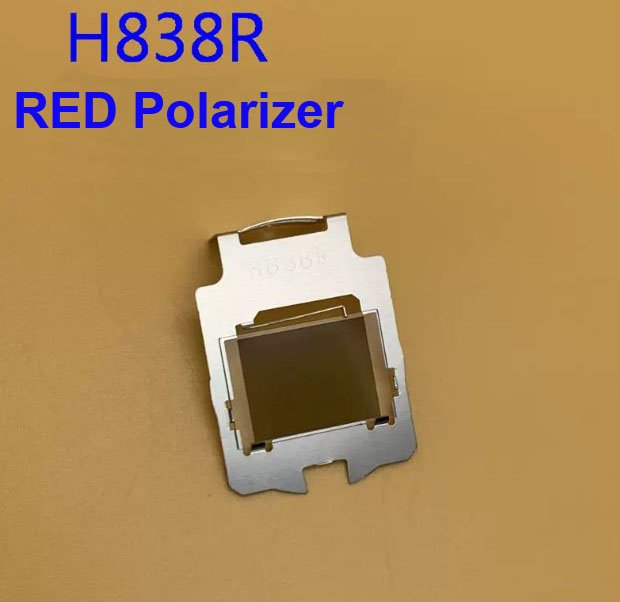

It’s not a refurbished pull or a generic polarizer sheet. Original Epson polarizing film with the correct light transmission angle and heat resistance. The part is labelled H838R – specifically for the red LCD panel channel.
| Compatible Models | Epson CB‑S05, CB‑S05E, CB‑X05, CB‑U05, CB‑W05, CB‑X39, CB‑S41, CB‑X41 (also fits EB‑S05, EB‑X05, EB‑U05, EB‑W05, EB‑X39, EB‑S41, EB‑X41 – XGA/WXGA business series) |
|---|---|
| Part Number / Label | H838R – Red channel polarizer (part of the 3LCD optical engine polarizer set) |
| Component Type | Red Polarizer Plate / Red Polarizing Film – Mounted before or after the red LCD panel in the light path |
| Condition | New, original Epson service part (not refurbished or third‑party) |
| Installation | Requires optical engine disassembly – advanced repair. The polarizer is mounted on a glass plate directly in front of the red LCD panel. |
| Common Failure Signs | • Red color cast across the entire image – whites look pinkish or reddish • Uneven red tint – left or right side of the image is redder than the other • Poor contrast in the red channel – reds look washed out or orange • Blotchy red patches that move when you change focus • Projector has high lamp hours (3,000‑5,000+ hours) with original polarizers |
| Alternative Names | 红色偏光片, Red Polarizer, R‑Polarizer, LCD Polarizer, Polarizing Plate |
Why the red polarizer fails – and why you need the genuine H838R
In Epson’s 3LCD projectors, each color channel (red, green, blue) has its own polarizer plate before and after the LCD panel. The polarizers are exposed to intense light and heat from the UHE lamp. Over time (typically 3,000‑8,000 lamp hours), the polarizing film can:
- Yellow or burn – the film changes color, causing a red or pink tint.
- Delaminate – the film separates from the glass, creating uneven patches or blurry areas.
- Fade – the polarizing efficiency drops, reducing contrast in that color channel.
The red channel is particularly susceptible to heat damage because red light carries less energy but the polarizer is still exposed to full lamp IR radiation. Generic polarizer sheets may have the wrong transmission axis angle or lower heat resistance, leading to quick failure or incorrect color balance. This genuine H838R red polarizer has the exact polarizing angle and heat tolerance for the S05/X05 series optical engines.
Which polarizer do you need? Red, Green, or Blue?
To identify which polarizer has failed, display full red, green, and blue screens using a test pattern generator or PowerPoint slides:
- Red screen looks uneven, blotchy, or has poor brightness – the red polarizer (H838R) is likely bad.
- Green screen has issues – you need the green polarizer (H838G).
- Blue screen has issues – you need the blue polarizer (different part number).
If the entire image has a red tint on all colors, the red polarizer before the LCD panel (pre‑polarizer) is usually the culprit. If only the red channel looks washed out but white balance is correct, the post‑polarizer may be failing.
Restore your Epson business projector – not the whole unit
Replacing the H838R red polarizer requires opening the optical engine. This is an advanced repair best performed by experienced technicians. The polarizer plate is held in a metal frame with two screws. Carefully note the orientation of the original polarizer (the film side faces the LCD panel). Once replaced, the red channel will return to full contrast and even illumination – no more red tints, no more blotchy patches. Your Epson business projector will deliver factory‑spec image quality again, without the cost of a full optical engine replacement.
Note: Before ordering, remove the top cover and optical engine shield, and locate the red polarizer (it is typically labeled R or has a red dot on the frame). Send us a photo showing the original H838R part number stamp to confirm compatibility. Also, check that your issue is not simply an incorrect color temperature setting in the menu – reset the projector to factory defaults before assuming polarizer failure.
