NUBM07 Laser Diode Module – Product Overview
The NICHIA NUBM07 Laser Diode Bank is a high-power blue laser light source, delivering 23W output at 465nm. It features an 8-series configuration with 8 collimated beams. Ideal for precise optical performance in high-intensity laser projectors & TVs, engraving, stage lighting, and scientific applications.

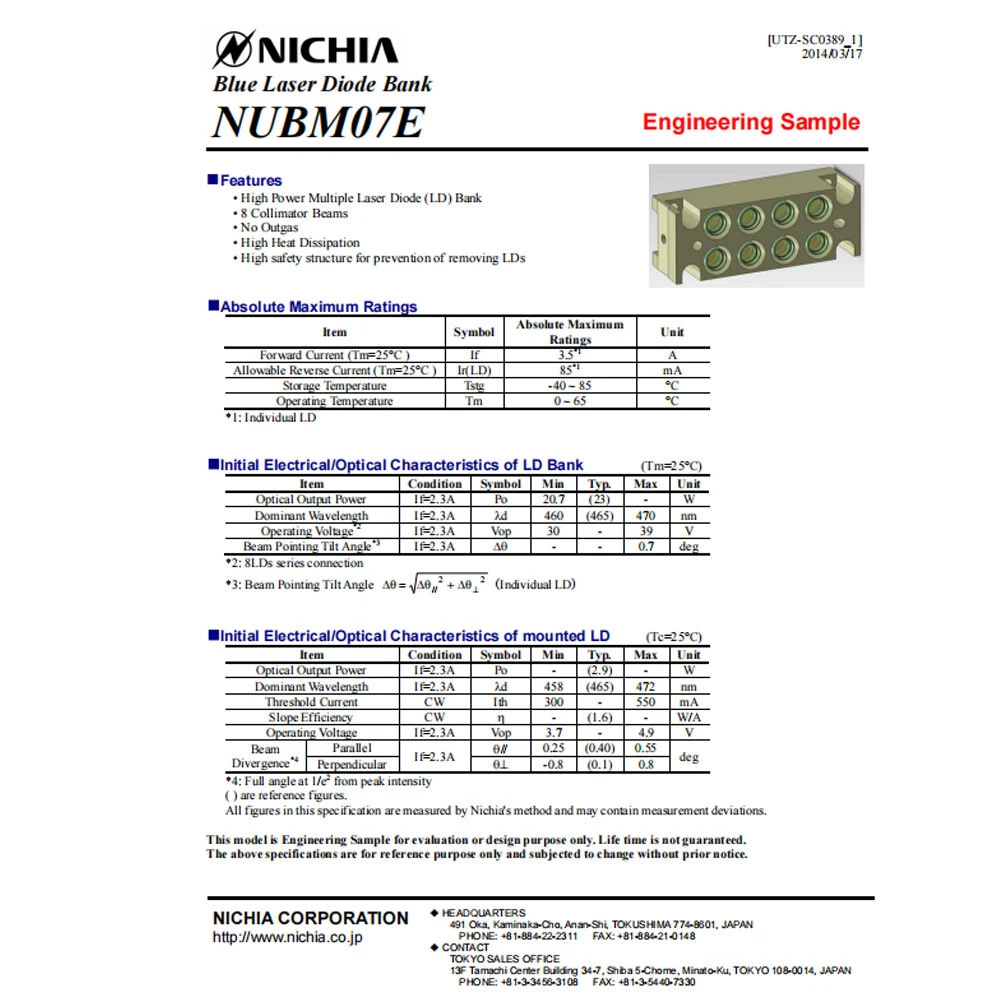

NUBM07 Specifications
| Product Name and Model | Nichia NUBM07 Laser Diode Bank |
|---|---|
| Beams | 8 collimated beams |
| Configuration | 8 series |
| Drive Current | < 3.5A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 65°C |
| Optical Output Power | 23W |
| Wavelength | 465nm |
| Voltage | 30V to 39V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Nichia Laser Diode Applications
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
