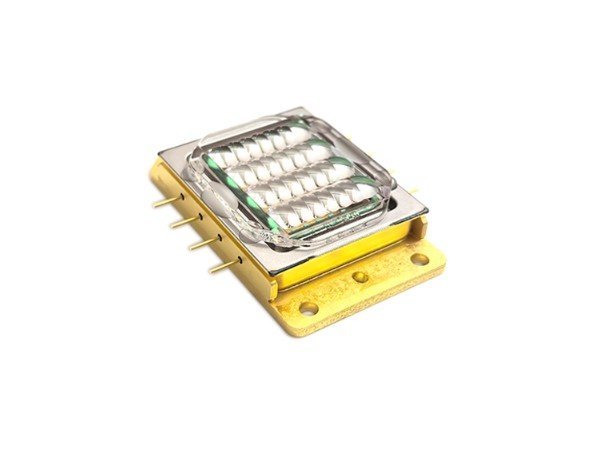

NICHIA NUBM3L Laser Diode Array Overview
The NICHIA NUBM3L is a high-power blue laser diode array delivering 164W output at 455nm. It features a multi-transverse mode configuration with collimated beams for precise optical performance.
NUBM3L Specifications
| Product Name and Model | Nichia NUBM3L Blue Laser Array |
|---|---|
| Configuration | Multi-transverse mode (please contact for exact beam count) |
| Drive Current | < 3.5 A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 75°C |
| Optical Output Power | 164W |
| Wavelength | 455nm |
| Voltage | 104V to 116V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Applications
The NICHIA NUBM3L is ideal for:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
Compatible driver: A custom-designed driver for the NUBM3L is available. Click here for driver details.
