NUBM0A Laser Module – Product Overview

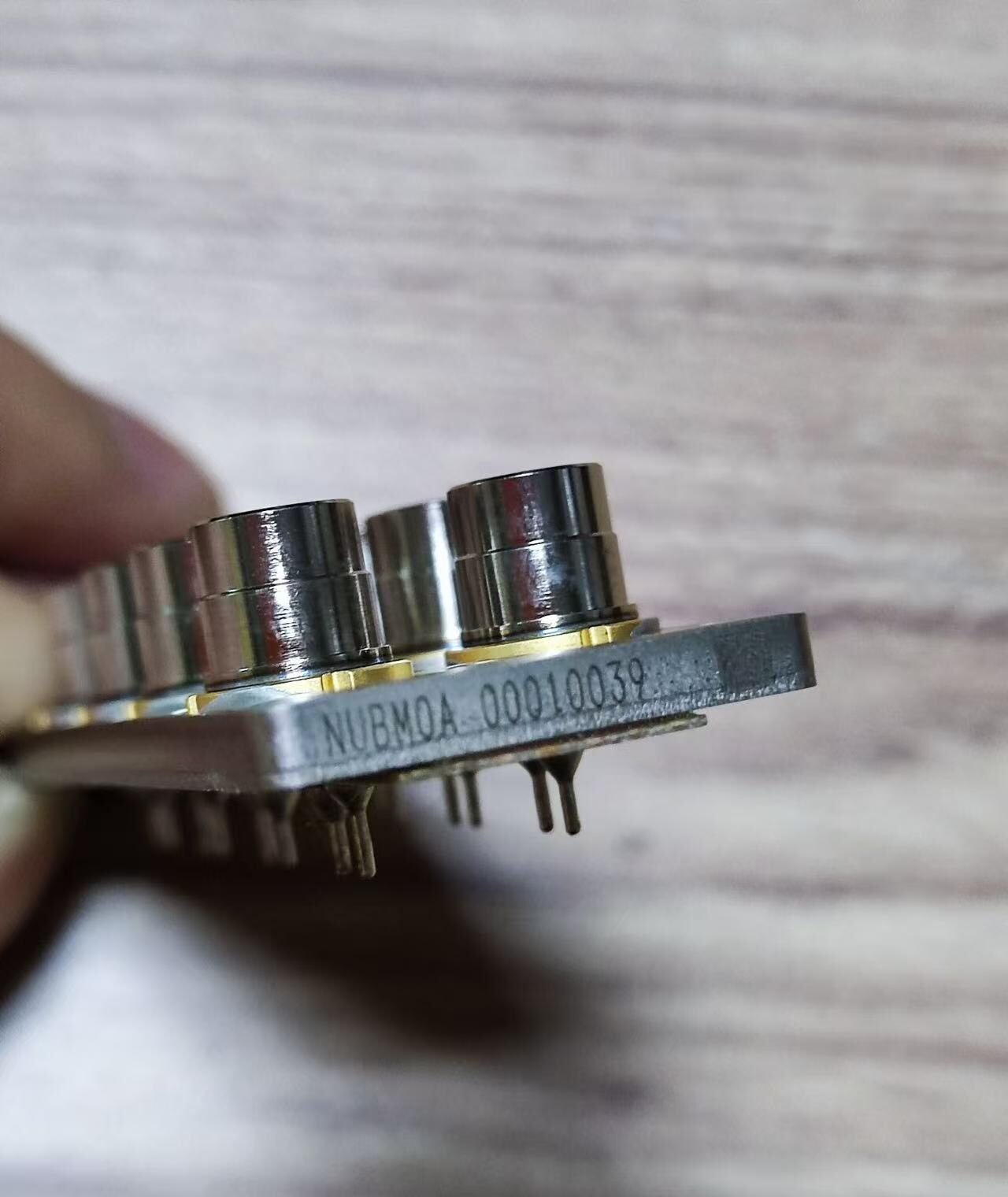

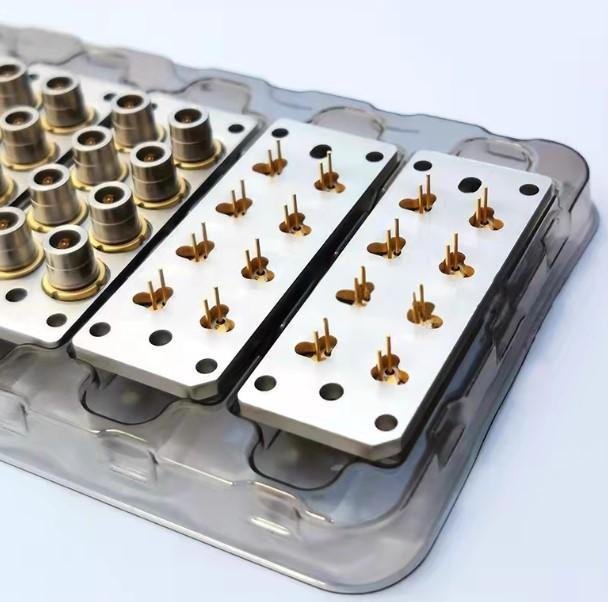

The NICHIA NUBM0A Laser Diode Module is a high-power blue laser array bank delivering 38W output at 455nm. It features an 8-series configuration with 8 collimated beams and is ideal for precise optical performance in applications such as high-intensity laser projectors & TVs, engraving, stage lighting, and scientific research.

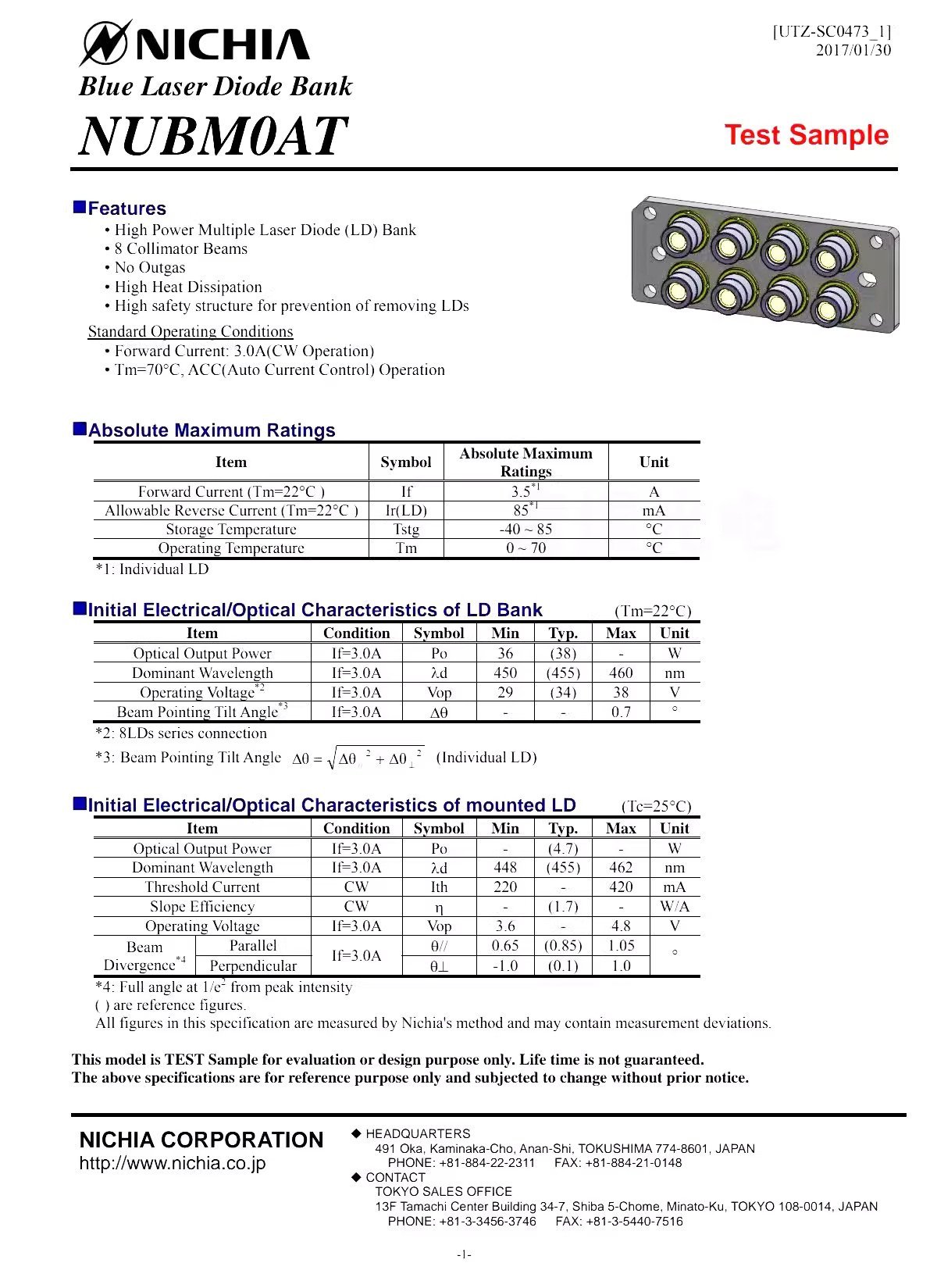

NUBM0A Specifications
| Product Name and Model | Nichia NUBM0A Laser Diode Bank |
|---|---|
| Beams | 8 collimated beams |
| Configuration | 8 series |
| Drive Current | < 3.5A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
| Optical Output Power | 38W |
| Wavelength | 455nm |
| Voltage | 29V to 38V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Nichia Laser Diode Applications
The NICHIA NUBM0A is widely used in:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
