NICHIA NUBM3K 455nm 112W Blue Laser Module
The NICHIA NUBM3K laser unit is a high-power blue laser module, delivering 112W output at 455nm, designed for demanding optical applications such as laser projection, industrial systems, and scientific research.

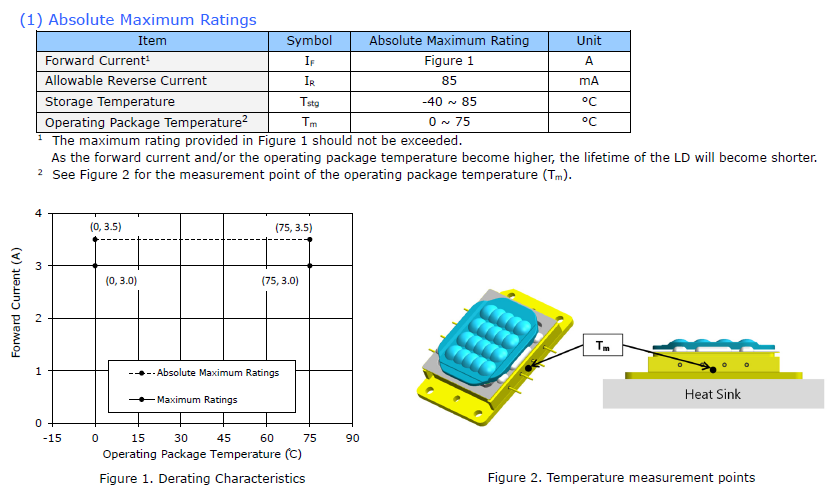

NUBM3K Specifications
| Product Name and Model | Nichia NUBM3K Blue Laser Module |
|---|---|
| Optical Output Power | 112W |
| Wavelength | 455nm |
| Voltage | 74V to 84V |
| Drive Current | < 3.5 A |
| Operating Temperature | 0°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Key Features
- High-power multi-laser diode bank
- Compact diode array module with mounting bracket and high heat dissipation
- Easy integration with compatible laser drivers
Applications
- Laser projection systems
- Laser engraving and cutting
- Scientific research and laboratory use
- Industrial and medical laser equipment
- Laser lighting and stage effects
- Large-scale laser landmark installations
Compatible driver: A custom-designed driver for the NUBM3K is available. Click here for driver details.
