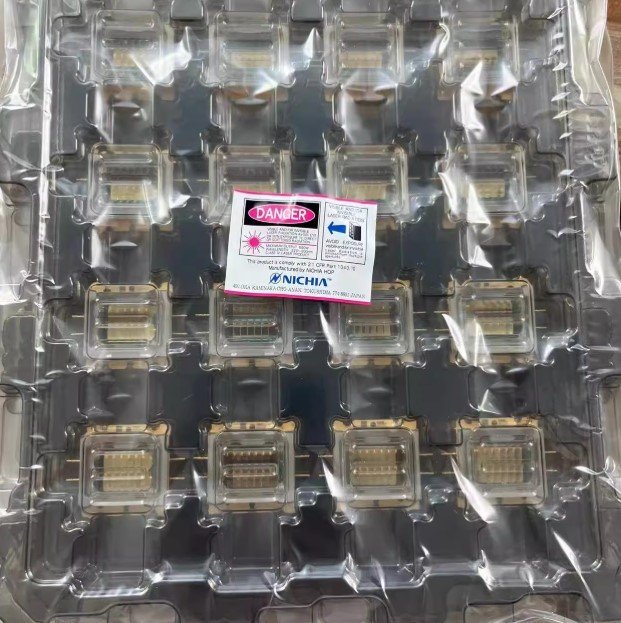

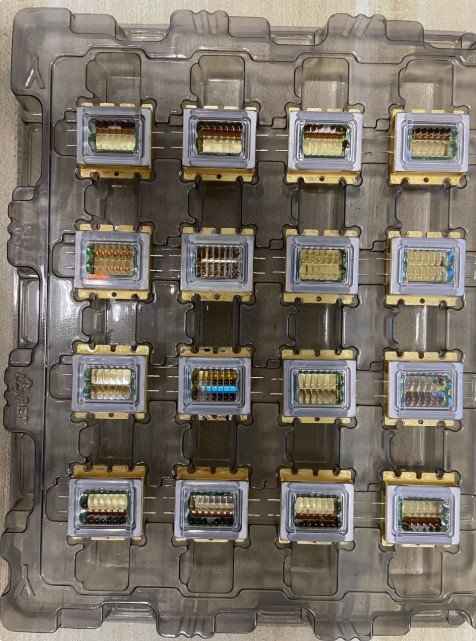

Nichia NUBM35 Laser Module – 455nm, 67W Blue Diode Array
The NICHIA NUBM35 laser module is a high-performance blue laser diode array delivering 67W optical output at 455nm. Designed for demanding optical applications, it is ideal for laser projection, industrial systems, and scientific research.
Key Features
- 14 collimated blue laser diodes (4.75W each, 67W total)

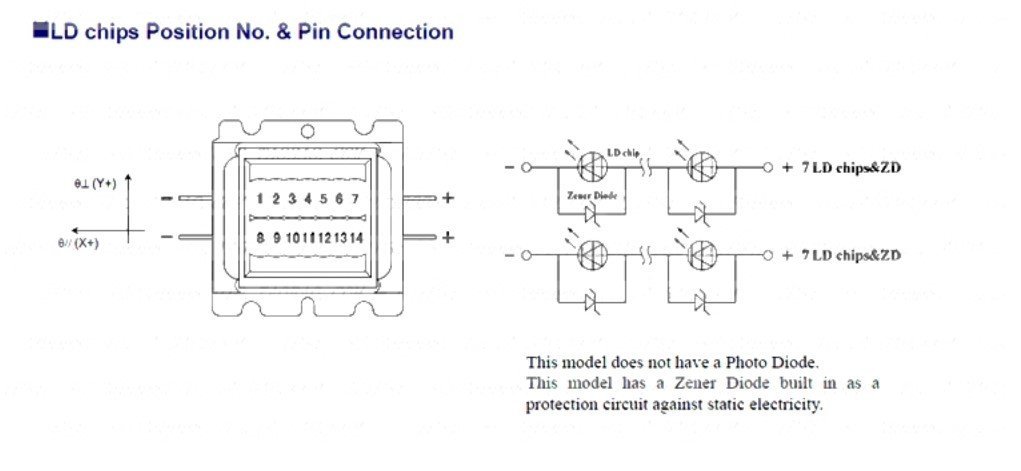

- 7-series x 2-parallel diode configuration

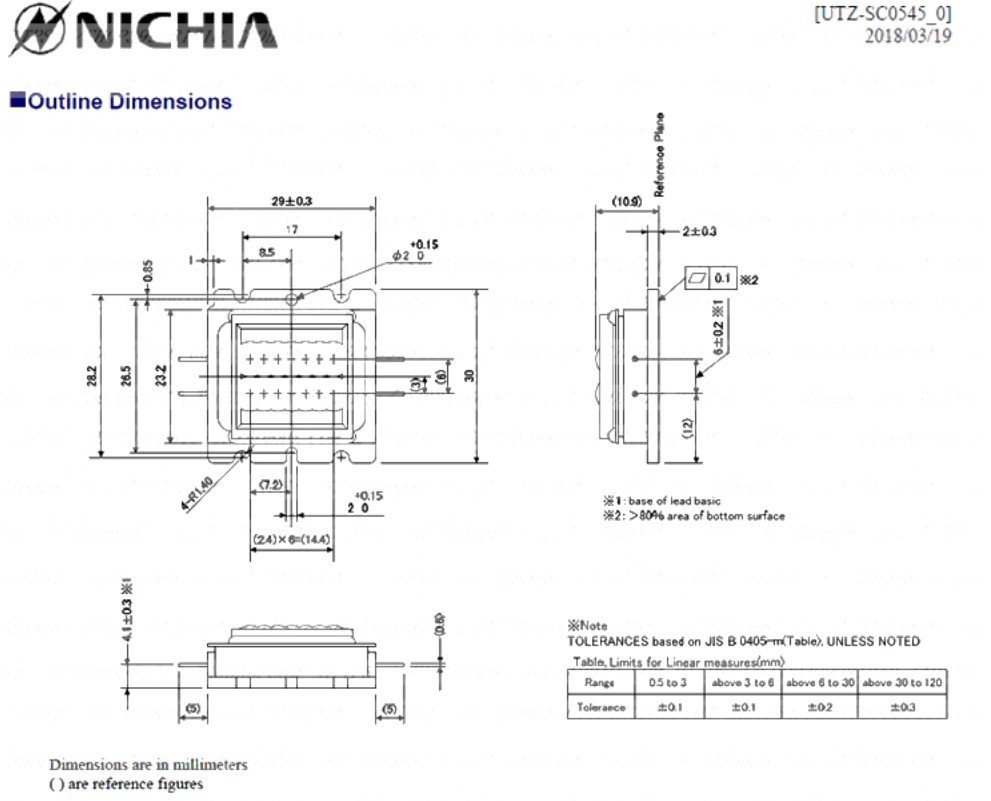

- Compact array module with mounting bracket and efficient heat dissipation
- Easy integration with compatible laser drivers

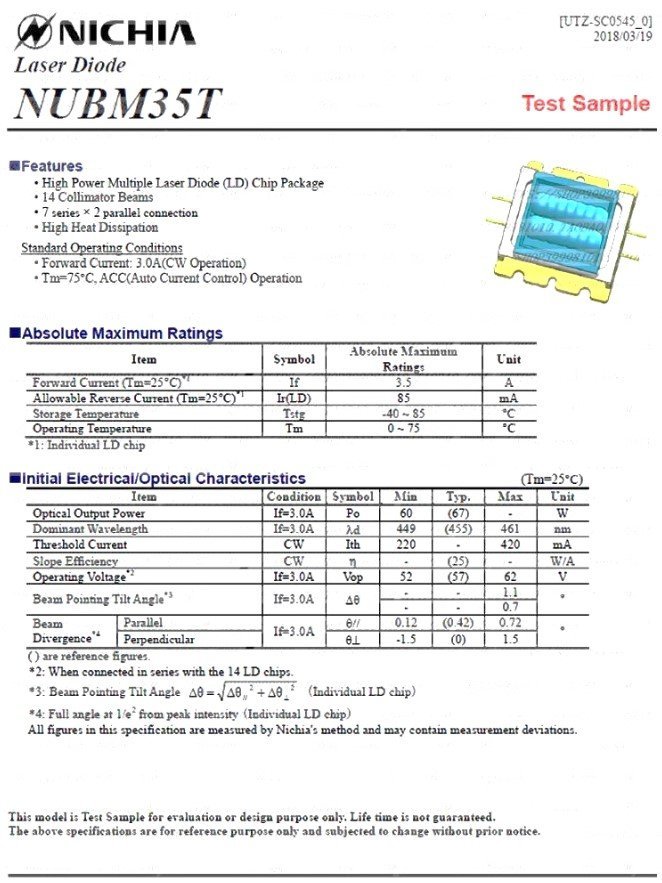

Specifications
| Product Name and Model | Nichia NUBM35 Blue Laser Module |
|---|---|
| Optical Output Power | 67W (14 × 4.75W) |
| Wavelength | 455nm |
| Voltage | 57V |
| Drive Current | < 3.5 A |
| Operating Temperature | 0°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Applications
- High-brightness laser projection systems
- Laser engraving, cutting, and marking machines
- Scientific and laboratory optical experiments
- Industrial and medical laser equipment
- Laser stage lighting and architectural landmark displays
Optional driver: We offer a custom-designed driver for the NUBM35 module. Click here for driver details.
