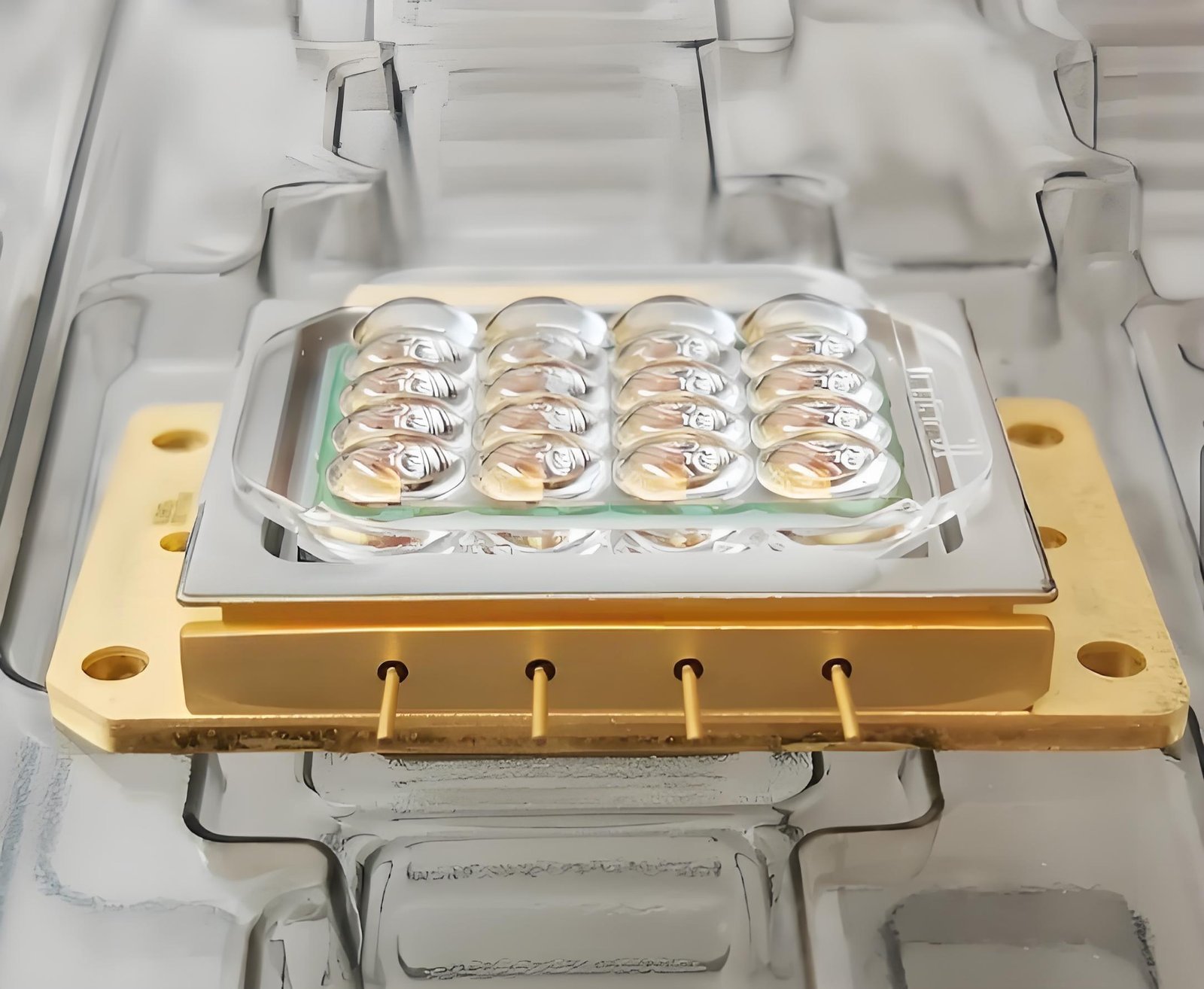

NICHIA NUBM36 455nm 105W Blue Laser Diode Array
The NICHIA NUBM36 laser projection light source is a high-power blue laser diode array, delivering 105W output at 455nm, designed for demanding optical applications such as laser projection, industrial systems, and scientific research.
NUBM36 Specifications
| Product Name and Model | Nichia NUBM36 Blue Laser Array |
|---|---|
| Configuration | 5-series x 4-parallel (20 beams) |
| Optical Output Power | 105W |
| Wavelength | 455nm |
| Voltage | 77V to 87V |
| Drive Current | < 3.5 A |
| Operating Temperature | 0°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Package | TO5 (9mm) |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Key Features
- 20 collimated beams (5-series x 4-parallel)
- Compact array module with mounting bracket and high heat dissipation
- Easy integration with compatible laser drivers
Applications
The NICHIA NUBM36 is ideal for:
- Laser projection systems
- Laser engraving and cutting
- Scientific research and laboratory use
- Industrial and medical laser equipment
- Laser lighting and stage effects
- Large-scale laser landmark installations
Compatible driver: A custom-designed driver for the NUBM36 is available. Click here for driver details.
