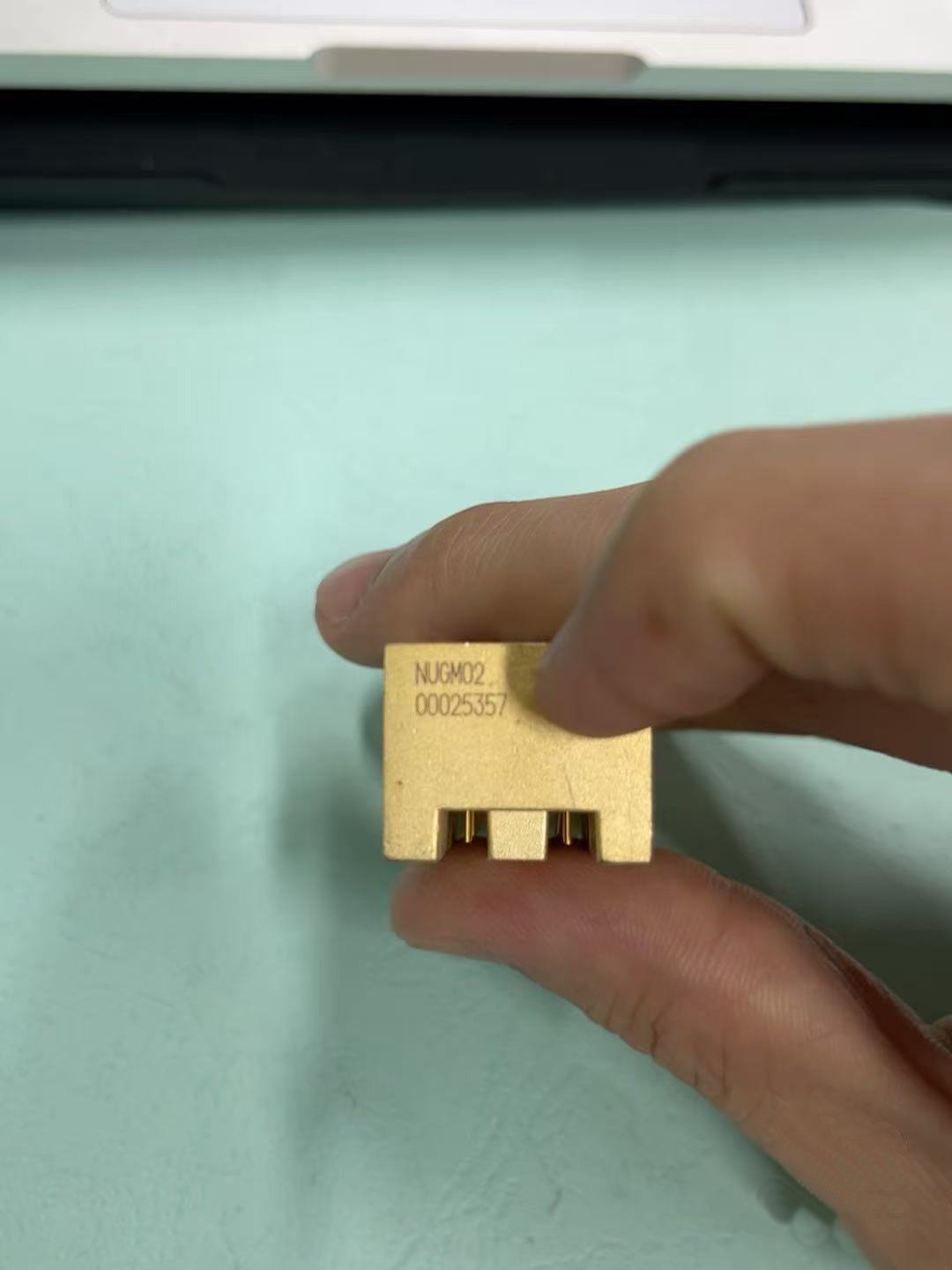

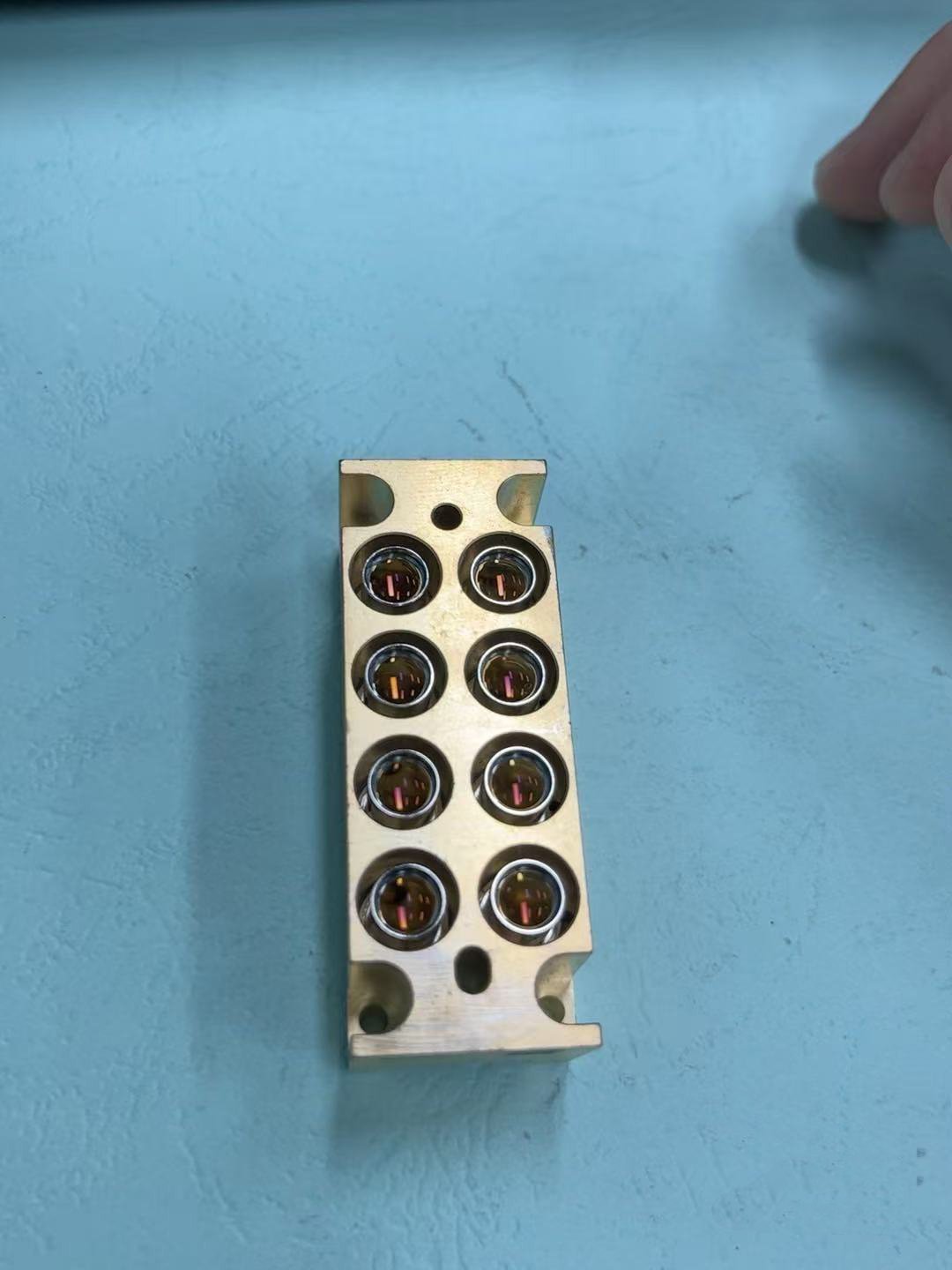

NUGM02 Green Laser Array Bank – Product Overview
The NICHIA NUGM02 Laser Diode Bank is a high-power green laser array bank, delivering 7W output at 520nm. It features an 8-series configuration with 8 collimated beams. It’s ideal for precise optical performance, such as high-intensity laser projectors & TVs, engraving, stage lighting, and scientific applications.

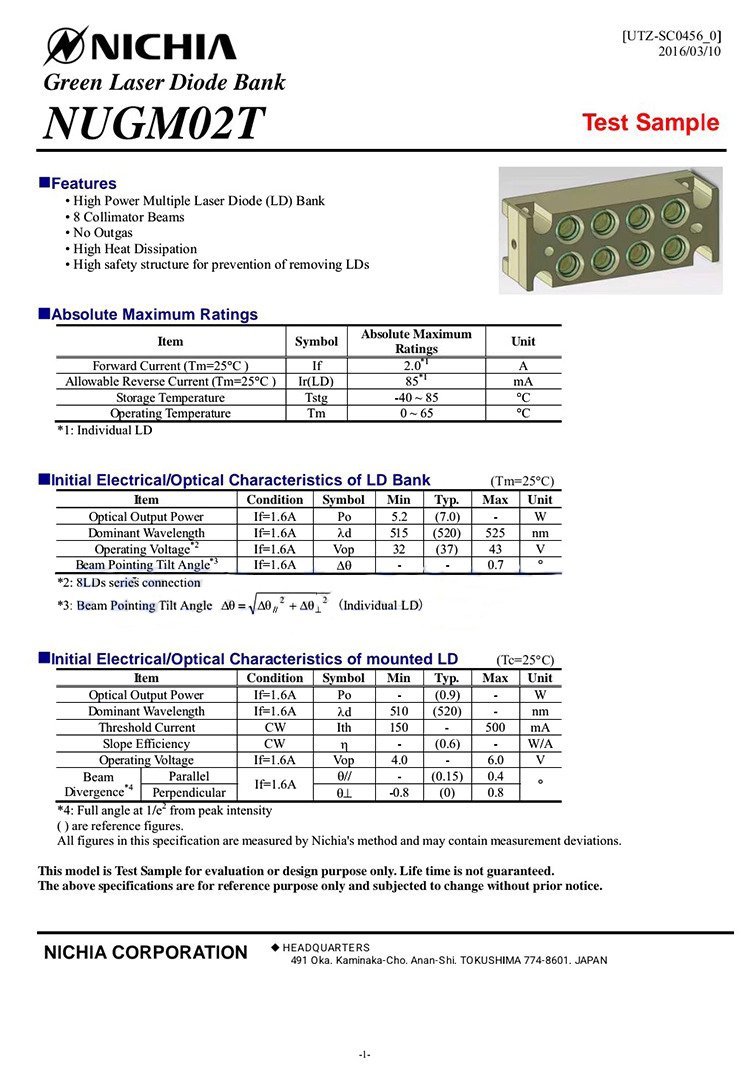

NUGM02 Specifications
| Product Name and Model | Nichia NUGM02 Green Laser Diode Bank |
|---|---|
| Beams | 8 collimated beams |
| Configuration | |
| Drive Current | < 2 A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 65°C |
| Optical Output Power | 7W |
| Wavelength | 520nm |
| Voltage | 32V to 43V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Nichia Laser Diode Applications
The NICHIA NUGM02 is widely used in:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
