NUGM04 Laser Light Source – Product Overview

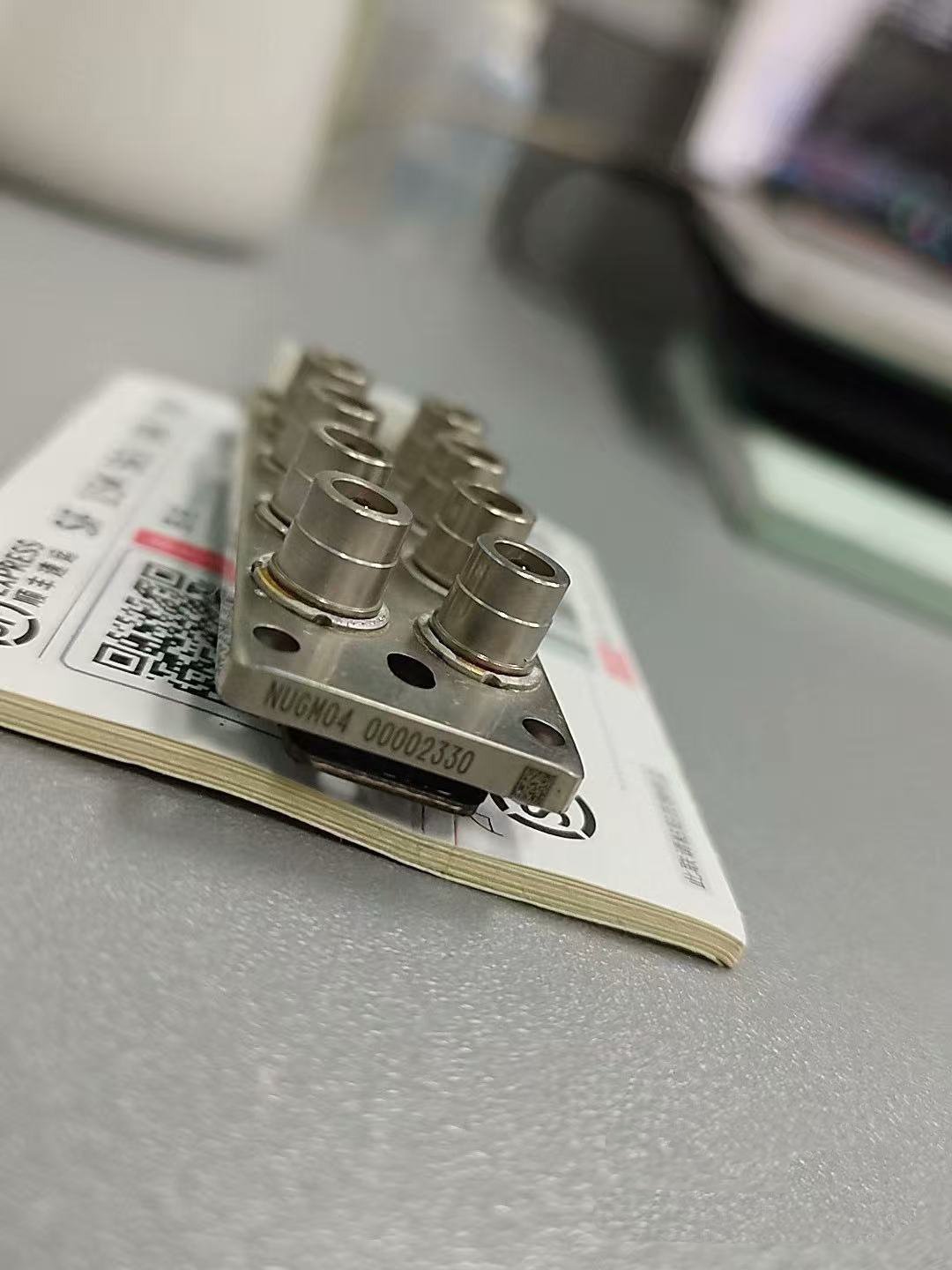

The NICHIA NUGM04 Laser Unit is a high-power green laser light source delivering 11W output at 525nm. It features an 8-series configuration with 8 collimated beams. This laser unit is ideal for precise optical performance in applications such as high-intensity laser projectors & TVs, engraving, stage lighting, and scientific research.

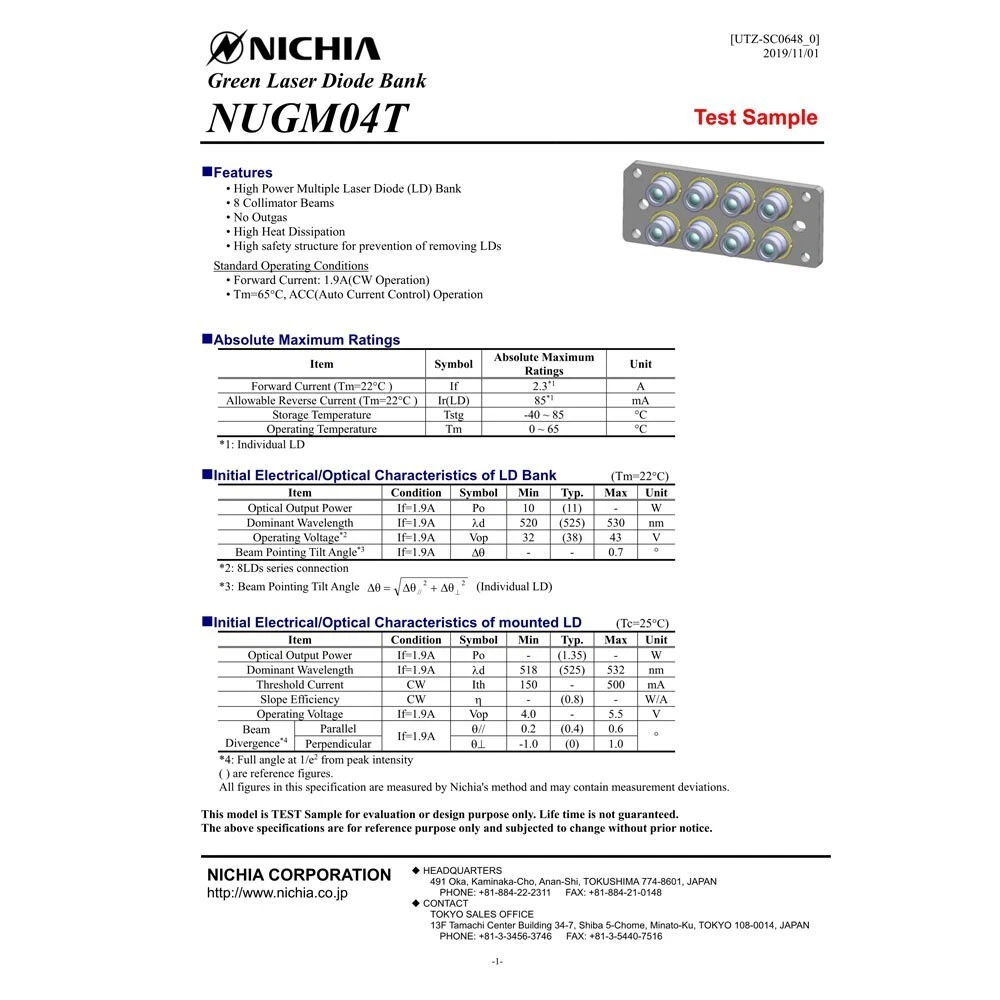

NUGM04 Specifications
| Product Name and Model | Nichia NUGM04 Laser Module |
|---|---|
| Beams | 8 collimated beams |
| Configuration | 8 series |
| Drive Current | < 3.5 A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 65°C |
| Optical Output Power | 11W |
| Wavelength | 525nm |
| Voltage | 46V to 56V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Nichia Laser Unit Applications
The NICHIA NUGM04 is widely used in:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
