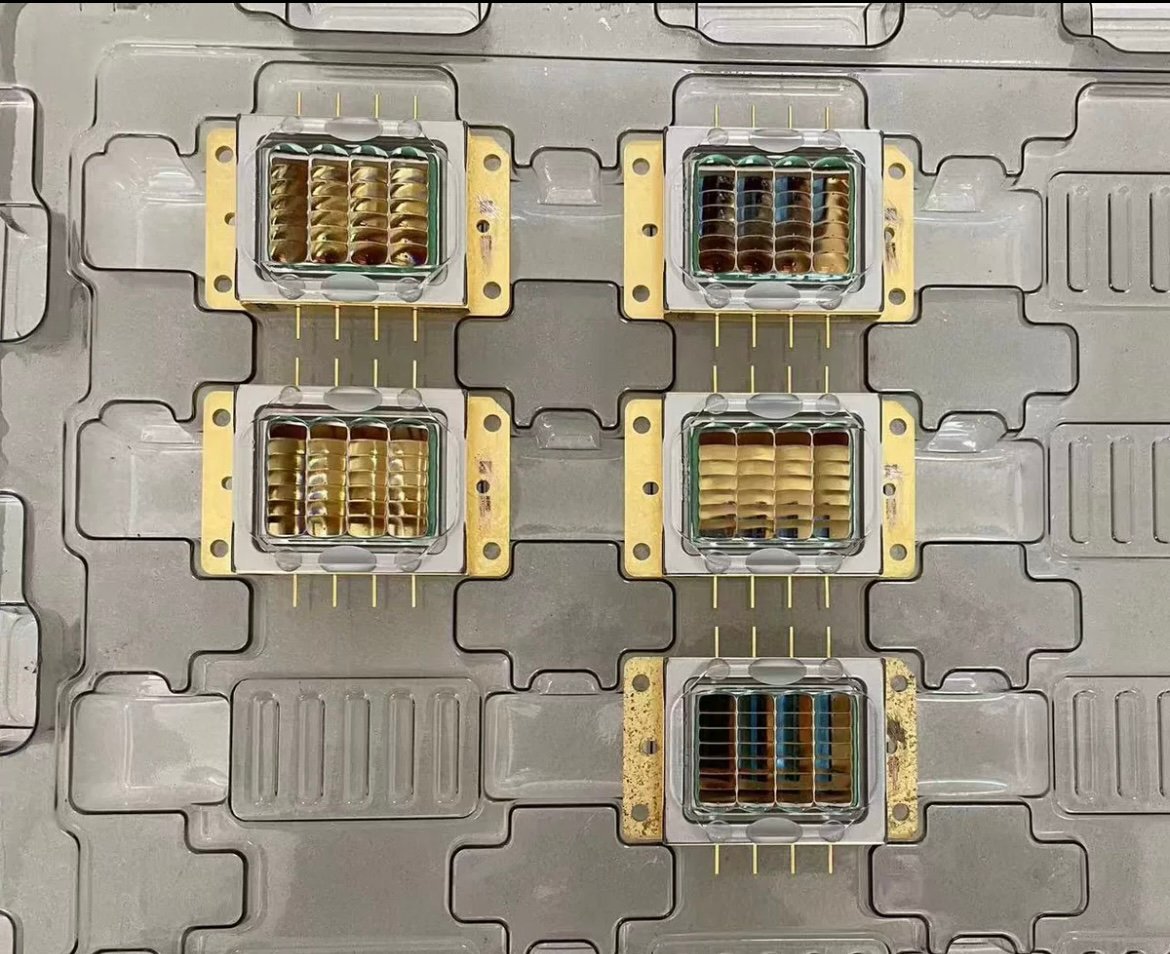

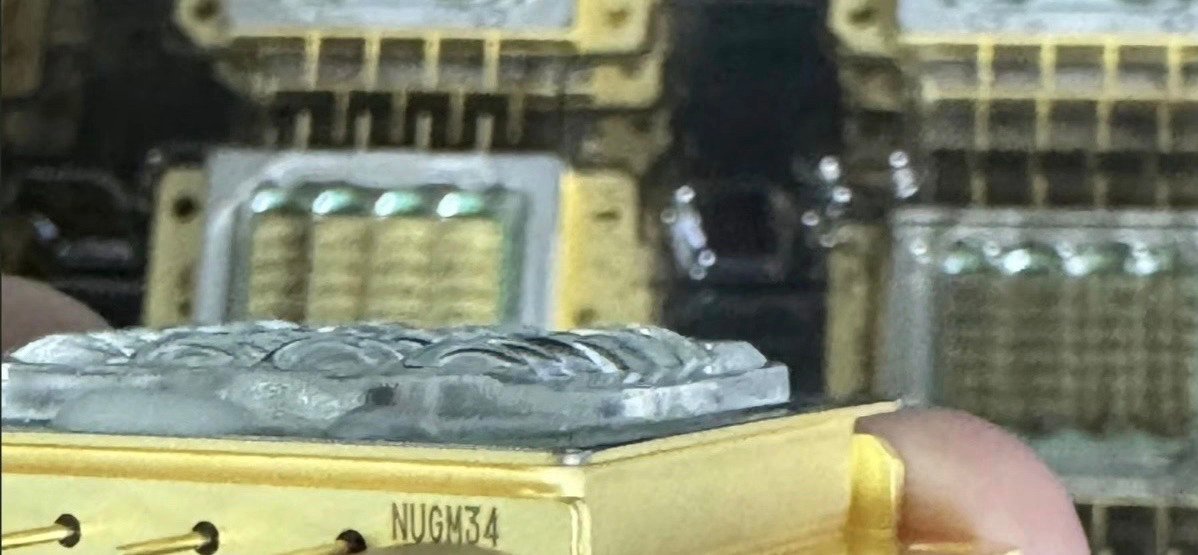

NUGM34 Laser Array Module – Product Overview
The NICHIA NUGM34 Laser Array Bank is a high-power green laser array module, delivering 47W output at 525nm. It features a 7-series x 4-parallel configuration with 28 collimated beams. It’s ideal for precise optical performance, such as high-intensity laser projectors & TVs, engraving, stage lighting, and scientific applications.

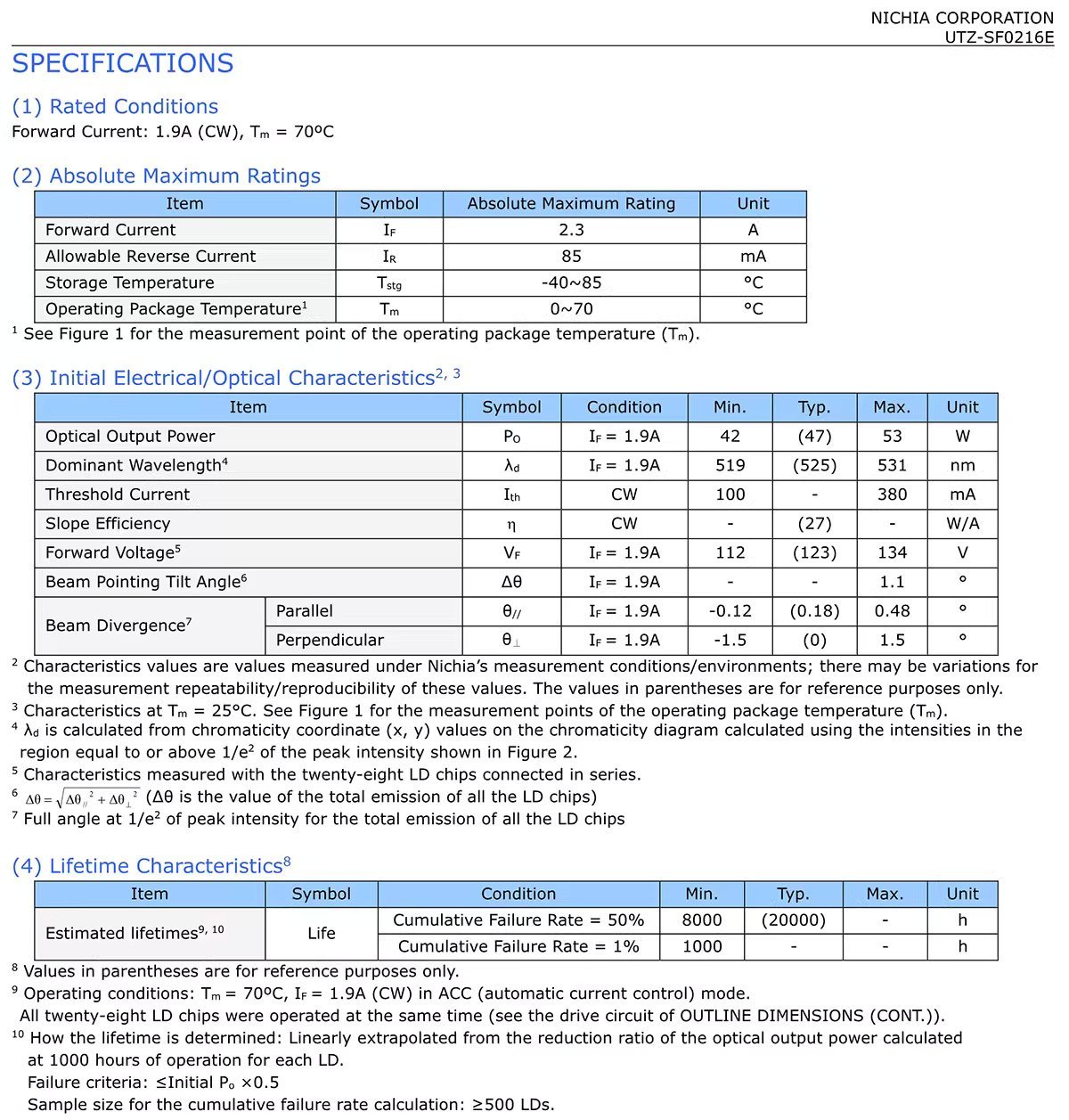

NUGM34 Specifications
| Product Name and Model | Nichia NUGM34 Laser Array Bank |
|---|---|
| Beams | 28 collimated beams |

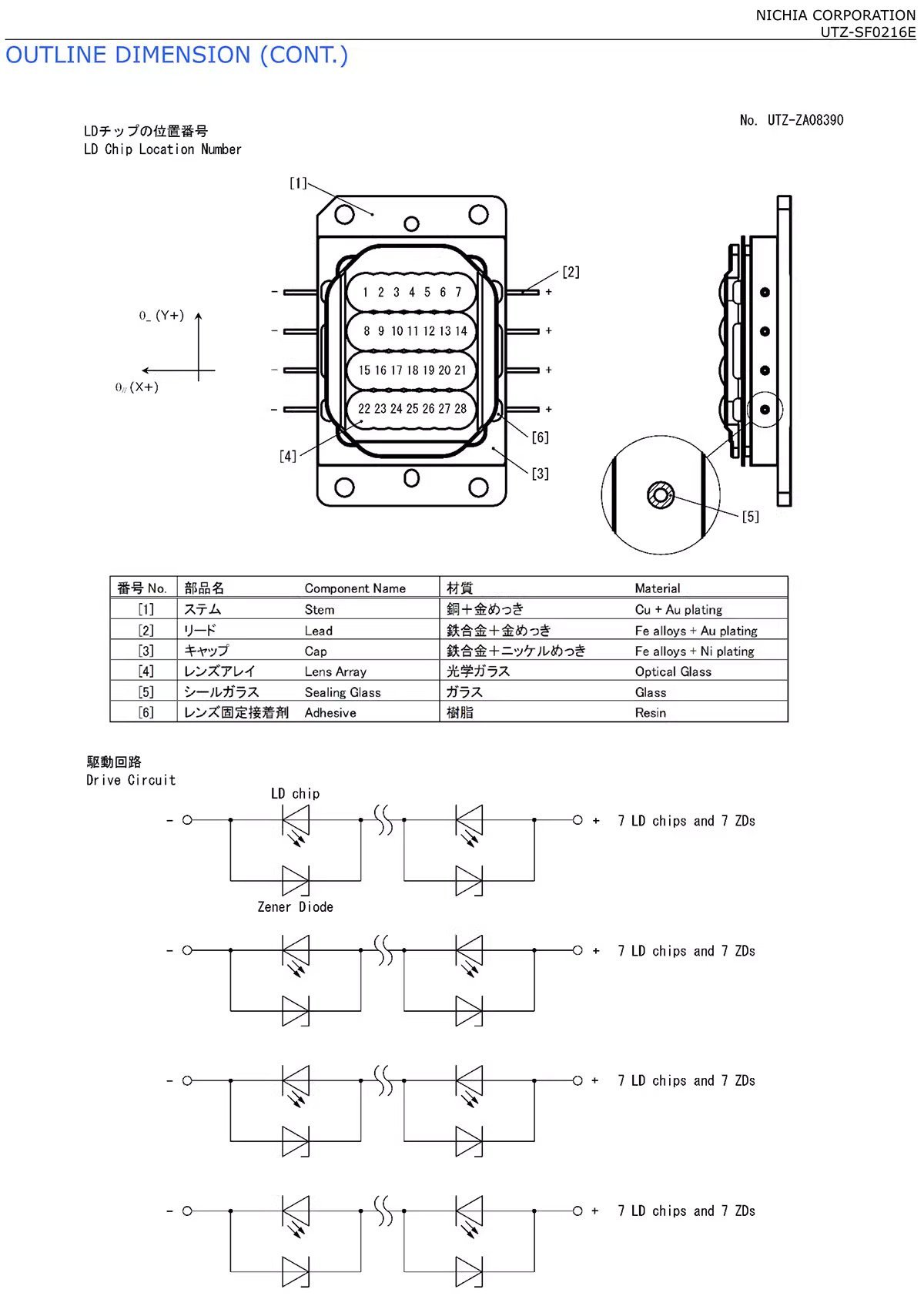

| Configuration | 7 series x 4 parallel |
| Drive Current | < 2.3 A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
| Optical Output Power | 47W |
| Wavelength | 525nm |
| Voltage | 112V to 134V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Nichia Laser Diode Applications
The NICHIA NUGM34 is widely used in:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
