NICHIA NUMM39 Laser TVs Light Source

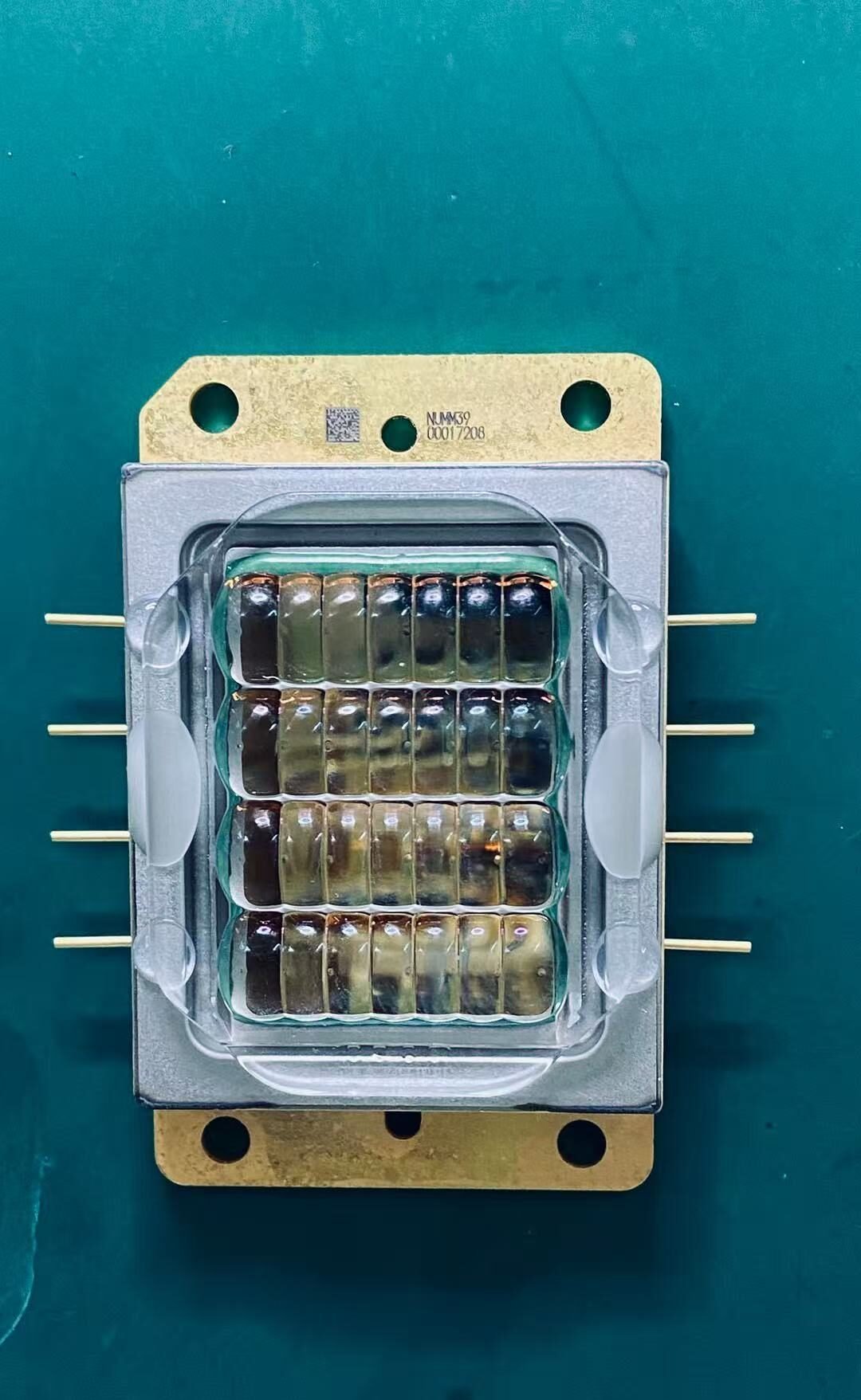

The NICHIA NUMM39 Multiple Laser Diode Array is a high-power RGB laser matrix featuring 7-series × 4 connections with 28 collimated beams. Multi-transverse mode design makes it ideal for laser projectors and laser TVs, ensuring precise optical performance and stable output.

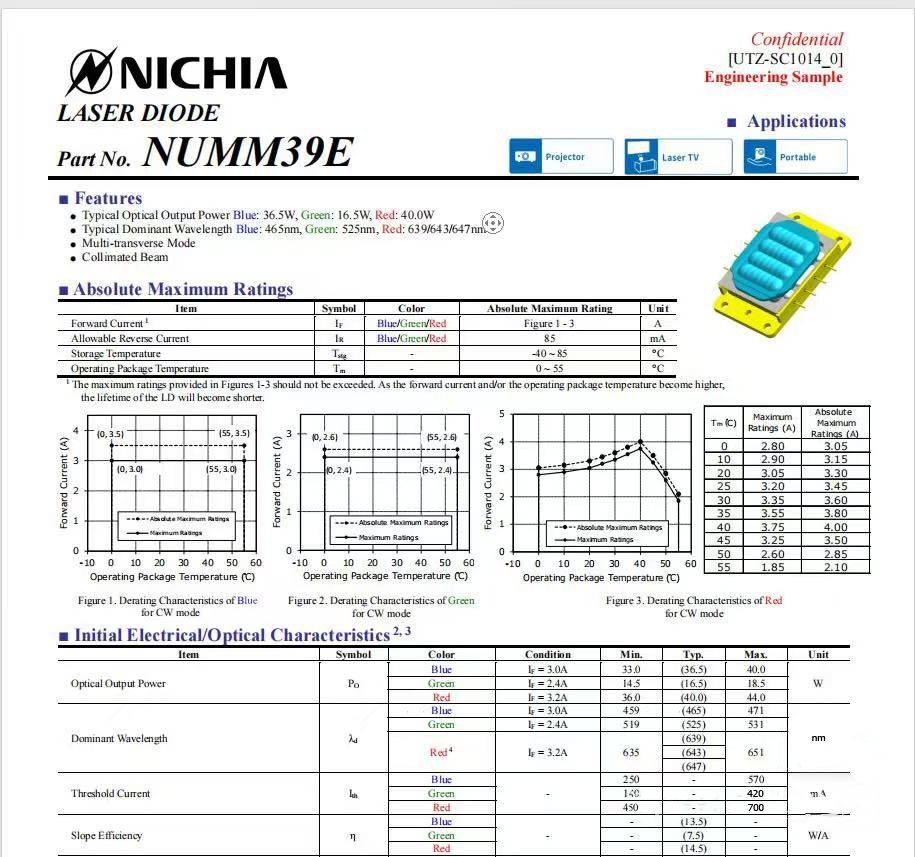

NUMM39 Specifications
| Product Name | Nichia Multiple Laser Diode Matrix |
|---|---|
| Model | NUMM39 |
| Beams | 28 collimated beams |
| Configuration | RGB multiple laser diode, 7-series × 4 connection |
| Optical Output Power | B: 36.5W, G: 16.5W, R: 40W |
| Wavelength | B: 465nm, G: 525nm, R: 639–647nm |
| Voltage | B: 13.5V, G: 7.5V, R: 14.5V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
NUMM39 Applications
Typical applications include:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
Optional Driver Circuit
We provide a custom-designed driver for the NUMM39 laser diode. Click here to purchase the compatible driver.
Why Choose NICHIA NUMM39?
Engineered by NICHIA for exceptional optical stability, NUMM39 ensures reliable performance under demanding conditions. Its robust packaging and precision optics make it suitable for both laser projectors and TVs.
Shipping & Warranty
- Ships within 24–72 hours
- Global tracked delivery (est. 14 business days)
- Shockproof protective packaging
- 30-Day worry-free returns
- 365-day warranty included
