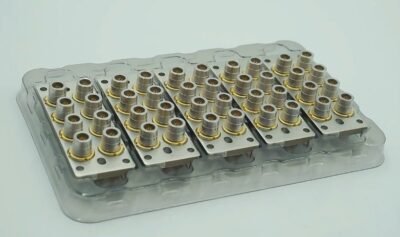

NICHIA NUBM0F Blue Laser Diode Module – 455nm, 44W (8×5.5W)
The NICHIA NUBM0F laser diode module is a high-power blue laser module delivering 44W total output (8 collimated beams × 5.5W) at 455nm. It features an 8-series configuration and is specially designed for laser projectors and laser TVs.
NUBM0F Specifications
| Product Name and Model | Nichia NUBM0F Laser Diode Module |
|---|---|
| Beams | 8 collimated beams |
| Configuration | 8-series |
| Drive Current | 3.5A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
| Optical Output Power | 44W (8 × 5.5W) |
| Wavelength | 455nm |
| Voltage | 29.0V to 37V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Applications
The NICHIA NUBM0F is ideal for:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
Compatible driver: A custom-designed driver for the NUBM0F is available. Click here for driver details.
