NICHIA NUBM46 455nm 30W Blue Laser Module (8×3.75W)
The NICHIA NUBM46 laser module is a high-power blue laser module, delivering 30W output at 455nm (8 × 3.75W), designed for demanding optical applications such as laser projection, industrial systems, and scientific research.

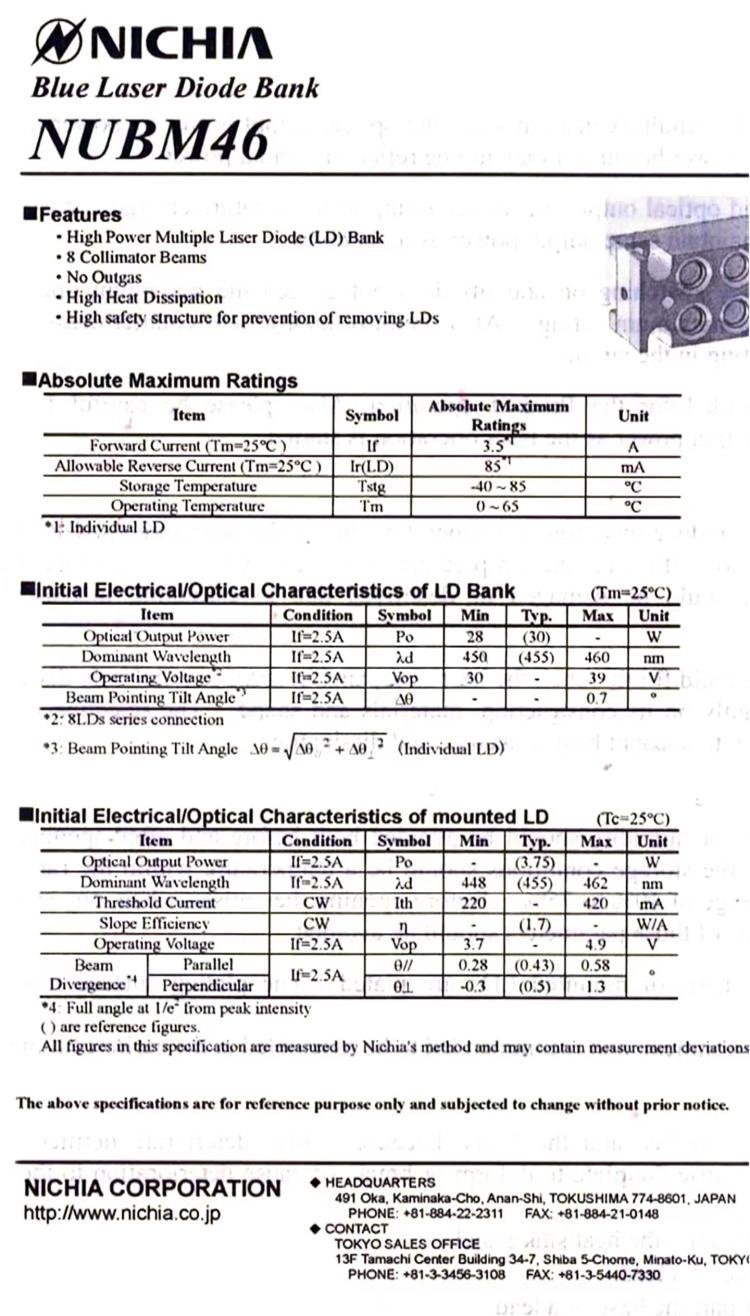

NUBM46 Specifications
| Product Name and Model | Nichia NUBM46 Blue Laser Module |
|---|---|
| Optical Output Power | 30W (8 × 3.75W) |
| Wavelength | 455nm |
| Voltage | 30V to 39V |
| Drive Current | < 3.5 A |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Key Features
- High-power multi-laser diode bank
- 8 collimated beams (8 × 3.75W)
- Compact diode array module with mounting bracket and high heat dissipation
- Easy integration with compatible laser drivers
Applications
- Laser projection systems
- Laser engraving and cutting
- Scientific research and laboratory use
- Industrial and medical laser equipment
- Laser lighting and stage effects
- Large-scale laser landmark installations
Compatible driver: A custom-designed driver for the NUBM46 is available. Click here for driver details.
