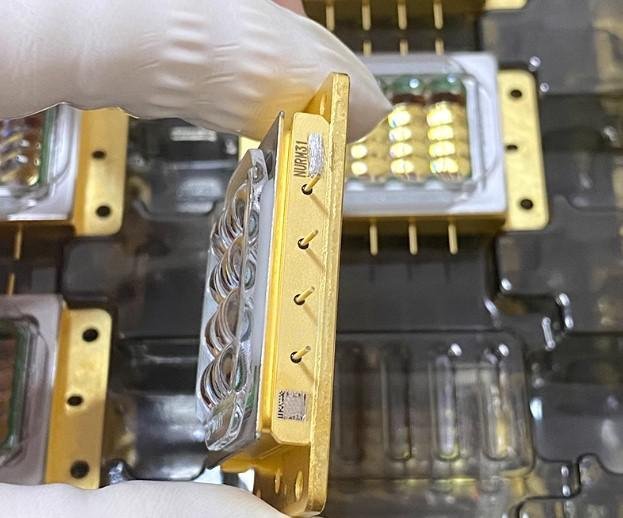

NURM31 Laser Diode Array Bank Module – Product Overview
The NICHIA NURM31 Laser Diode Array is a high-power red laser light source, delivering 43W output at 639nm & 643nm. It features a 6-series x 4-parallel configuration with 24 collimated beams. It’s ideal for precise optical performance, such as high-intensity laser projectors & TVs, engraving, stage lighting, and scientific applications.

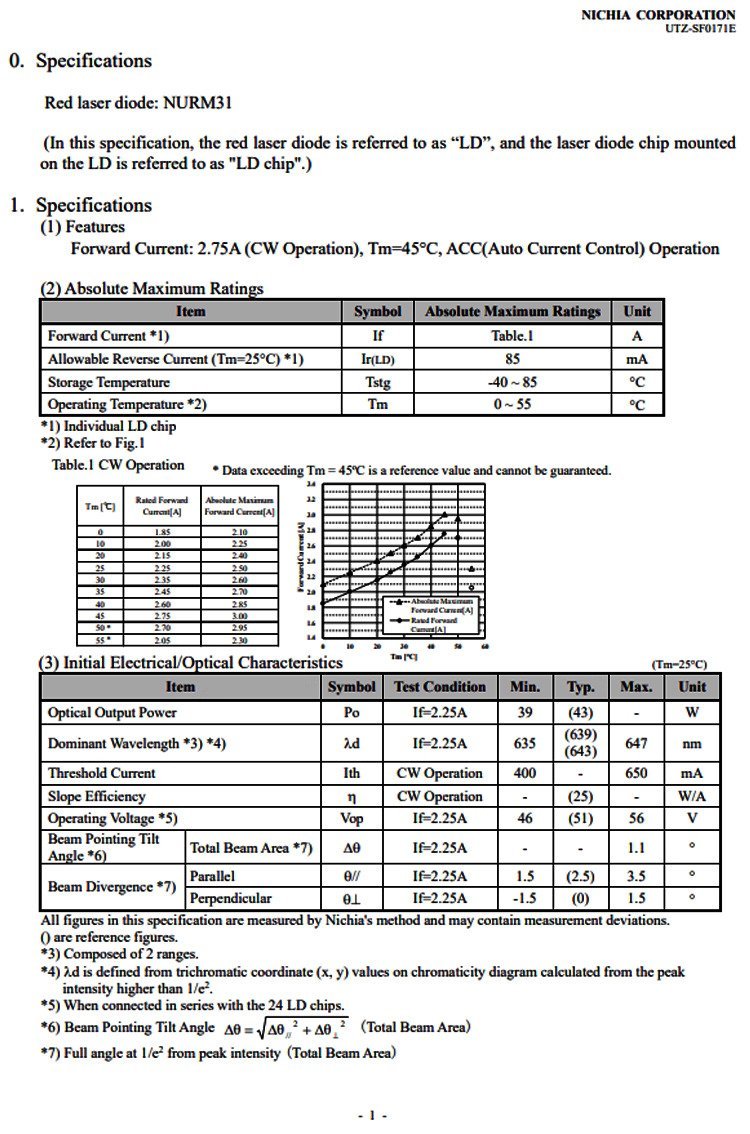

NURM31 Specifications
| Product Name and Model | Nichia NURM31 Laser Array Light Source |
|---|---|
| Beams | 24 collimated beams |

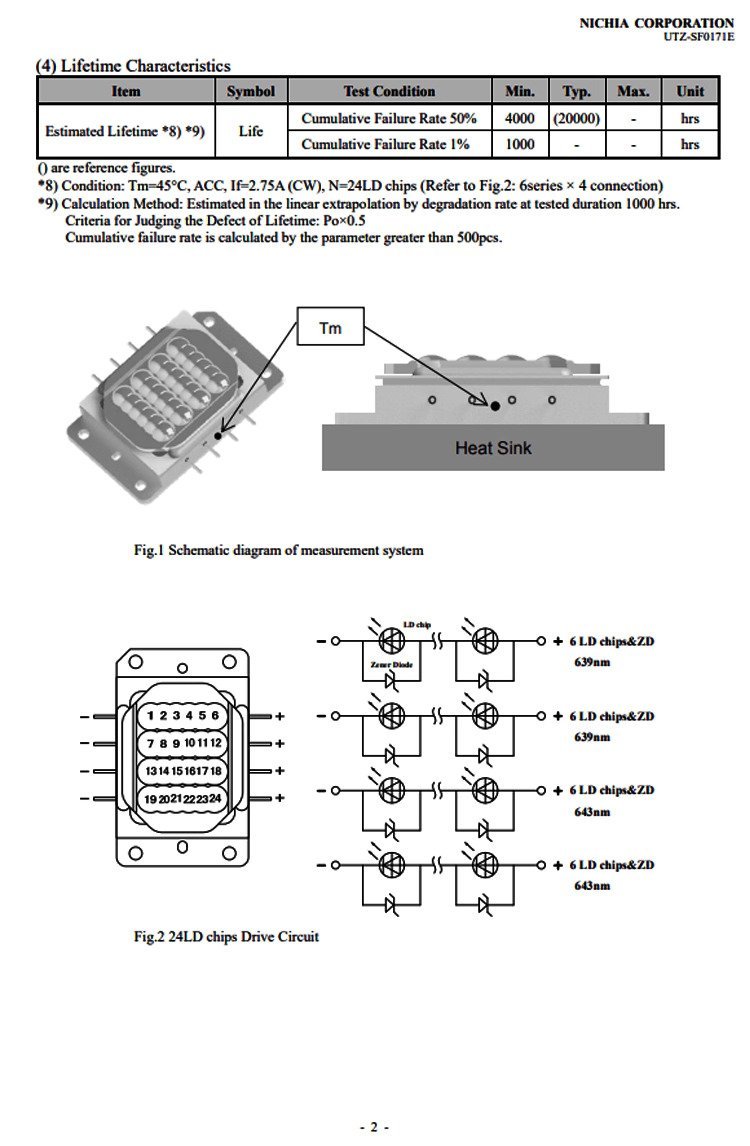

| Configuration | 6-series x 4-parallel |
| Drive Current | < 3.5 A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 55°C |
| Optical Output Power | 43W |
| Wavelength | 639nm, 643nm |
| Voltage | 46V to 56V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Nichia Laser Diode Applications
The NICHIA NURM31 is widely used in:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
