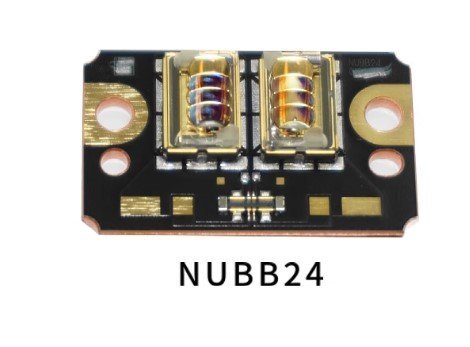

NUBB24 Laser Diode Array – Product Overview
The NICHIA NUBB24 Laser Diode Array Bank is a high-power blue laser source module delivering 44W output at 455nm. It features a 4-series × 2-parallel configuration with 8 collimated beams. Ideal for precise optical performance in high-intensity laser projectors, TVs, engraving, stage lighting, and scientific applications.
NUBB24 Specifications
| Product Name and Model | Nichia NUBB24 Laser Diode Array Bank |
|---|---|
| Beams | 8 collimated beams |

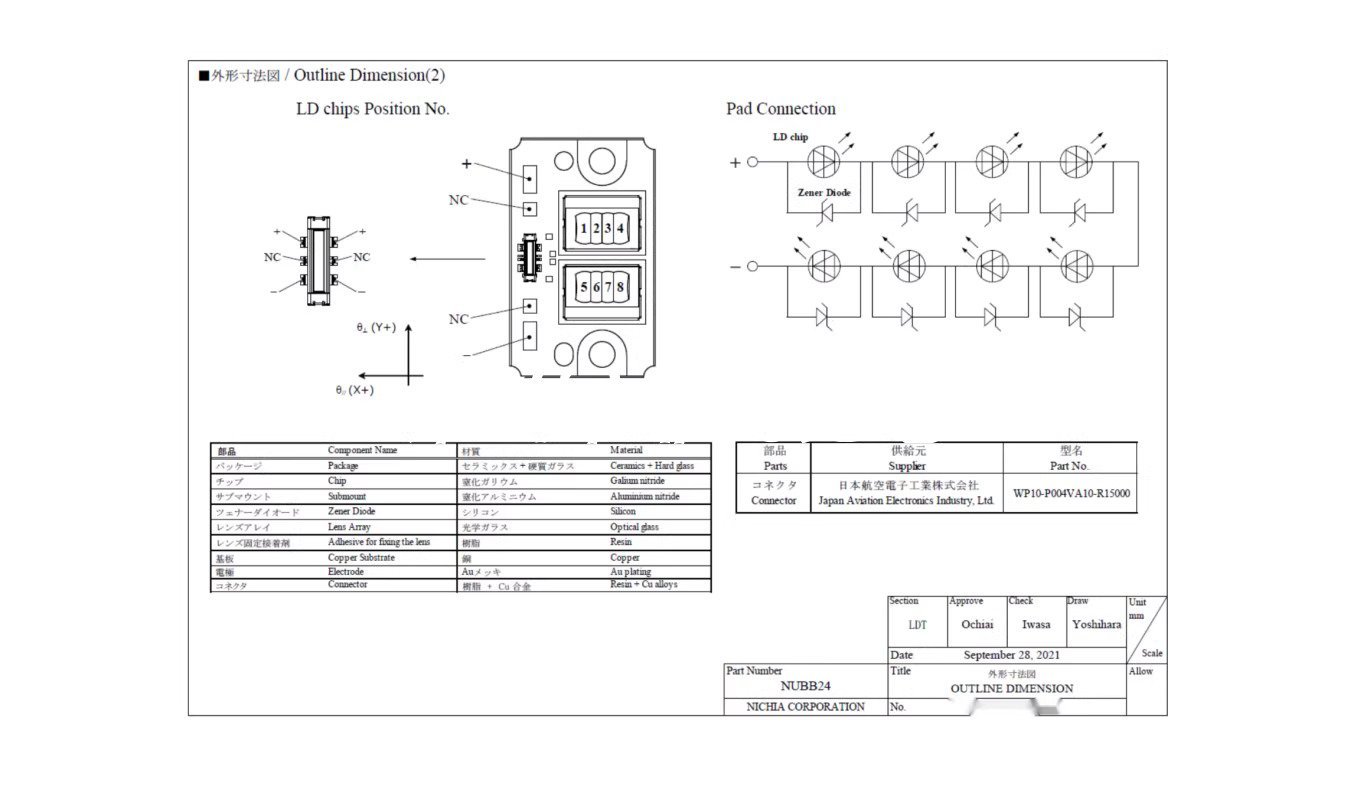

| Configuration | 4-series × 2-parallel |
| Drive Current | < 3.5A |
| Optical Output Power | 44W |
| Wavelength | 455nm |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Nichia Laser Light Source Applications
The NICHIA NUBB24 is widely used in:
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
