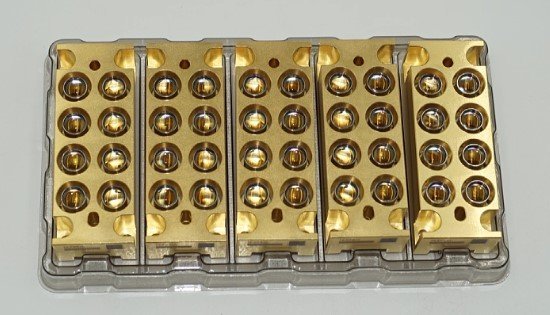

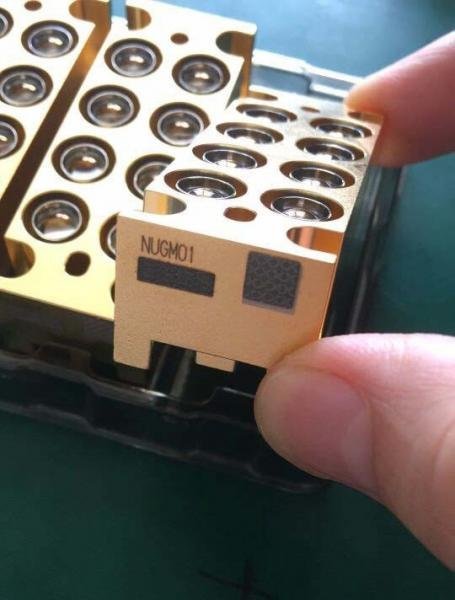

NUGM01 Laser Diode Bank – Product Overview
The NICHIA NUGM01 Green Laser Unit is a high-power multi-emitter green laser diode bank delivering 8W output at 520nm. It features 8 collimated beams designed for stable and precise optical performance. Ideal for high-intensity laser projectors & TVs, engraving, stage lighting, and scientific applications.
NUGM01 Specifications
| Product Name and Model | Nichia NUGM01 Green Laser Unit |
|---|---|
| Beams | 8 collimated beams |
| Configuration | 8 series |
| Drive Current | < 2A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 65°C |
| Optical Output Power | 8W |
| Wavelength | 520nm |
| Voltage | 32V to 43V |
| Lifespan | > 20,000 hours |
| Origin | Japan |
Nichia Laser Diode Applications
- Laser projectors & laser TVs
- Laser positioning systems
- Stage & event lighting
- Laser engraving & marking
- Automotive fog lamps
- Laser landmarks & beam shows
- High-power flashlights
- Fingerprint forensic analysis
- Medical & beauty devices
